Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT RADIO RECEIVER ASSY
    1. Disconnect the connector from the radio receiver assy.
    2. Check continuity between terminals at each condition, as shown in the chart.
      Fig 1: Inspecting Radio Receiver Assy
      G01423415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      Fig 2: Tester Connection Table
      G01423416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: CHECK AND REPLACE RADIO RECEIVER ASSY
    2. NG: GO TO NEXT STEP.
  2. INSPECT STEERING PAD SWITCH RH (AU2, EAU)

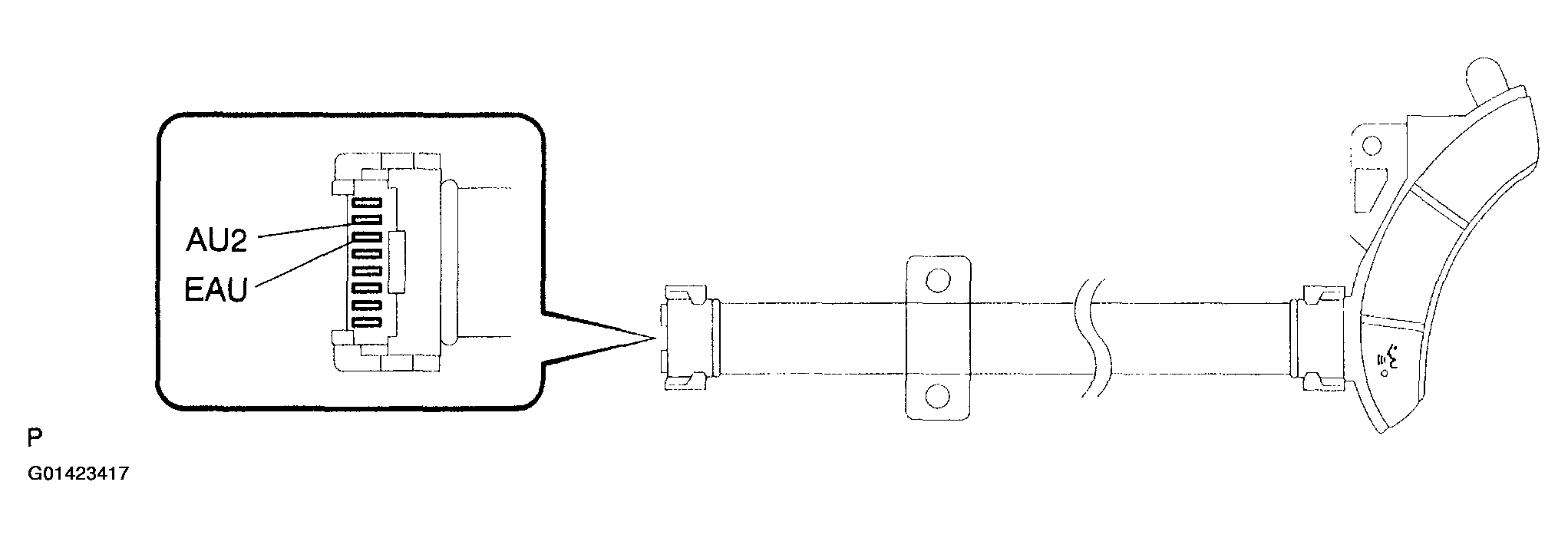

    Fig 3: Inspecting Steering Pad Switch RH (AU2, EAU)
    G01423417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check continuity between terminals at each condition, as shown in the chart.

      Standard:

      Fig 4: Tester Connection Table
      G01423418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: CHECK AND REPLACE STEERING PAD SWITCH RH
    2. OK: GO TO NEXT STEP.
  3. INSPECT STEERING PAD SWITCH LH (AU2, EAU)

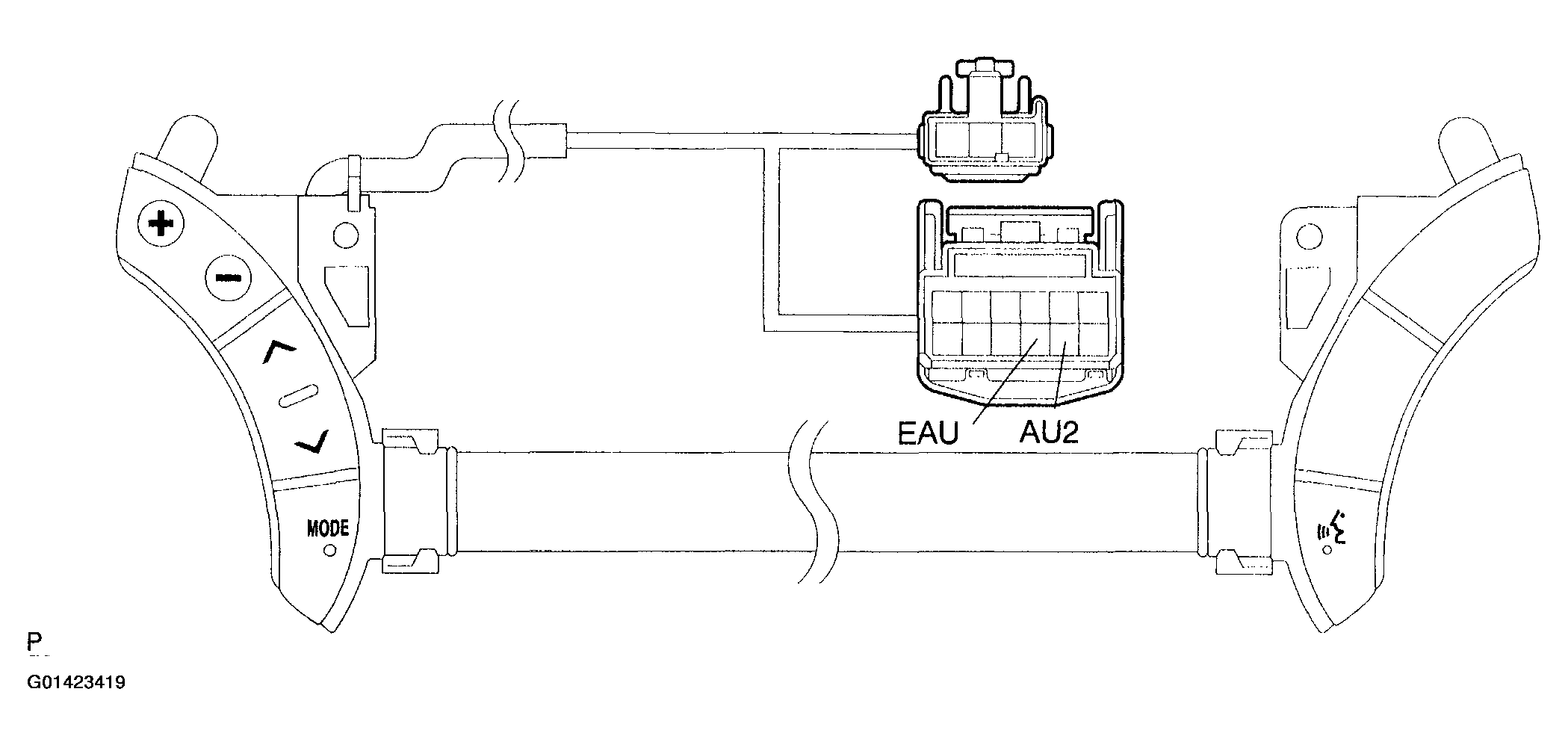

    Fig 5: Inspecting Steering Pad Switch LH (AU2, EAU)
    G01423419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check continuity between terminals at each condition, as shown in the chart.

      Standard:

      Fig 6: Tester Connection Table
      G01423420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: CHECK AND REPLACE STEERING PAD SWITCH LH
    2. OK: GO TO NEXT STEP.
  4. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSY - RADIO RECEIVER ASSY)
    1. Disconnect the spiral cable sub-assy and radio receiver assy.
      1. Check continuity of harness.
        Fig 7: Identifying Radio Receiver Assy
        G01423421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard:

        Fig 8: Tester Connection Table
        G01423422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Check short in harness.

        Standard:

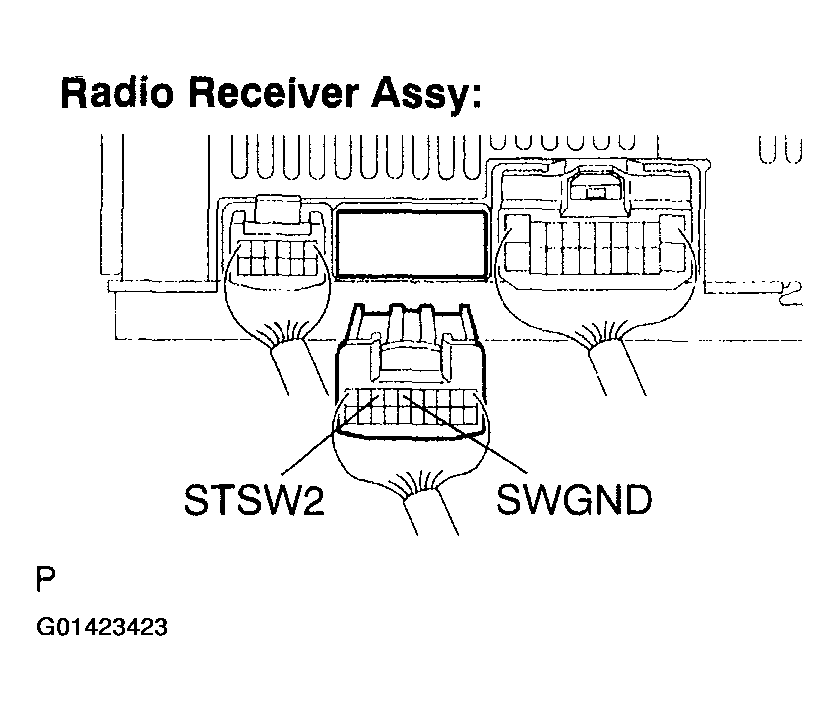

        Fig 9: Identifying Spiral Cable Side Terminal
        G01423423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Fig 10: Tester Connection Table
        G01423424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: GO TO NEXT STEP.
  5. CHECK AND REPLACE SPIRAL CABLE SUB-ASSY
    1. OK: NORMAL
    2. NG: GO TO NEXT STEP.

      PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (  PROBLEM SYMPTOMS TABLE  )
