ECM Power Source Circuit: Wiring Diagram

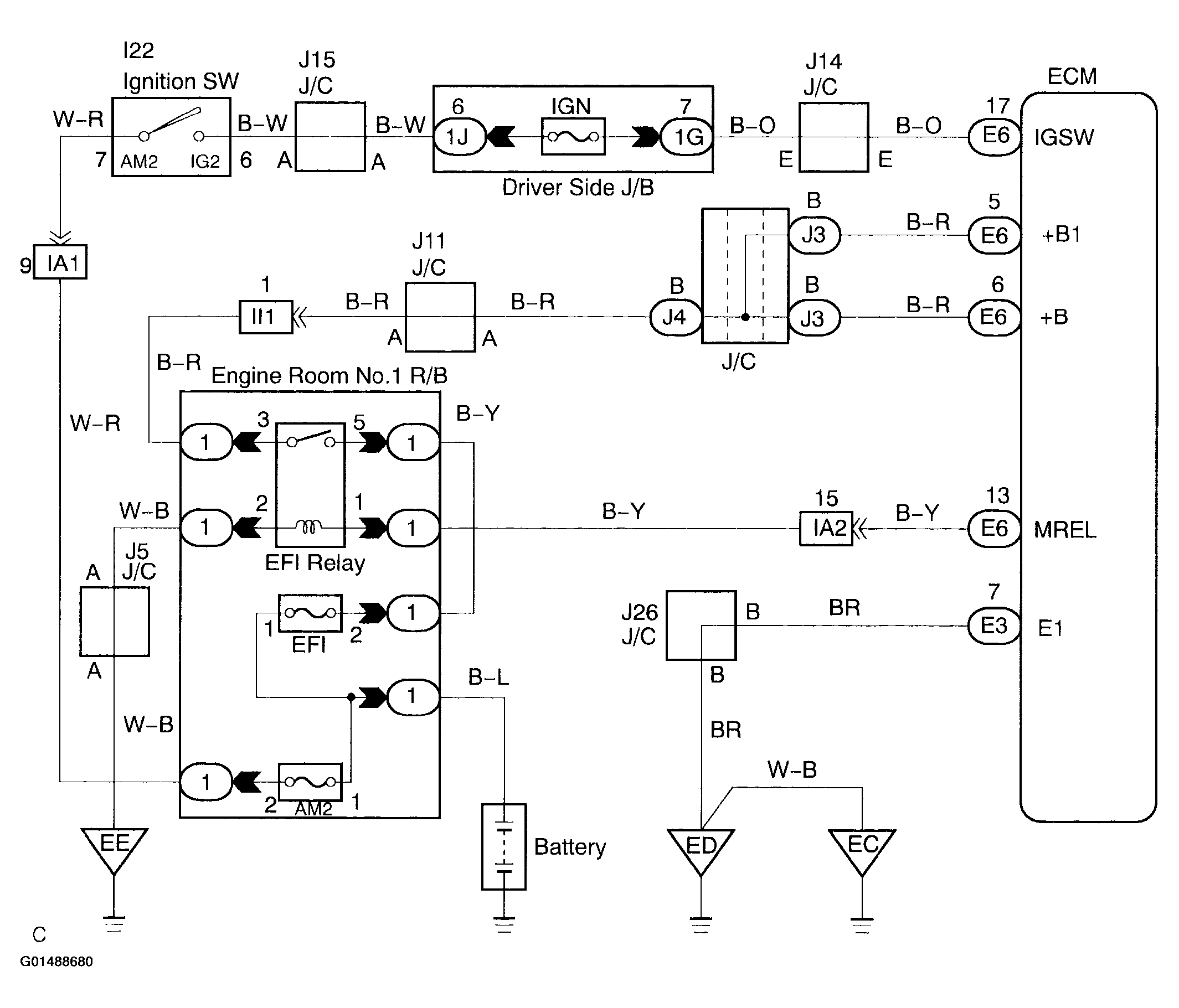

Fig 1: ECM Power Source Circuit Wiring Diagram
G01488680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
