Power Seat Control Switch Circuit: Wiring Diagram

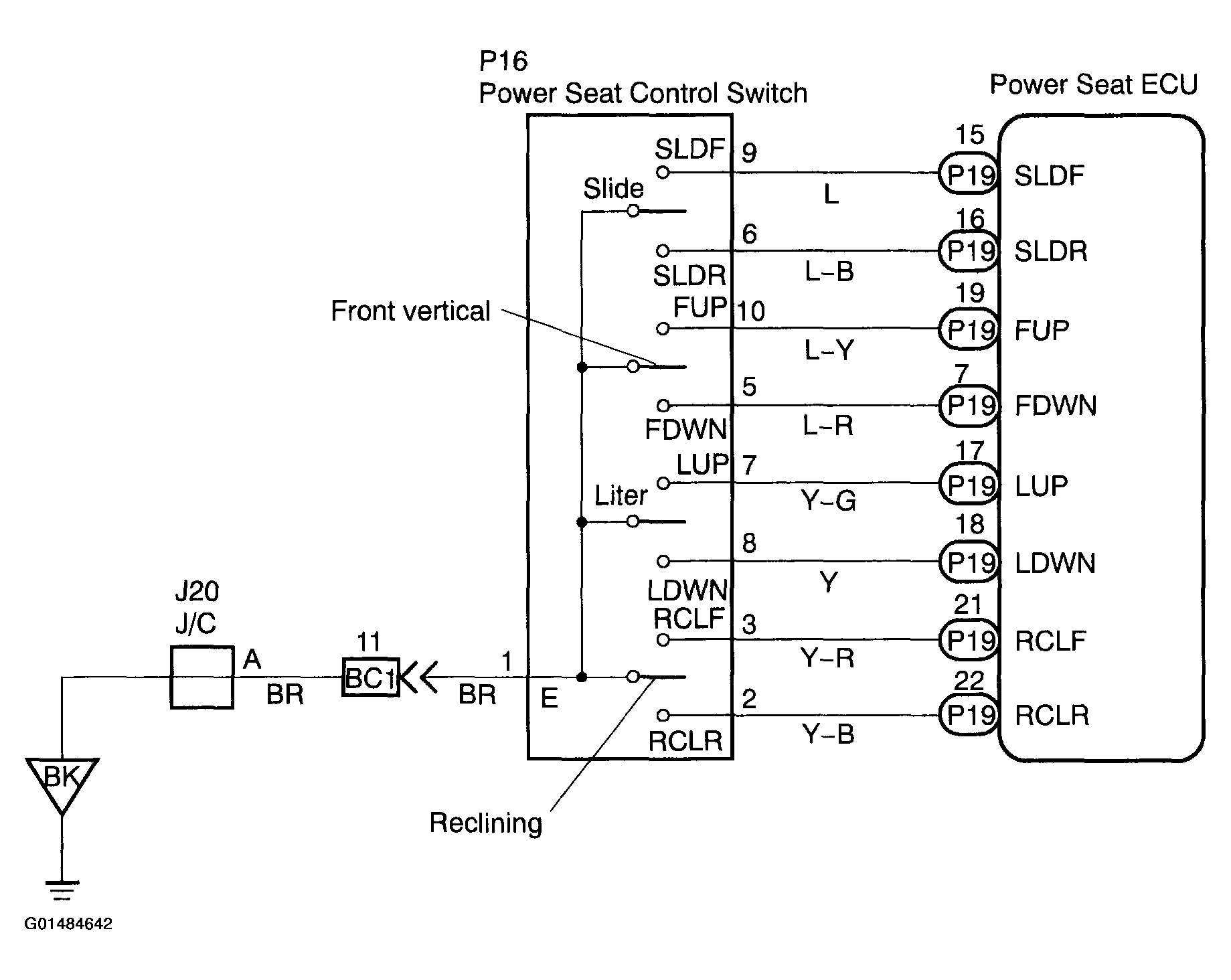

Fig 1: Power Seat Control Switch Circuit Wiring Diagram
G01484642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
