Outside Rear View Mirror: Components

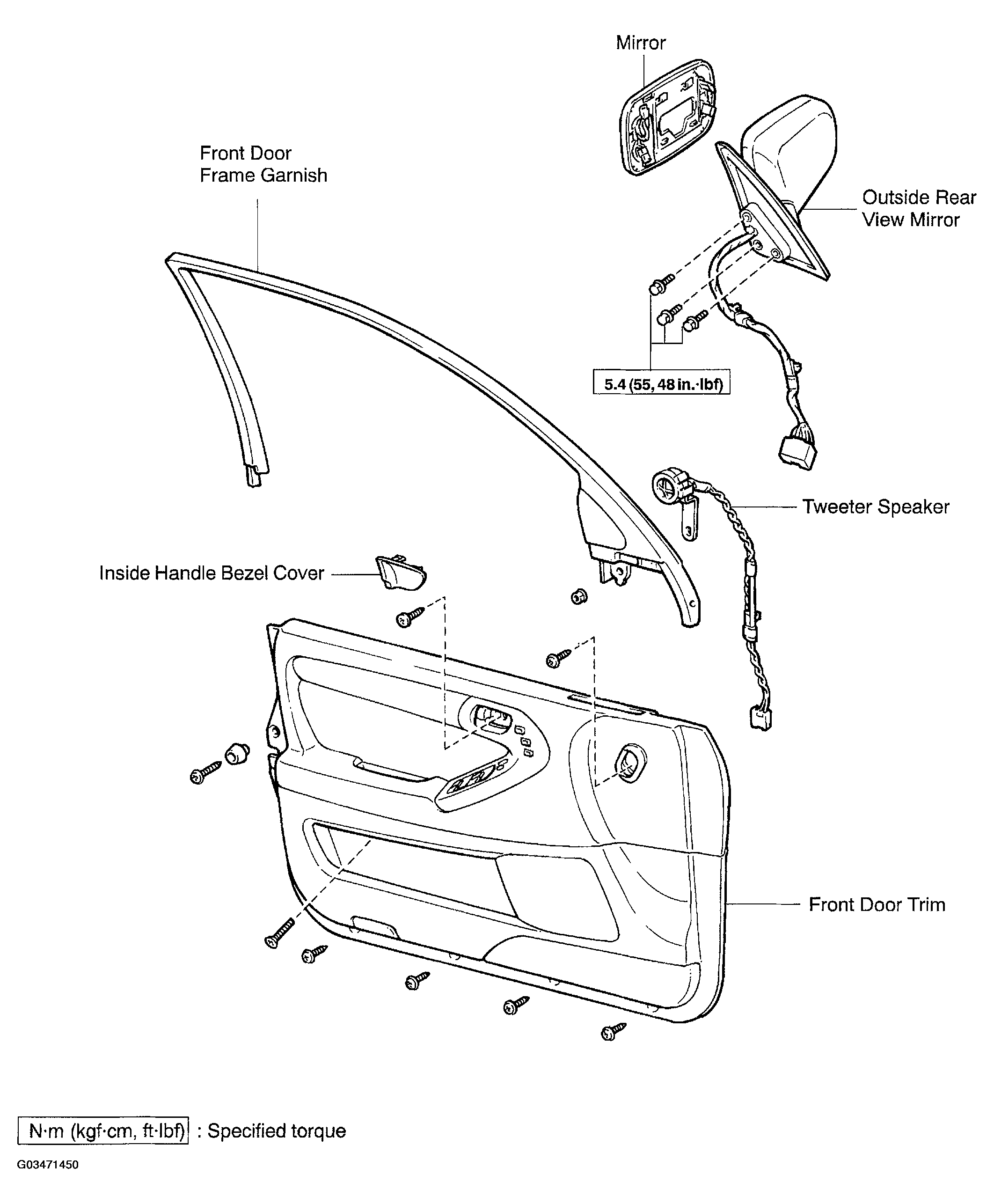

Fig 1: Identifying Rear View Mirror Components
G03471450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
