Terminals Of ECM

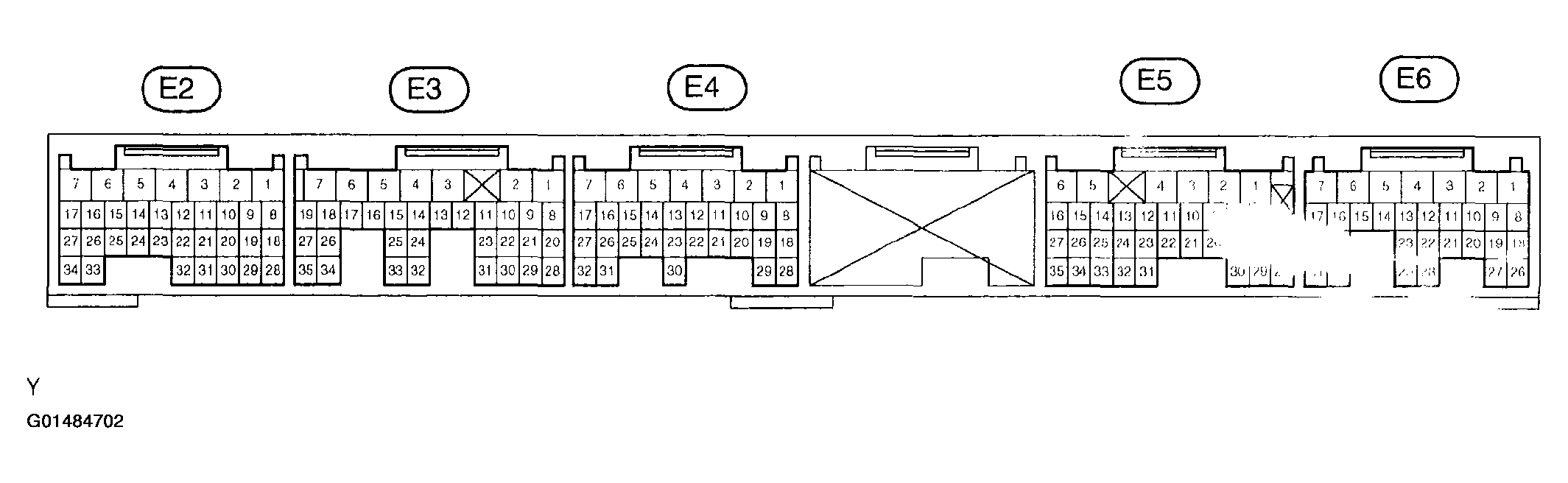

Fig 1: Identifying Terminals Of ECM
G01484702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

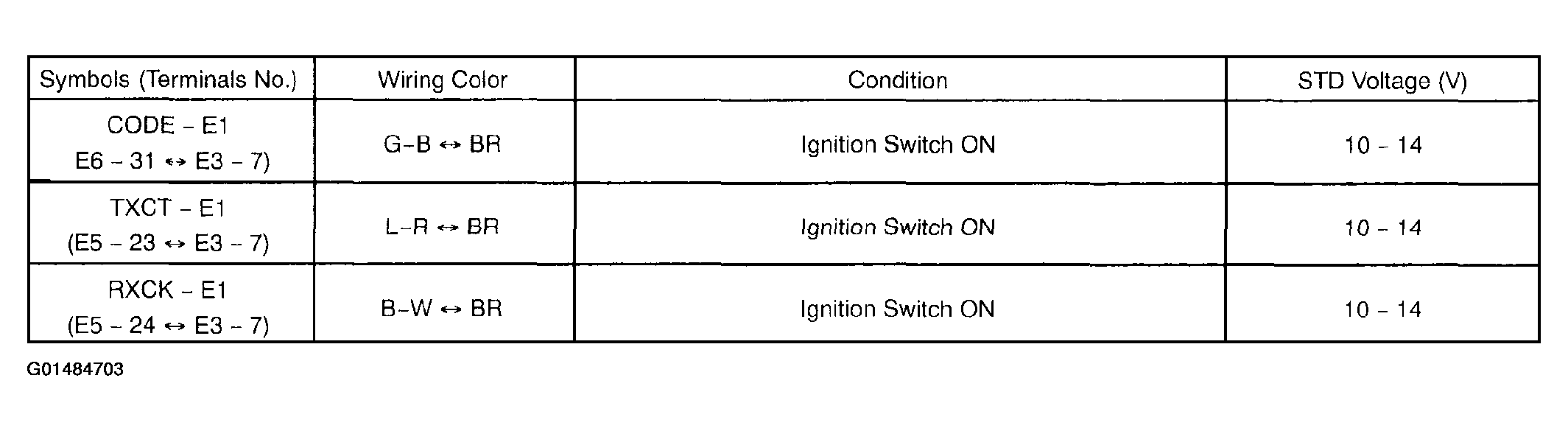

Fig 2: Symbols Specification
G01484703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
