SFI System (2JZ-GE): Injector: Components

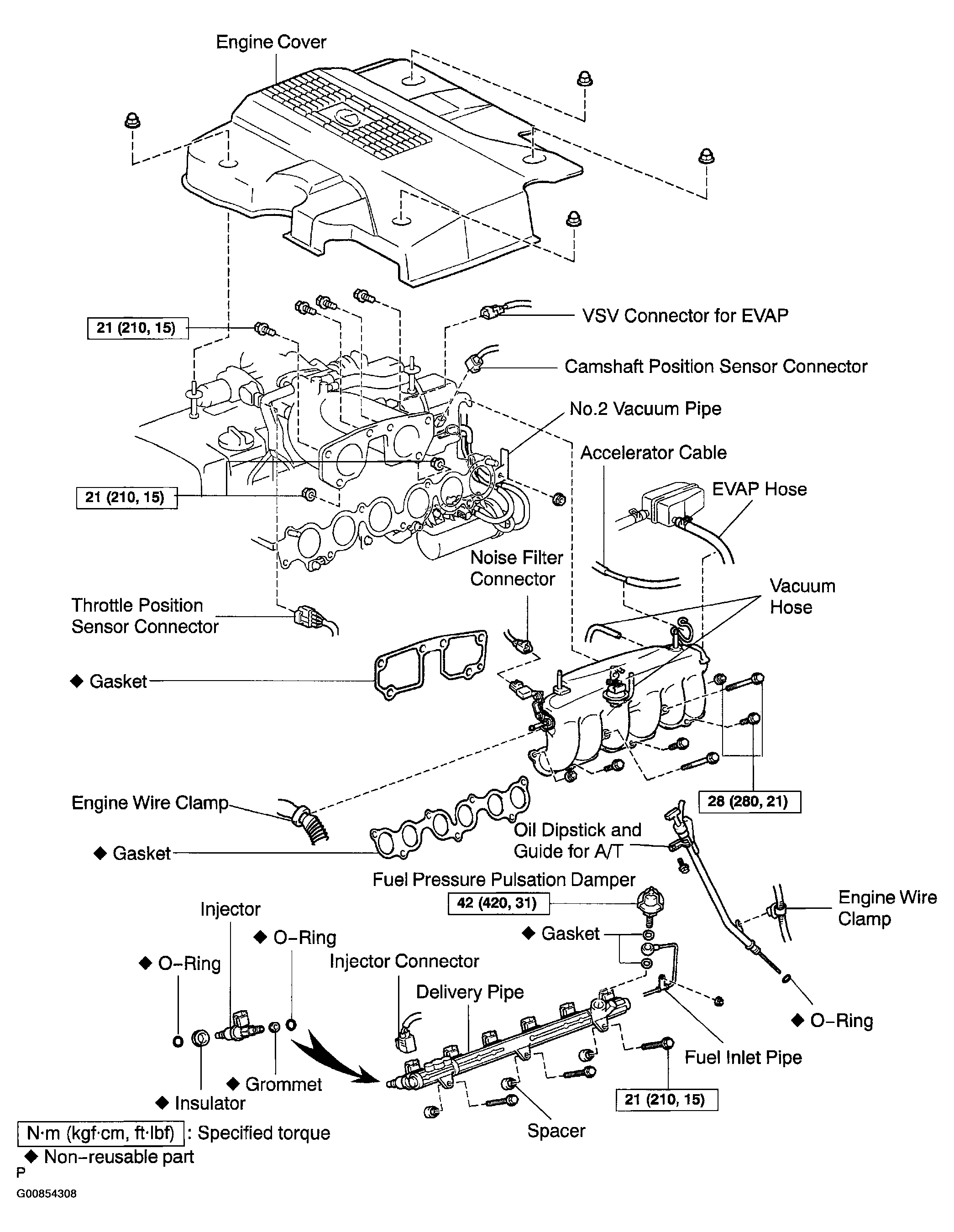

Fig 1: Identifying Injector Components
G00854308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
