Power source circuit: Wiring Diagram

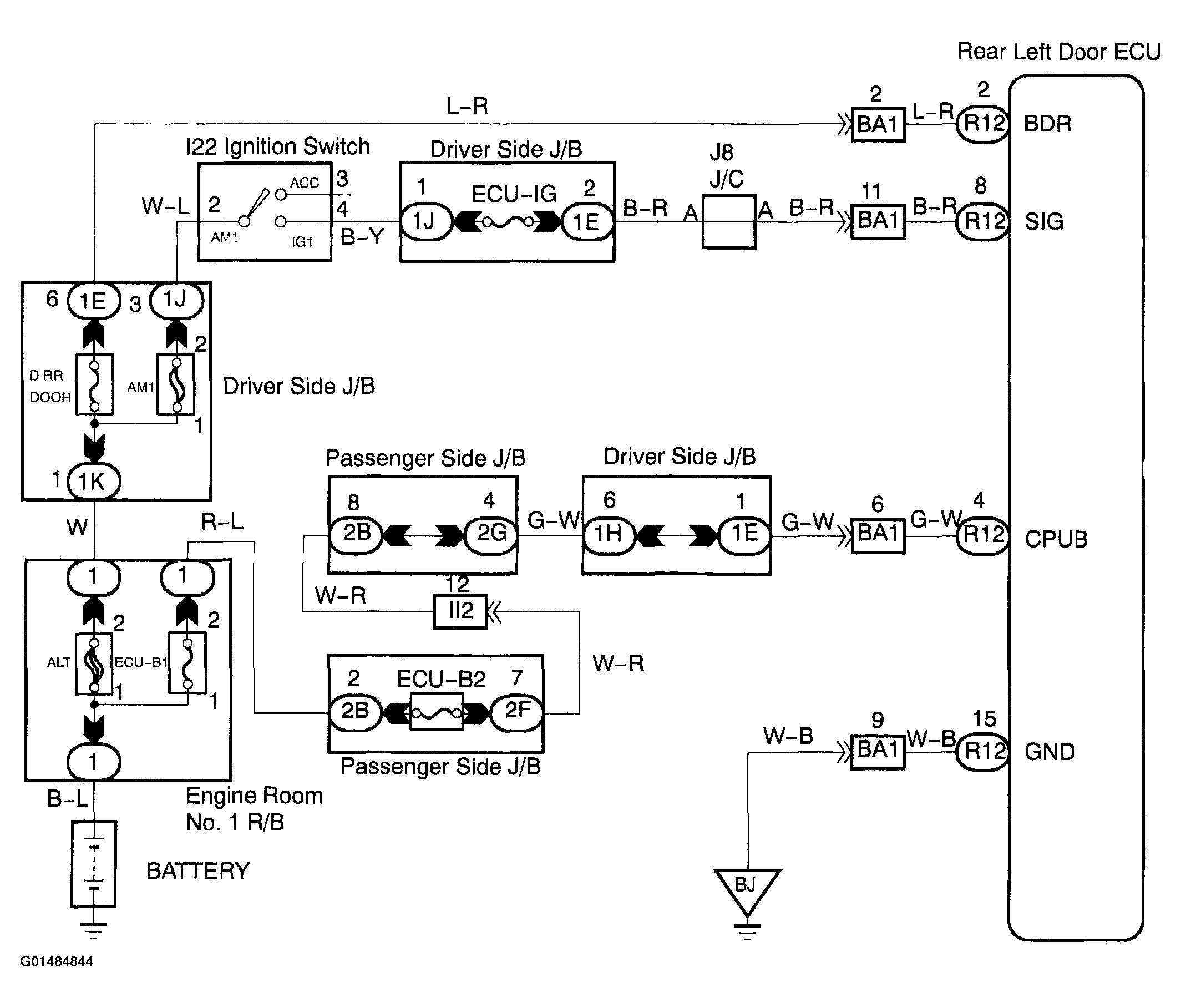

Fig 1: Power Source Circuit Wiring Diagram
G01484844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
