System Diagram

The configuration of the electronic control system in the U151E automatic transaxles is as shown in the following chart.

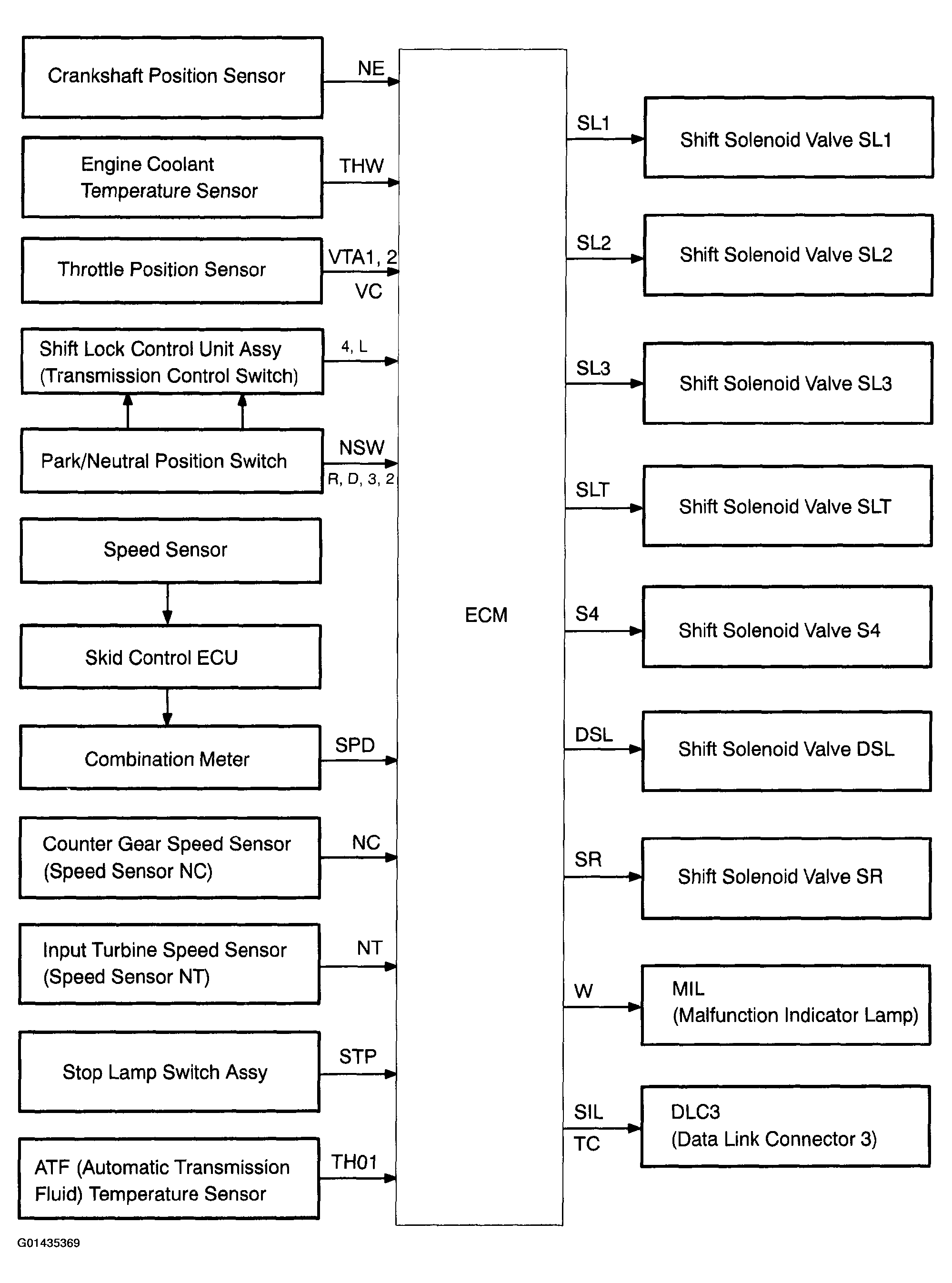

Fig 1: Identifying System Diagram Of Electronic Control System
G01435369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
