Torque Specification

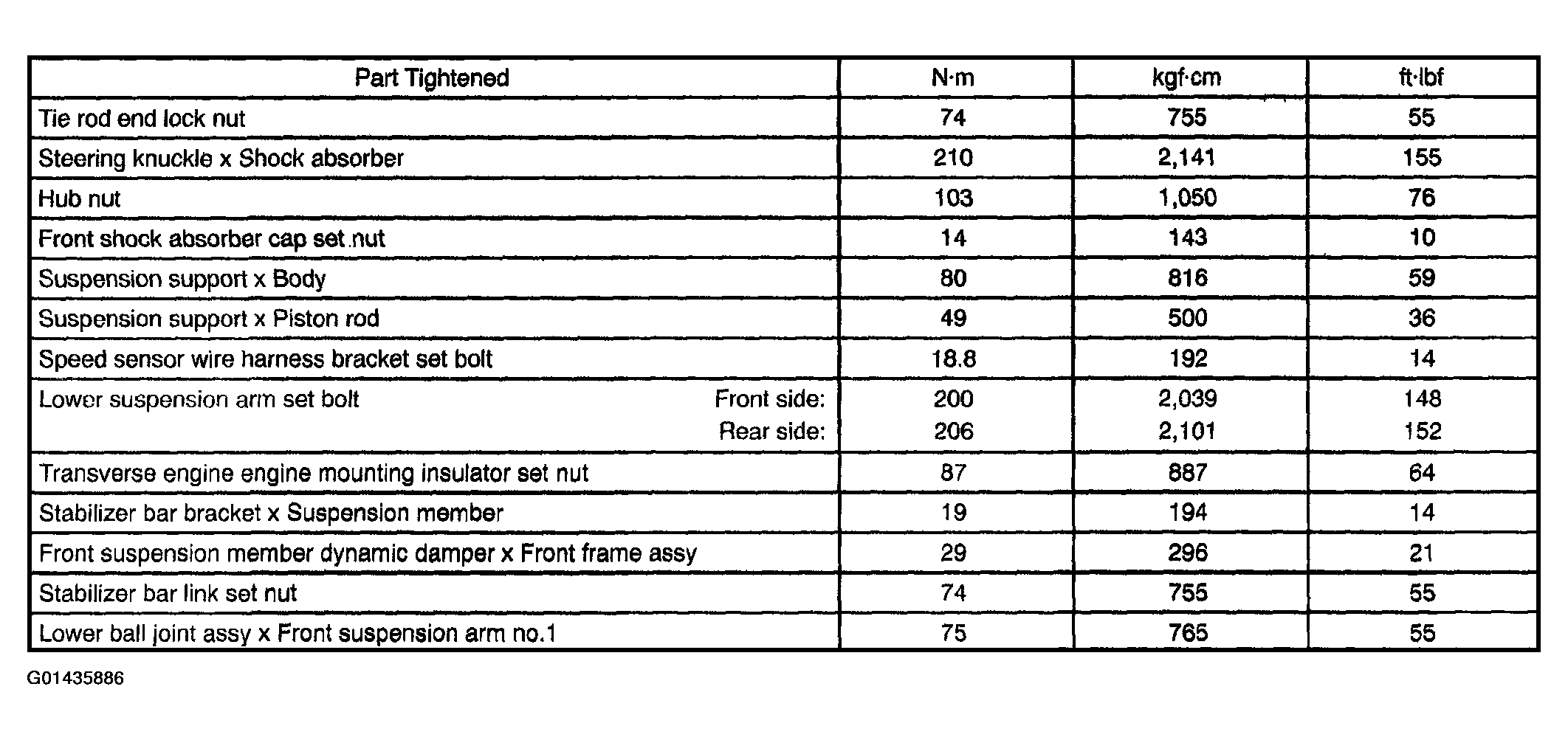

Fig 1: Front Suspension System Torque Specification Chart
G01435886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
