Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUSE (ECU-B FUSE)
    1. Remove the ECU-B fuse from the engine room J/B.
    2. Check for the continuity of ECU-B fuse.
    1. NG: REPLACE FUSE
    2. OK: GO TO NEXT STEP
  2. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - BATTERY)
    1. Remove the A/C amplifier with connectors being connected.
    2. Measure the voltage between terminals +B and GND of A/C amplifier.

      Standard: 10 to 14 V

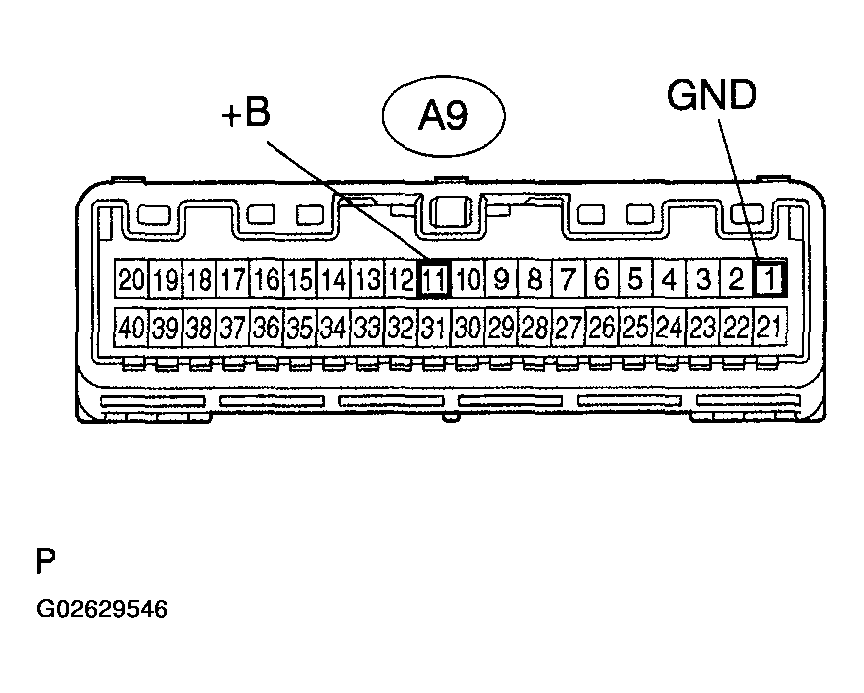

    Fig 1: Checking Harness & Connector (Air Conditioning Amplifier - Battery)
    G02629546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
