How To Determine Nut Strength

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

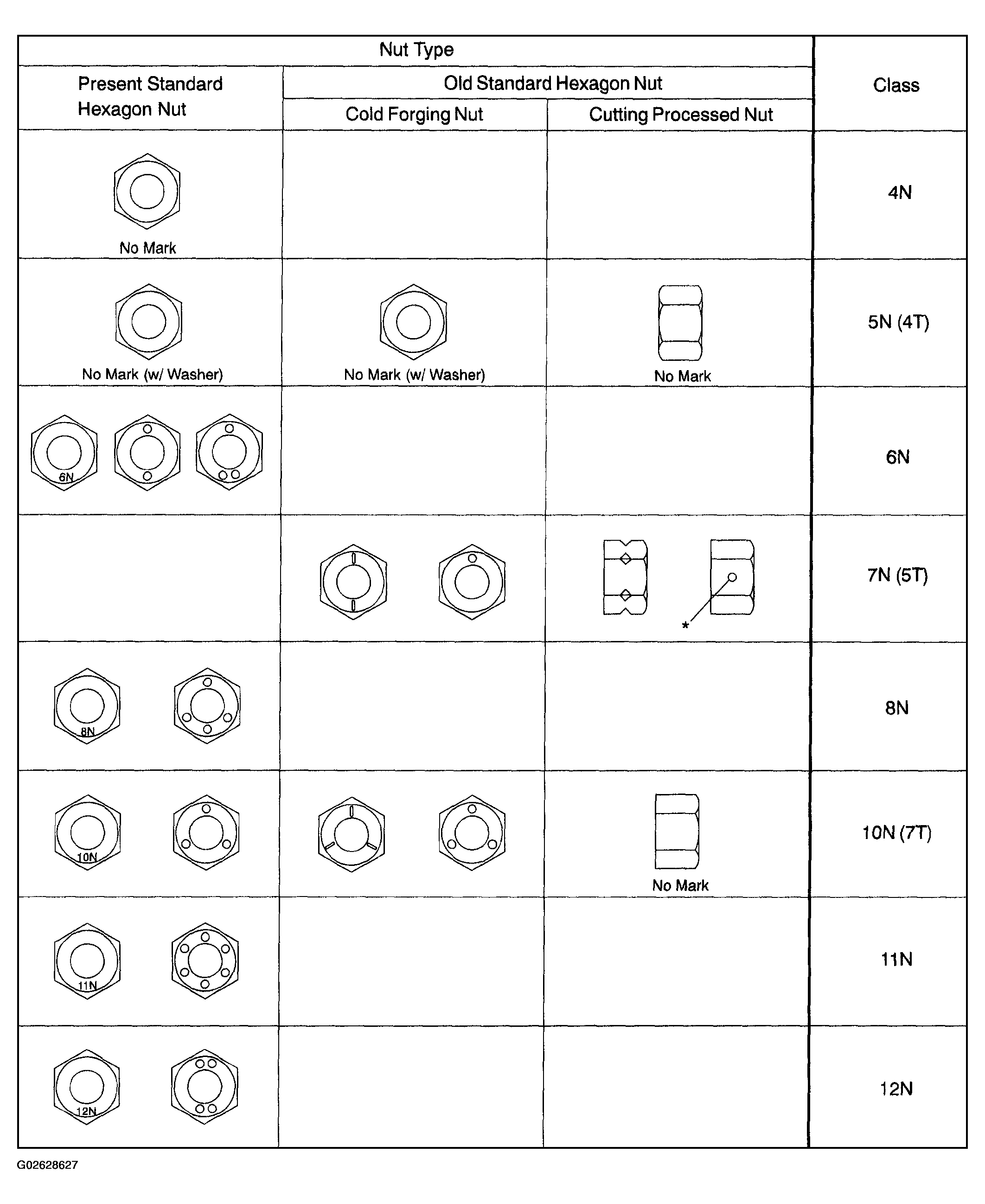

Fig 1: Nut Strength Specification Table
G02628627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the nut with the same number of the nut strength classification or the greater than the bolt strength classification number when tightening parts with a bolt and nut.

Example:
