How To Determine Bolt Strength

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

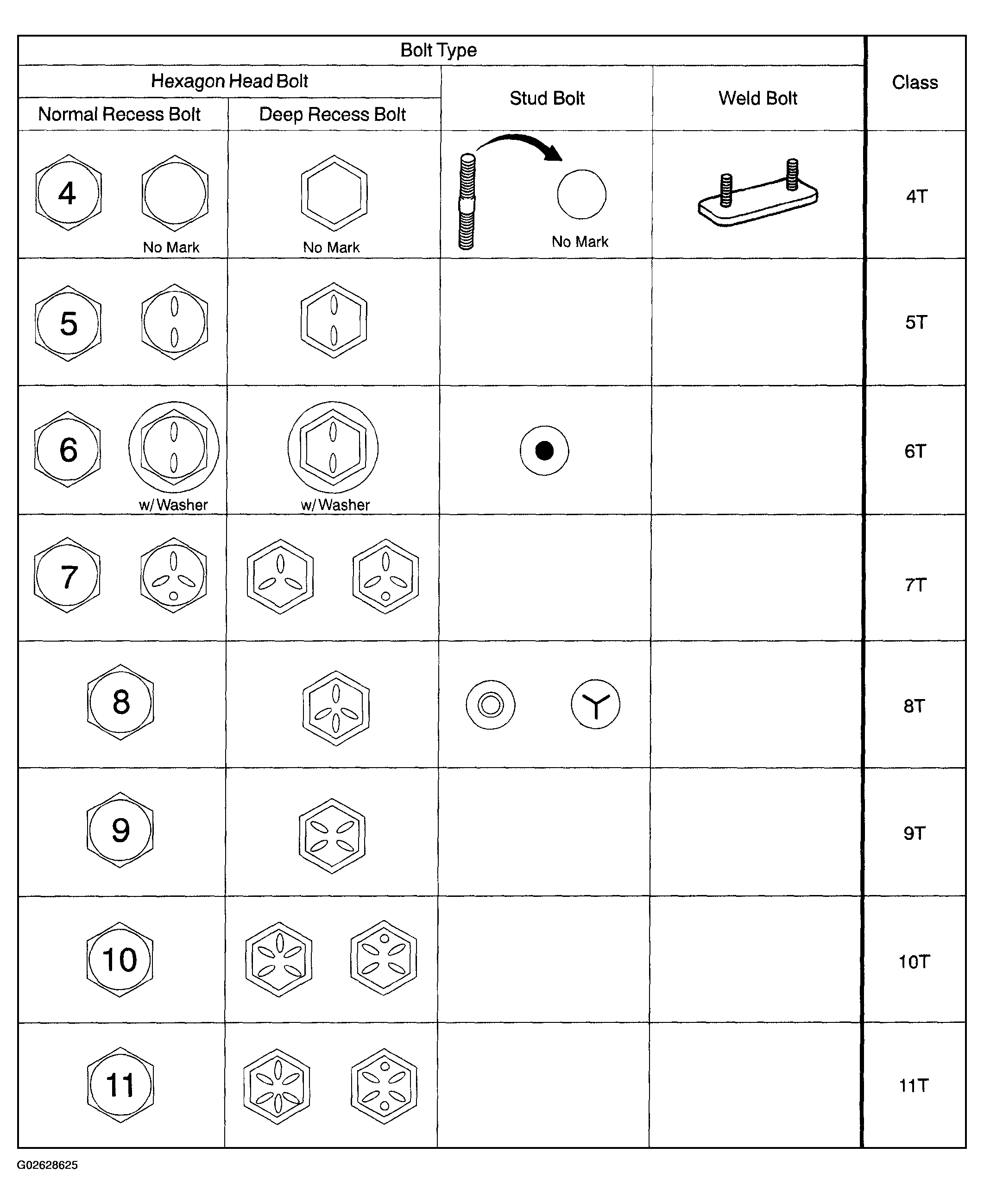

Fig 1: Standard Bolt Strength Specification Table
G02628625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
