Service Data

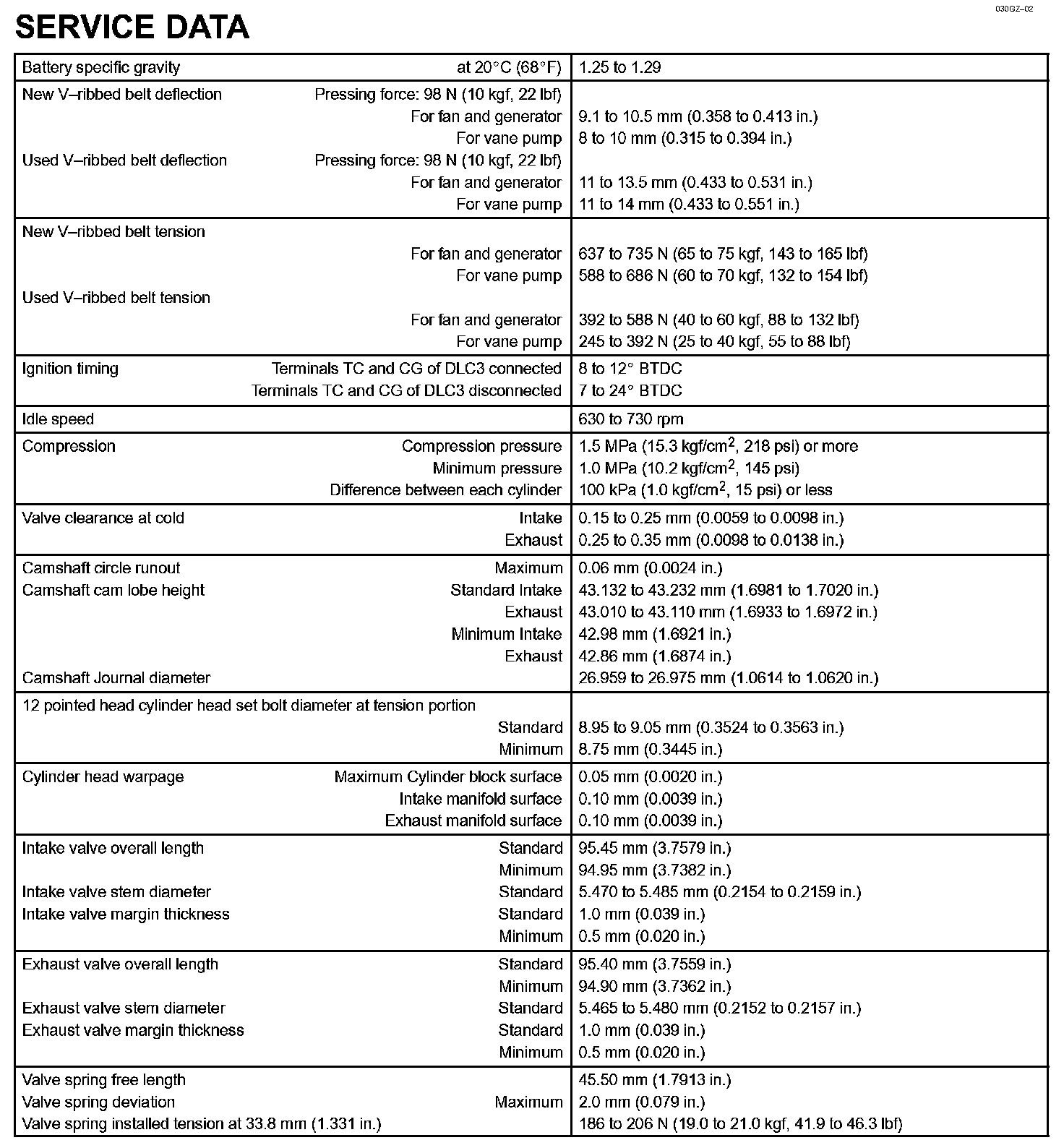

Engine Mechanical - Service Data:

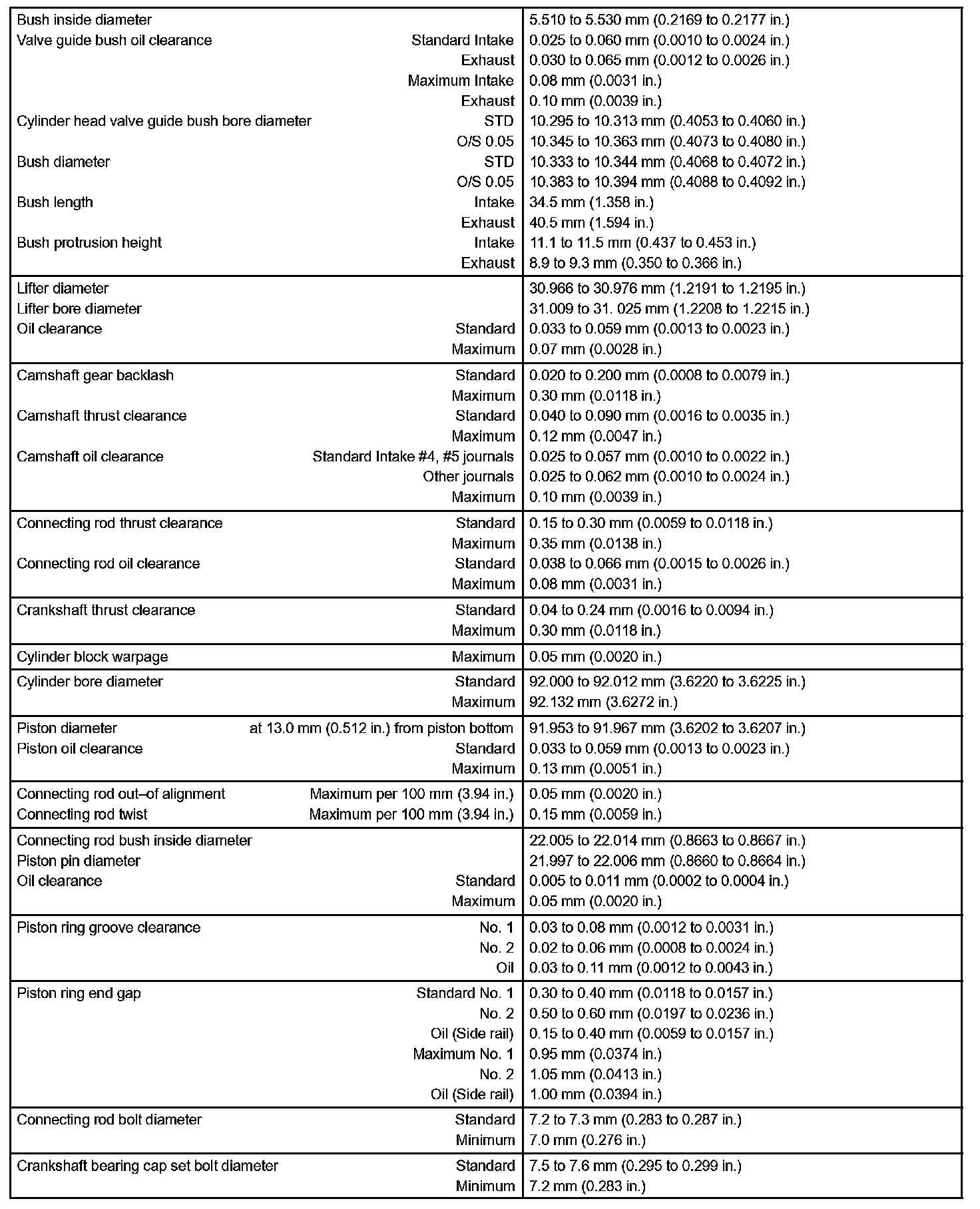

Engine Mechanical - Service Data Part 2:




Engine Mechanical - Service Data Part 3:




Intake - Service Data:
