Check CAN Bus Lines For Short Circuit

CHECK CAN BUS LINES FOR SHORT CIRCUIT

CIRCUIT DESCRIPTION




The CAN bus lines are considered to be shorted when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 Ohms.

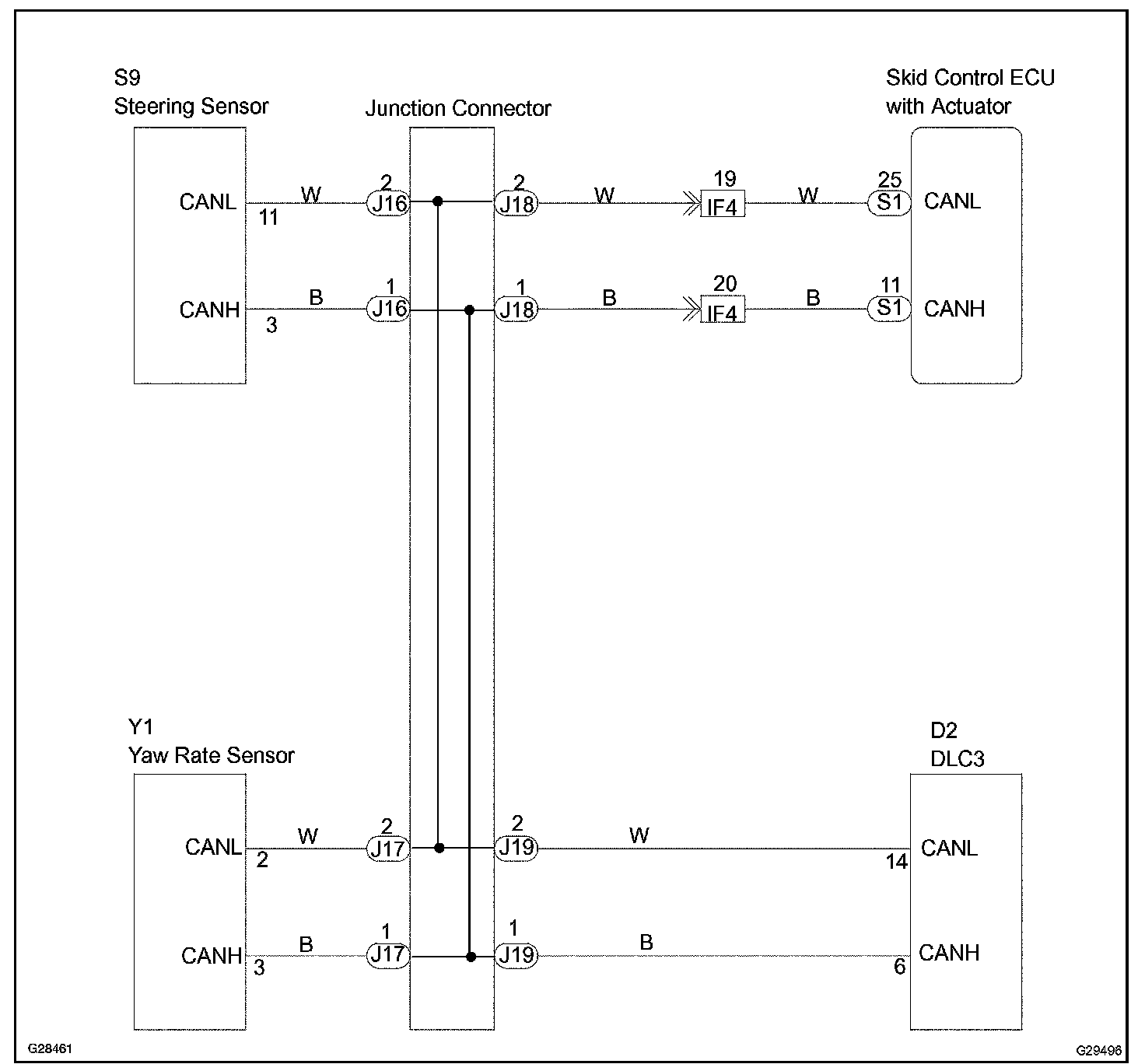

Wiring Diagram:

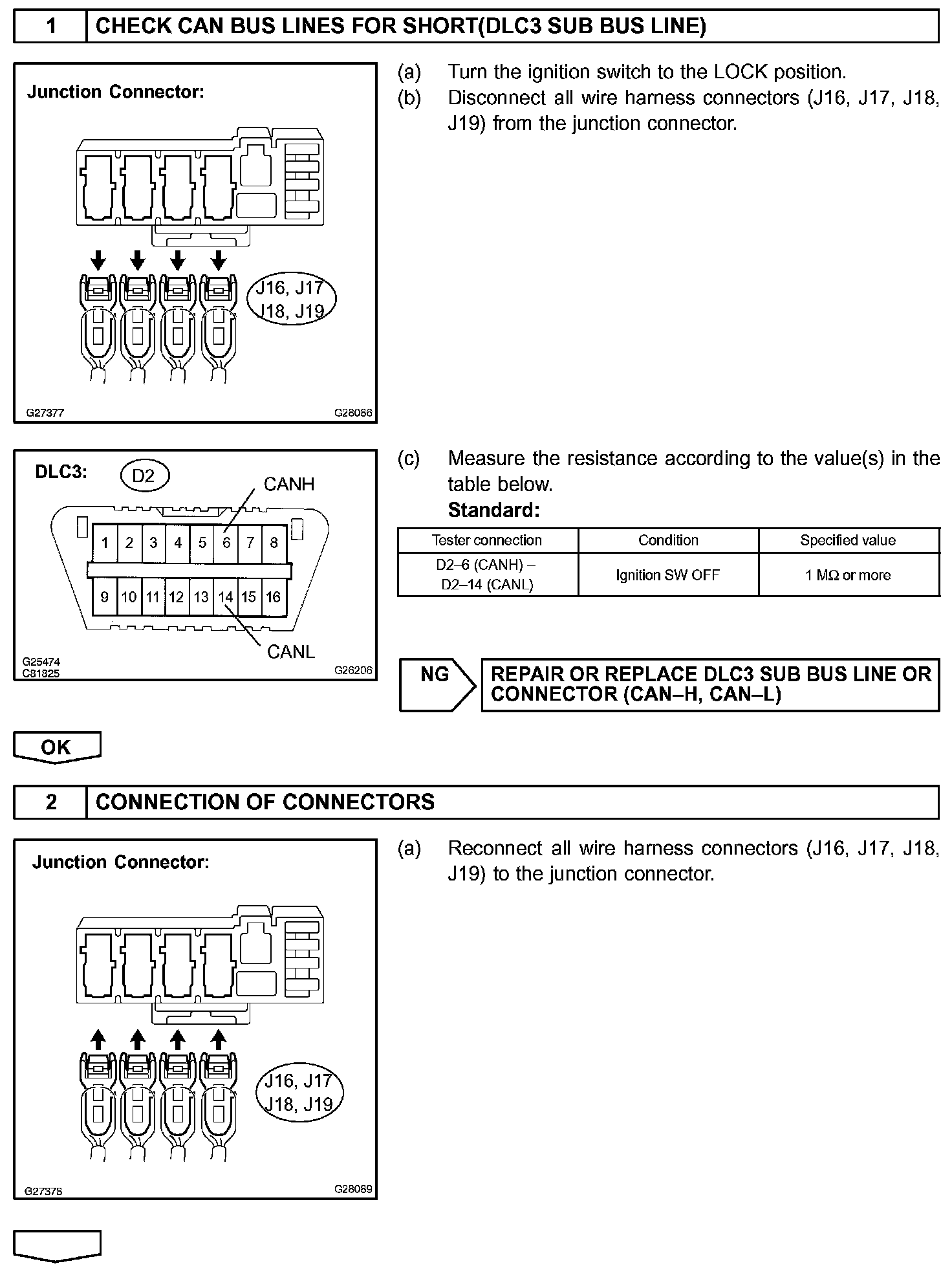

Step 1 - 2:

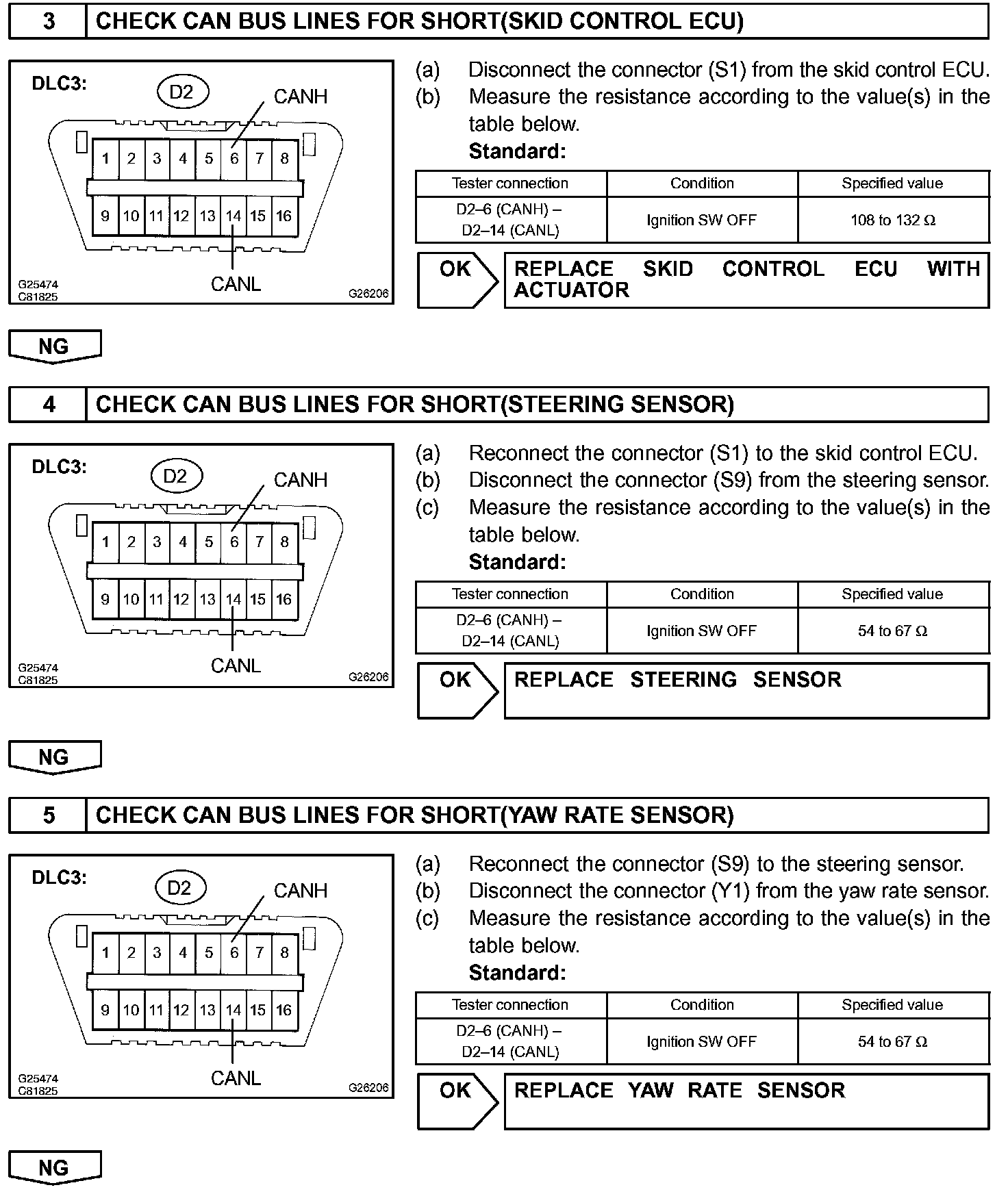

Step 3 - 5:

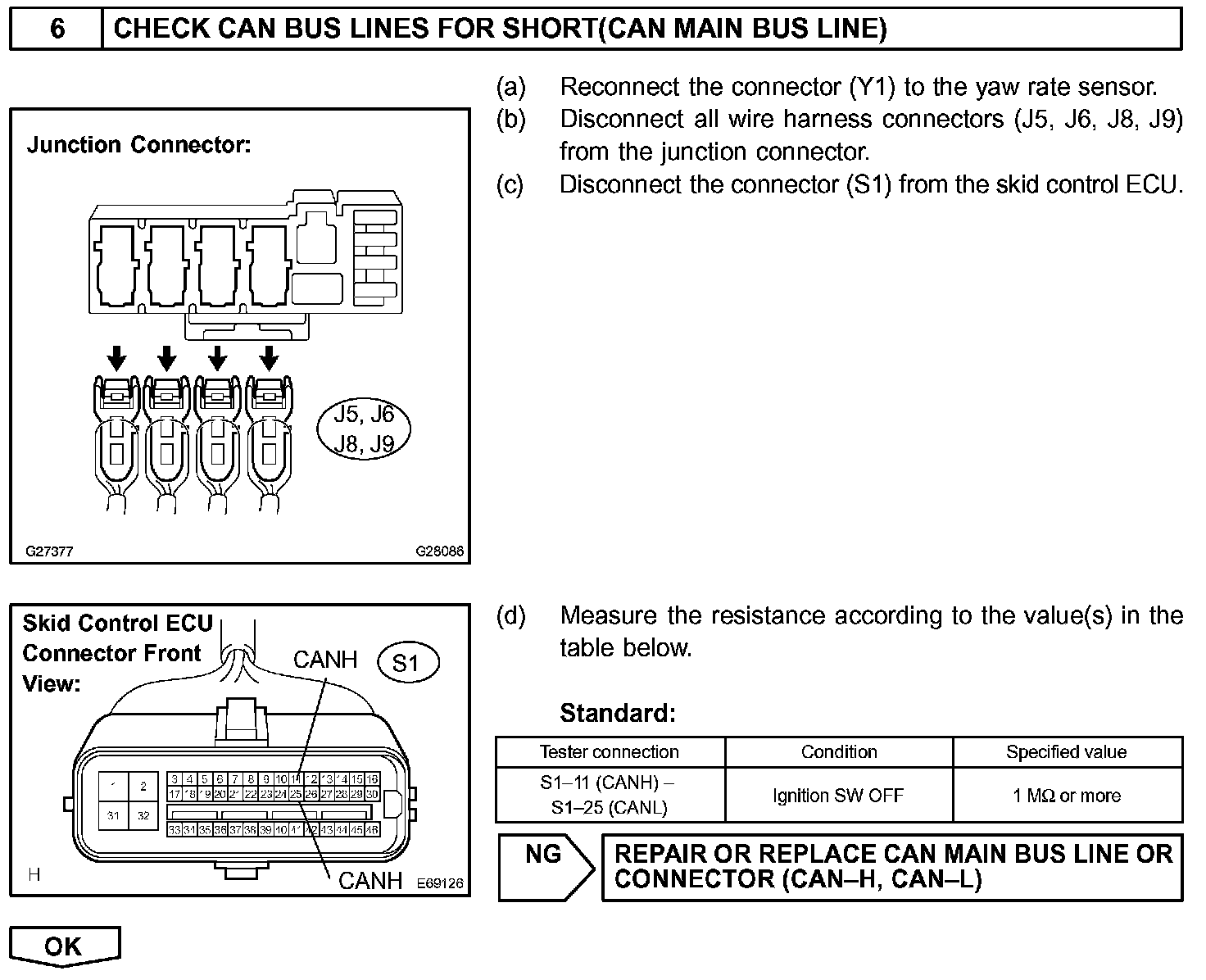

Step 6:

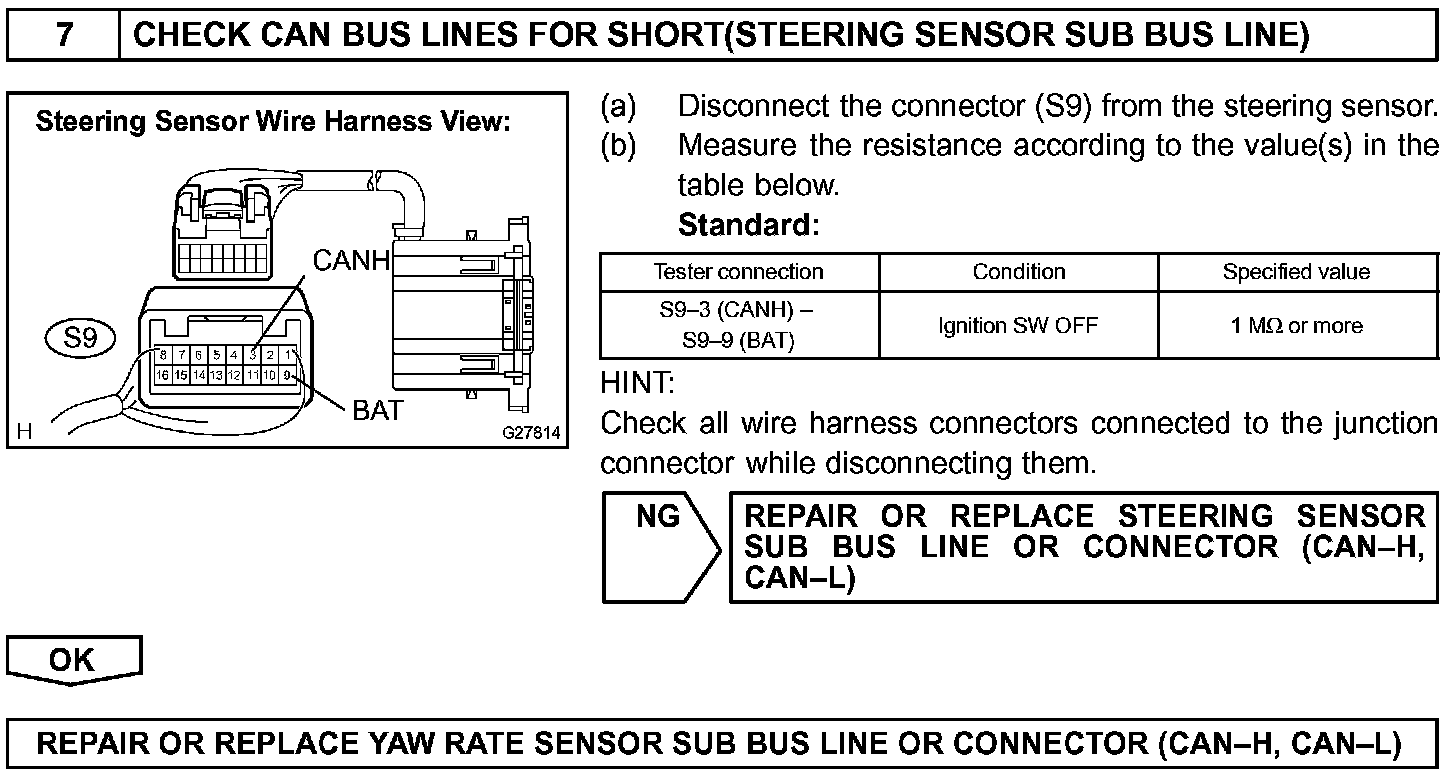

Step 7:

INSPECTION PROCEDURE
