Control Module HVAC: Testing and Inspection

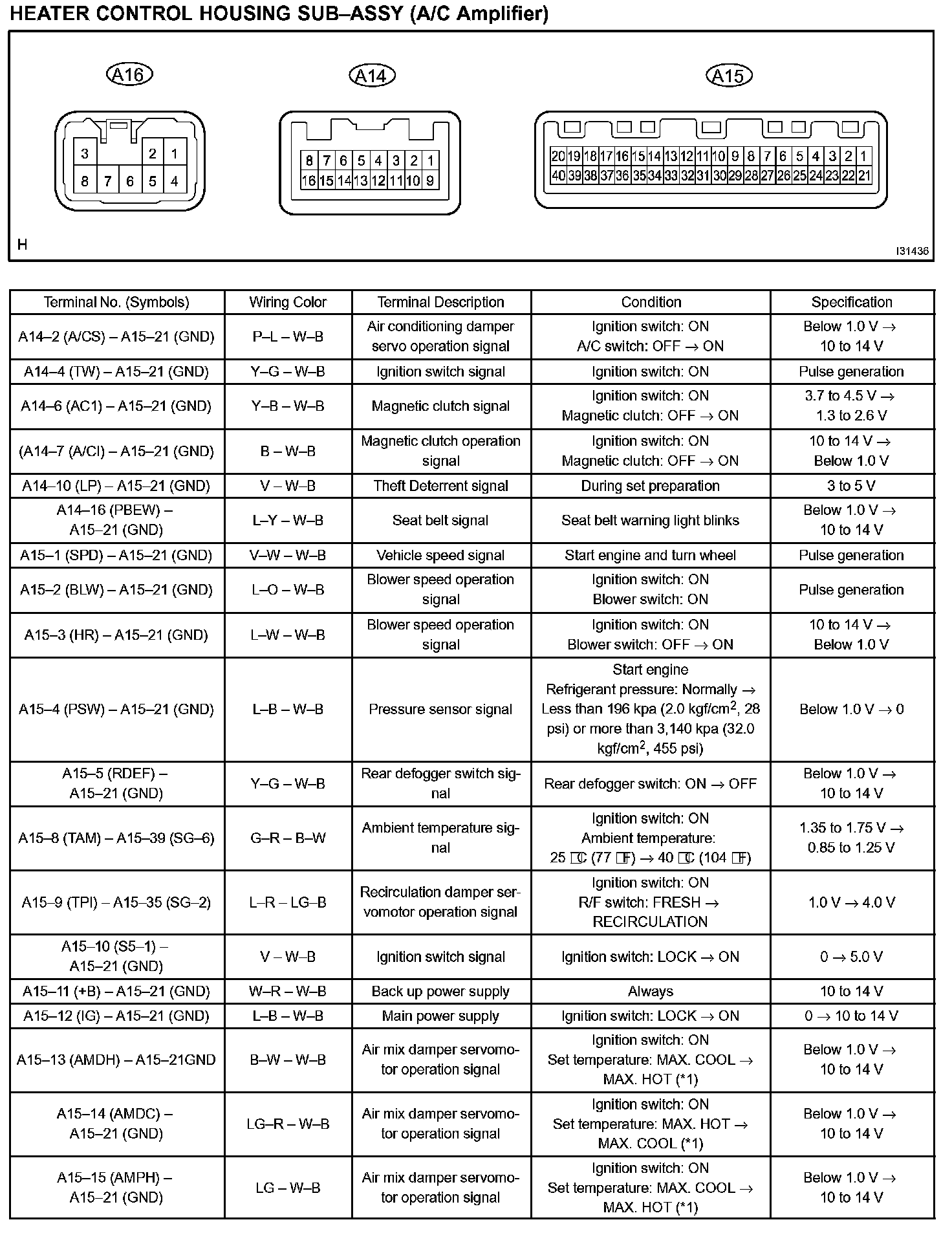

Terminals Of ECU/Pinouts - Heated Control Housing Sub-assy (A/C Amplifier) Part 1:

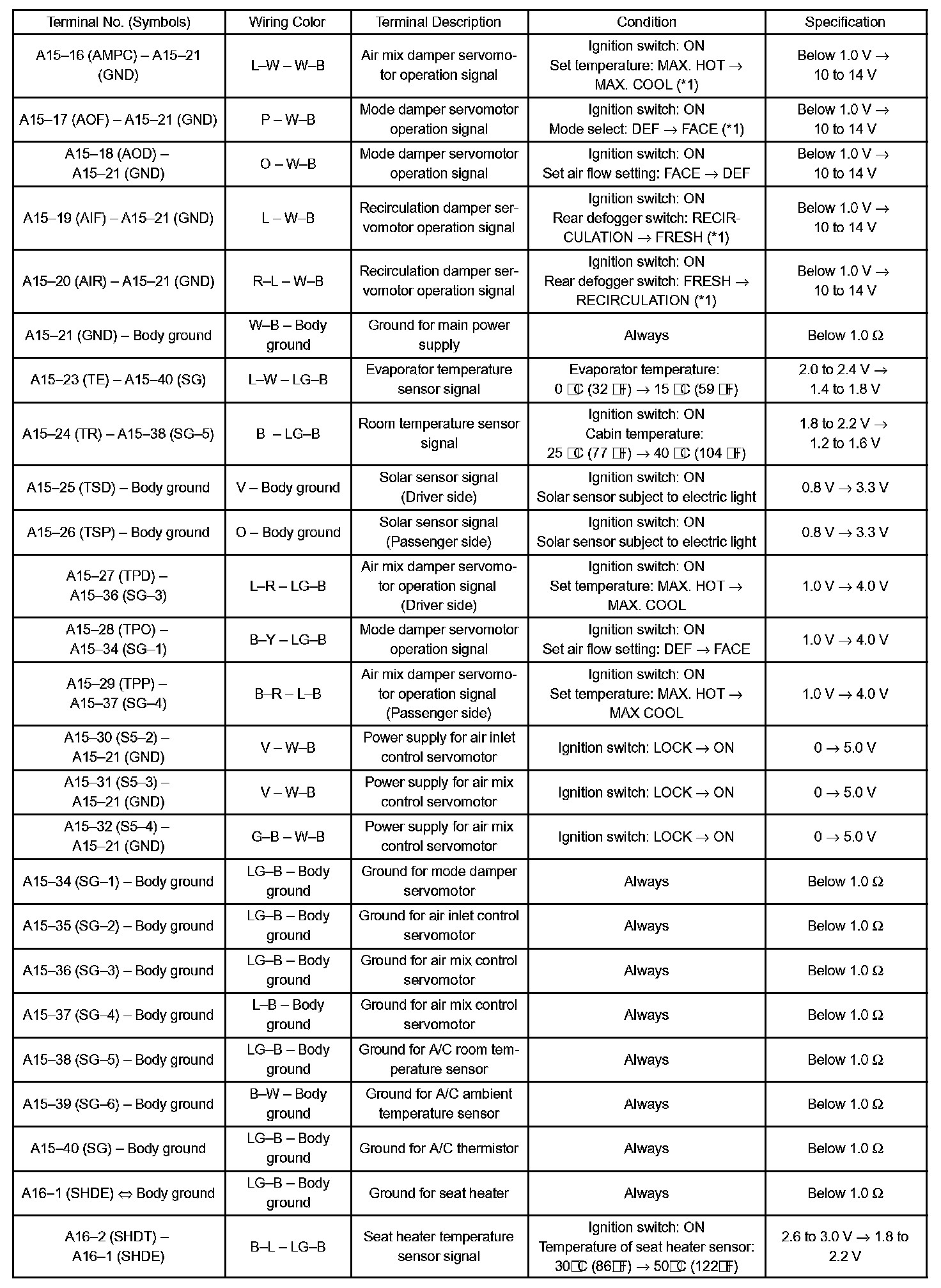

Terminals Of ECU/Pinouts - Heated Control Housing Sub-assy (A/C Amplifier) Part 2:

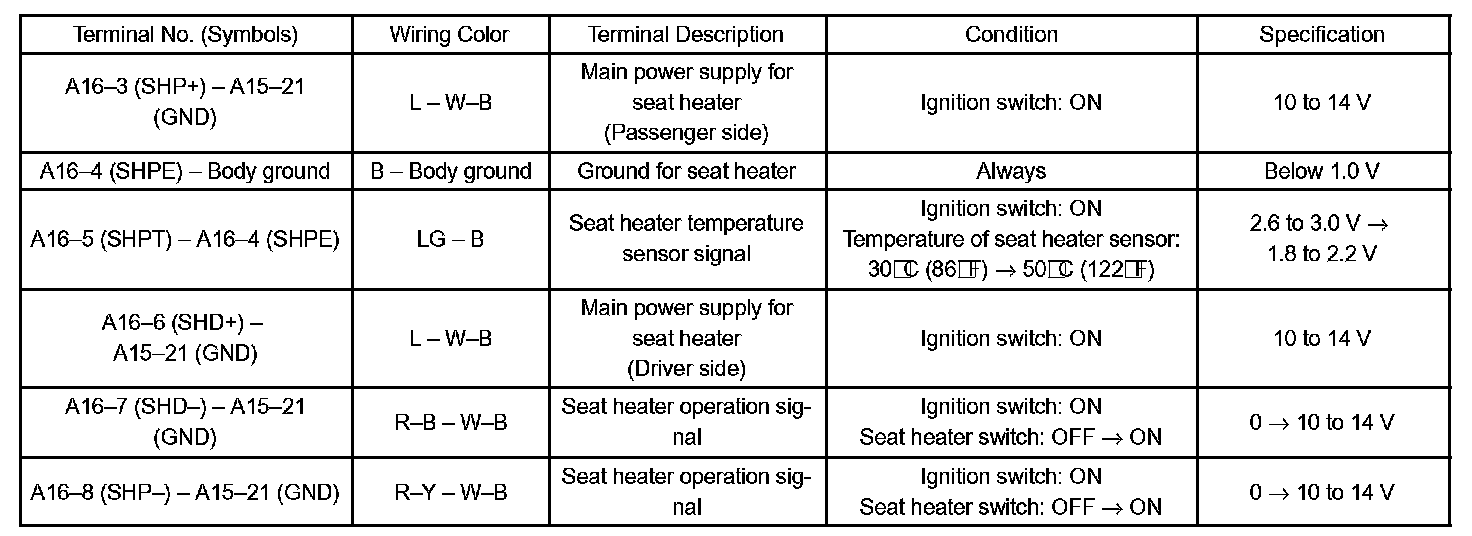

Terminals Of ECU/Pinouts - Heated Control Housing Sub-assy (A/C Amplifier) Part 3:

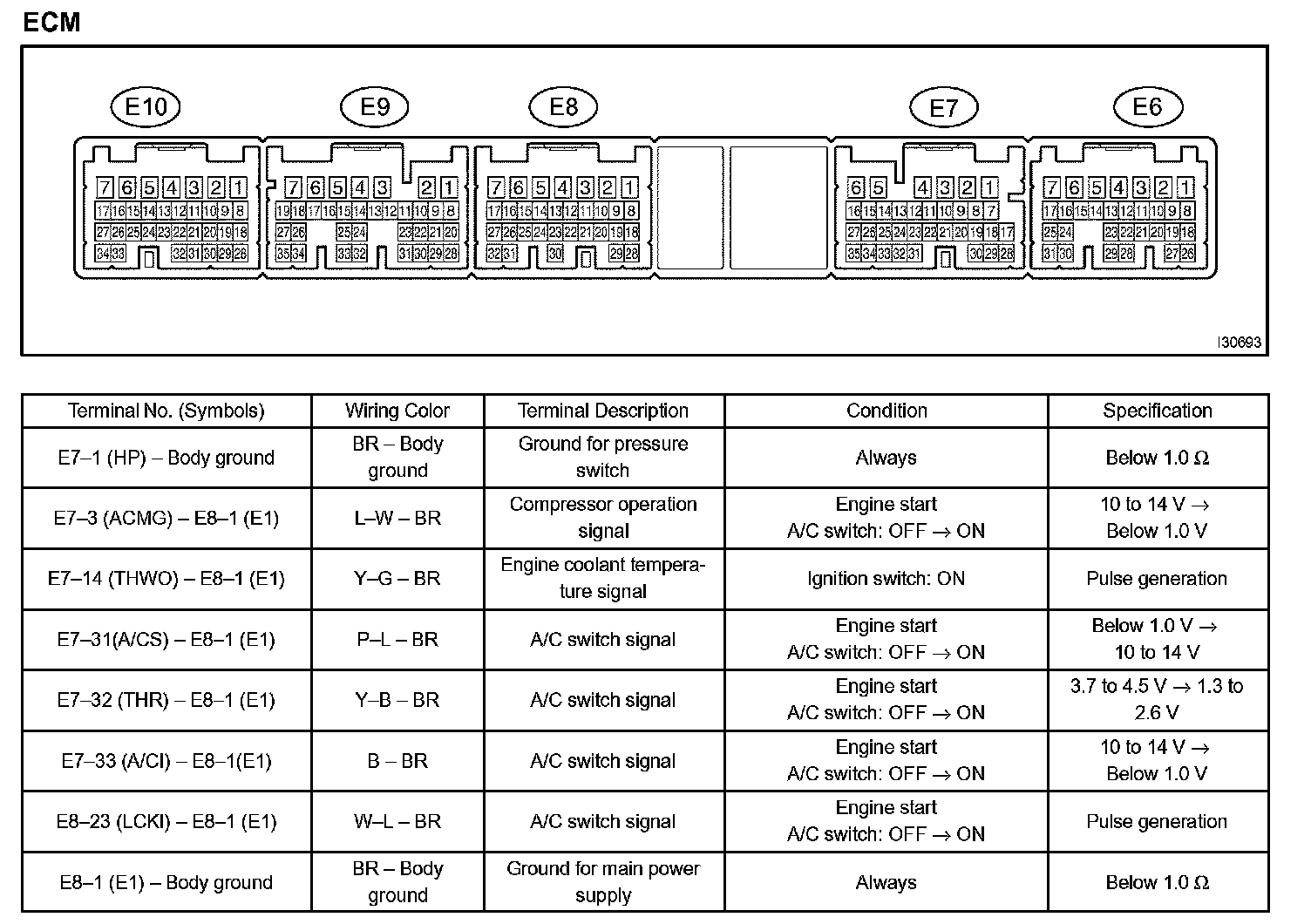

Terminals Of ECM/Pinouts:
