Home >> Lexus >> 2004 >> ES 330 V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

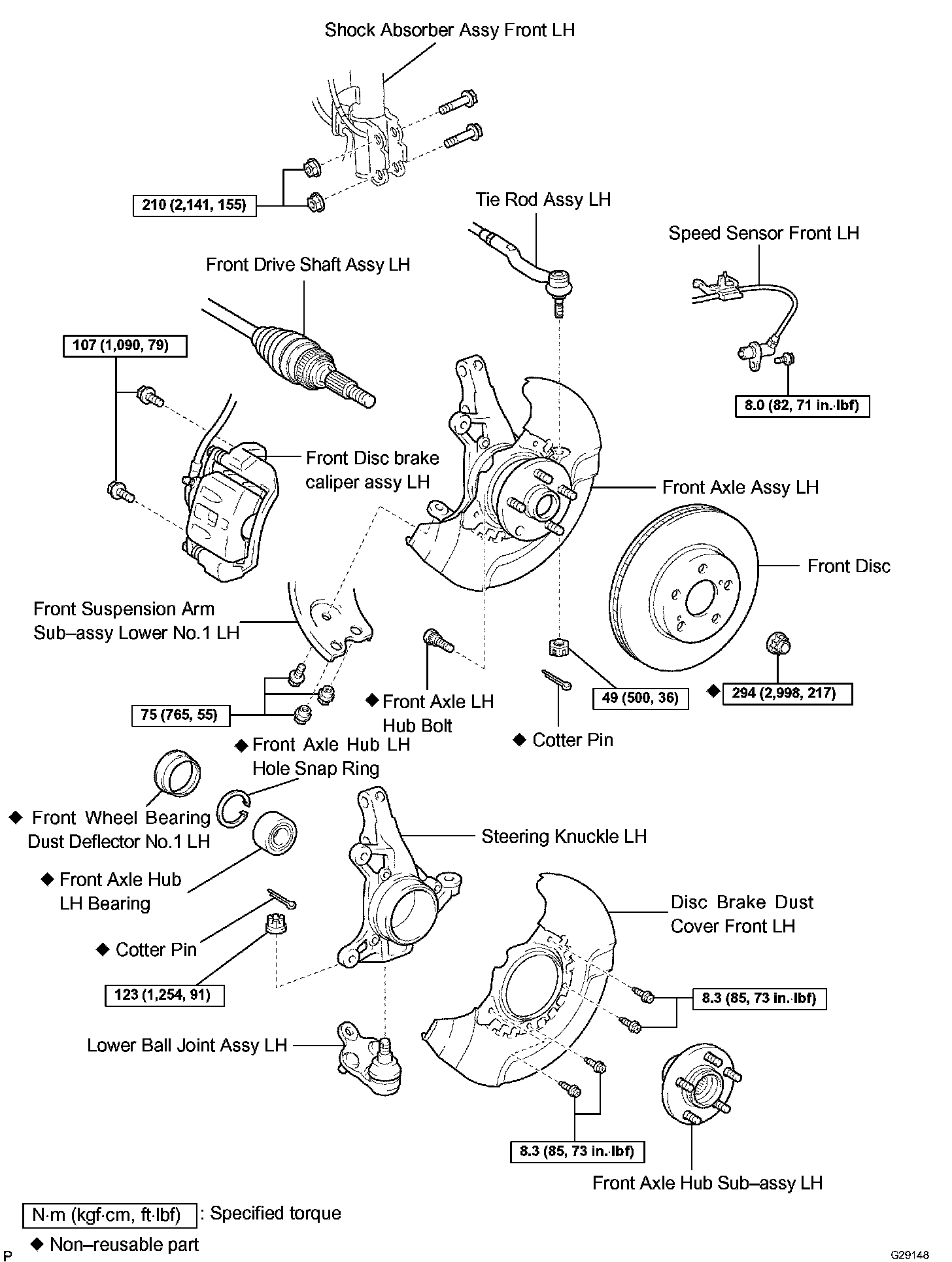

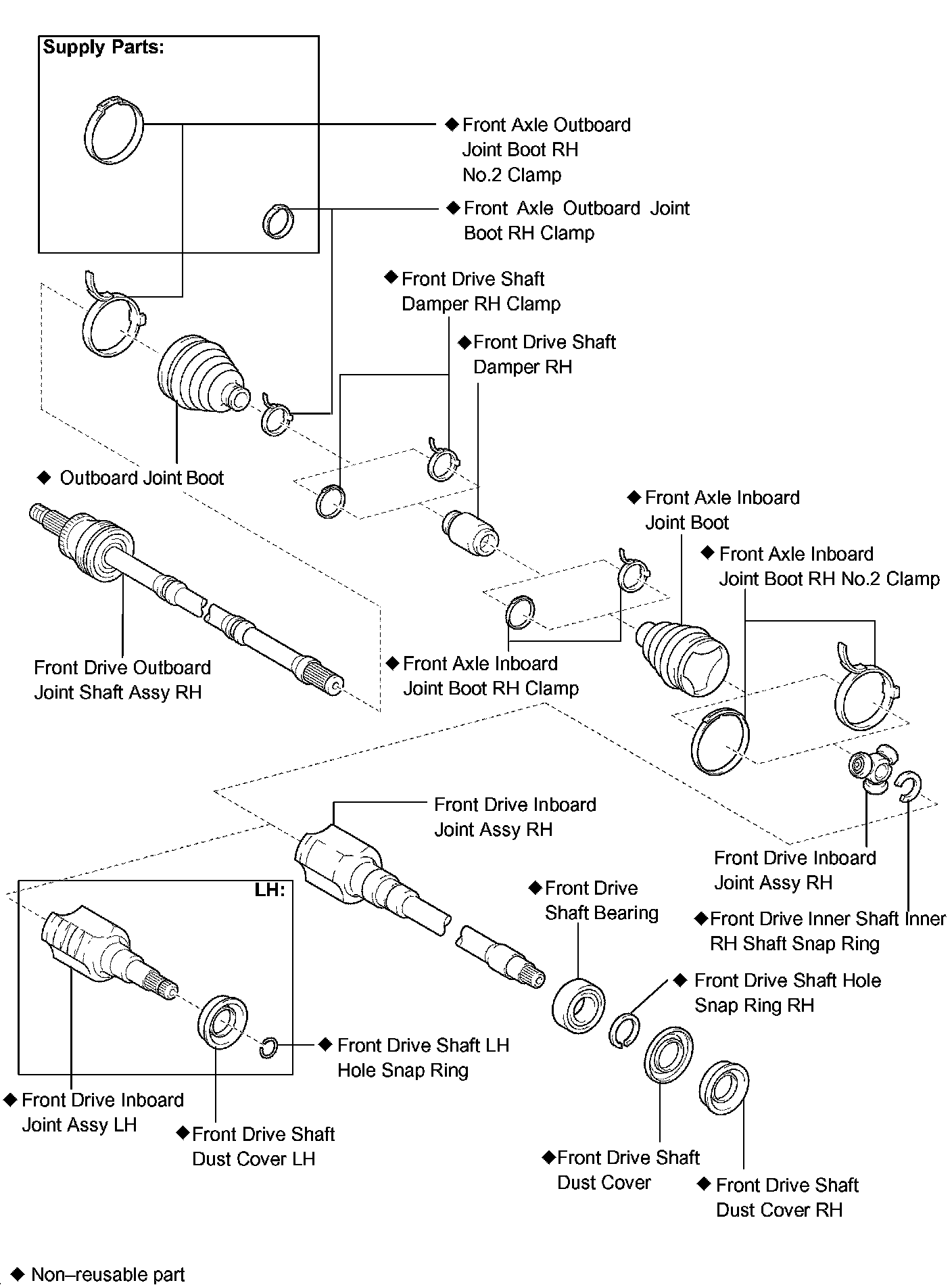

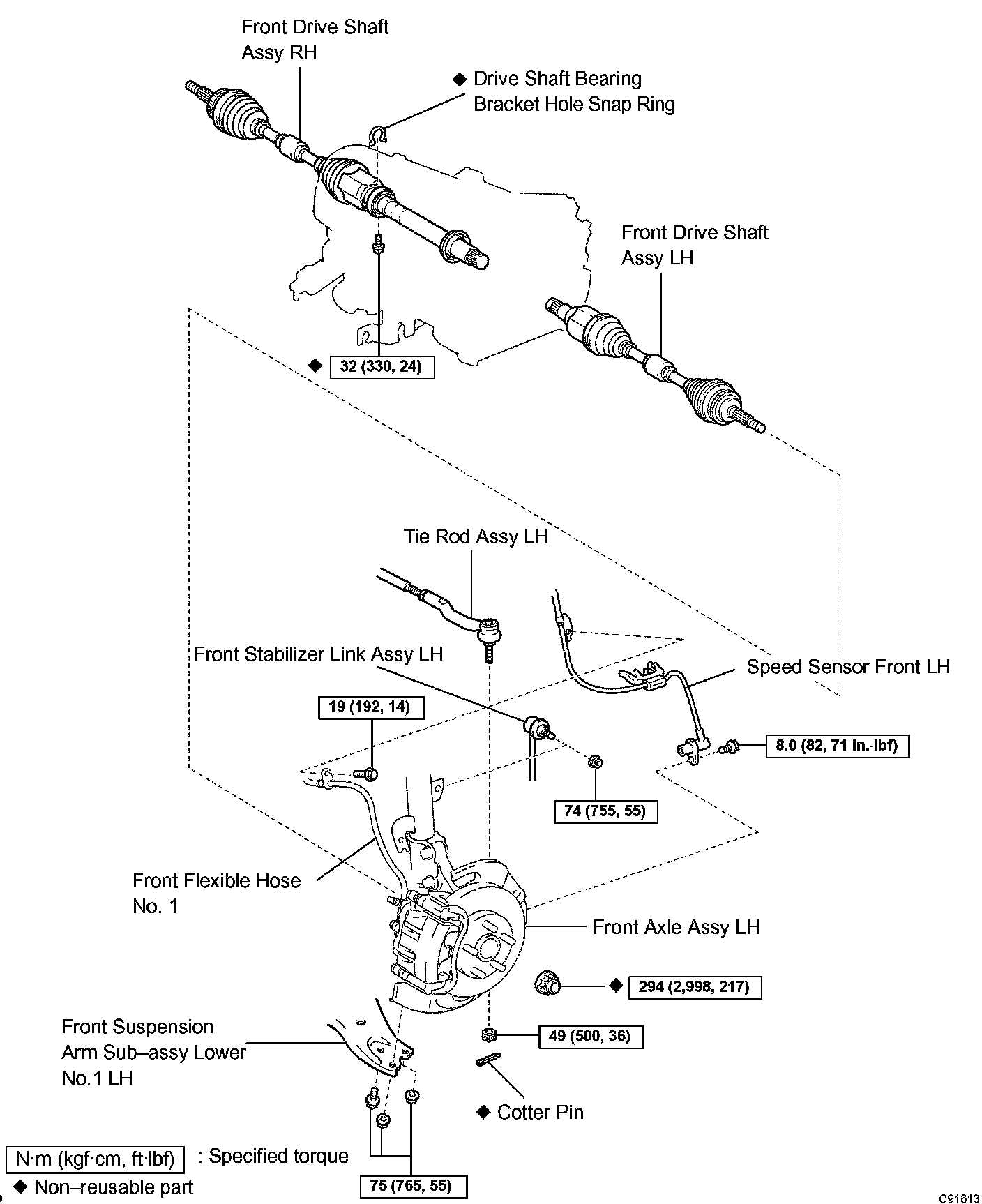

Axle Shaft
