Refrigerant Line: Components

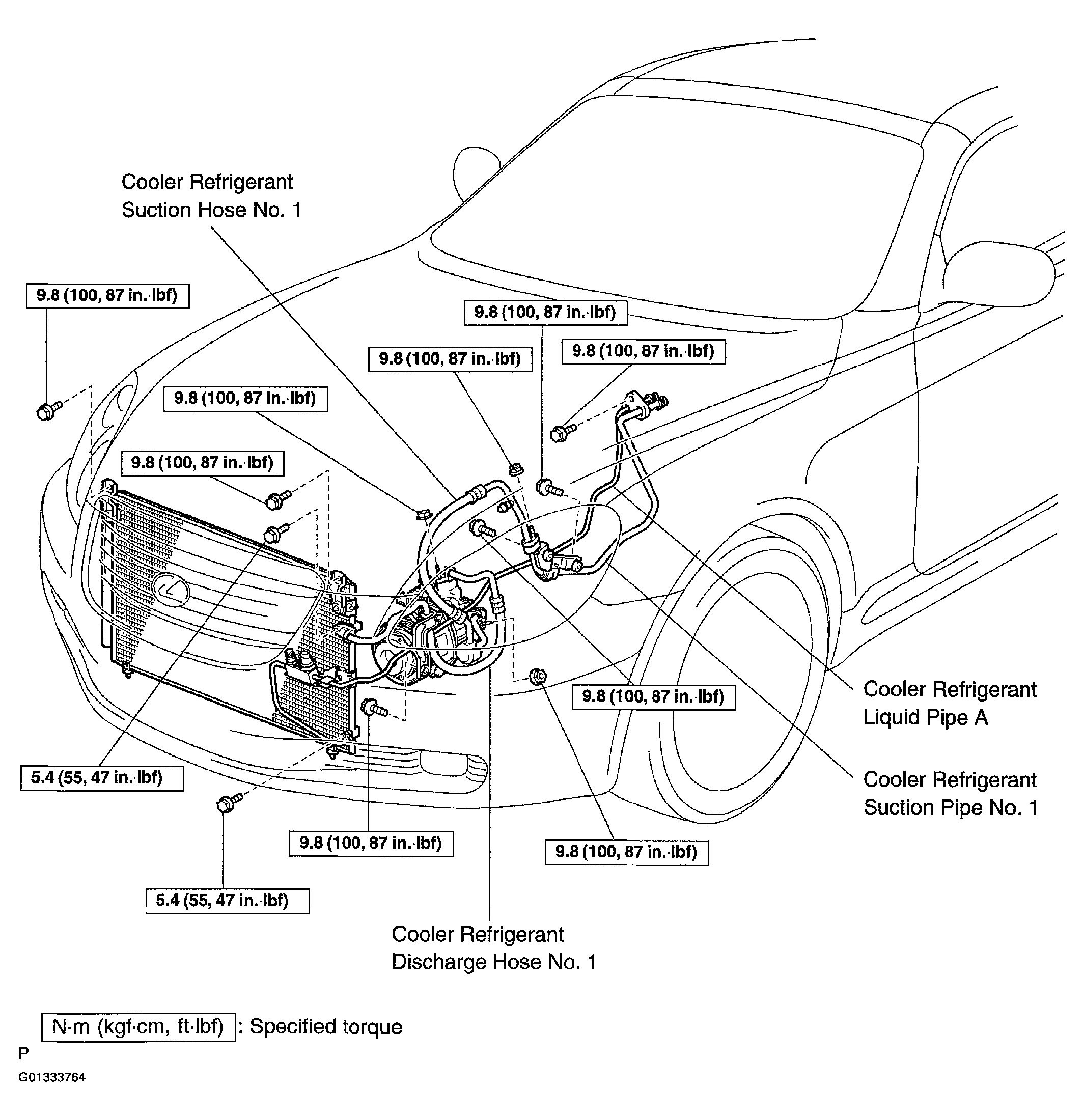

Fig 1: Refrigerant Line Replacement Components With Torque Specifications
G01333764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
