Air Conditioner Control Assembly: Overhaul

REMOVE AIR CONDITIONER CONTROL ASSY
1. Release the clips, pull out the air conditioner control assy.
2. Disconnect the connectors.
REMOVE CONSOLE UPPER PANEL GARNISH FRONT
1. Remove the 2 screws.
2. Release the claws, remove the console upper panel garnish front.
REMOVE HEATER CONTROL HOUSING
1. Remove the 6 screws.
2. Release the claws, remove the heater control housing.
3. Remove the cover plate and heater control housing.
REMOVE AIR CONDITIONER AMPLIFIER ASSY
REMOVE COOLER WIRE NO.1
REMOVE COOLER WIRE NO.1 (W/ LEXUS NAVIGATION SYSTEM)
REMOVE MULTI-DISPLAY JUNCTION BLOCK (W/ LEXUS NAVIGATION SYSTEM)
1. Remove the 2 screws and multi-display junction block.

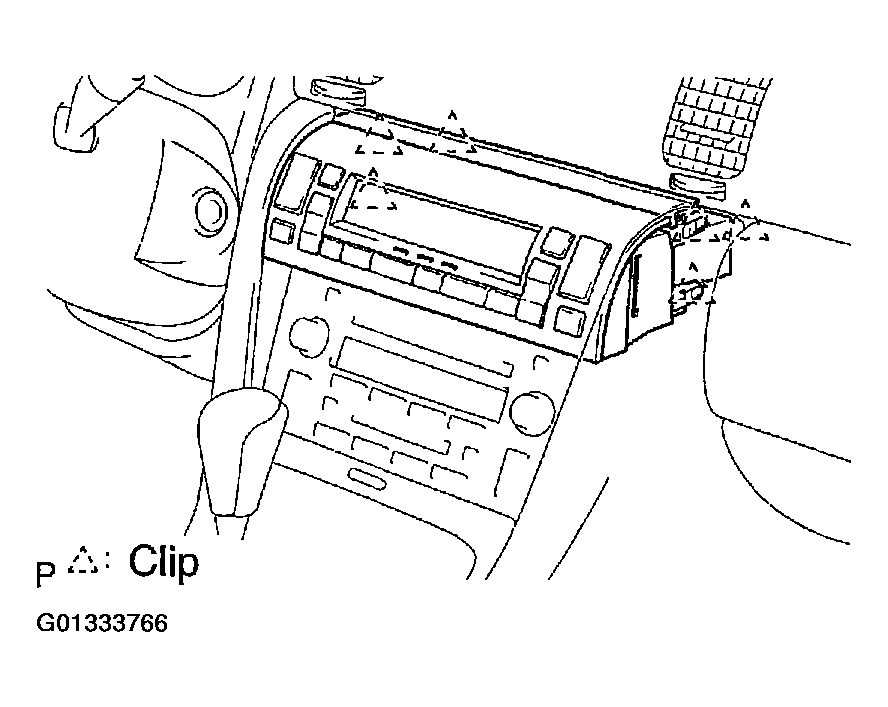

Fig 1: Releasing Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Removing Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Removing Screws And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Removing Screws And Multi-Display Junction Block
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEATER CONTROL BASE SUB-ASSY
1. Remove the 2 screws and heater control base sub-assy.
REMOVE HEATER CONTROL KNOB
INSTALL AIR CONDITIONER AMPLIFIER ASSY
1. Install the 2 screws, cover plate and air conditioner amplifier assy.
2. Install the 2 No. 1 cooler wires to the air conditioner amplifier assy as shown in the illustration.
Fig 5: Removing Screws And Heater Control Base Sub-Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Installing Screws, Cover Plate And Air Conditioner Amplifier Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Installing Cooler Wires To Air Conditioner Amplifier Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
