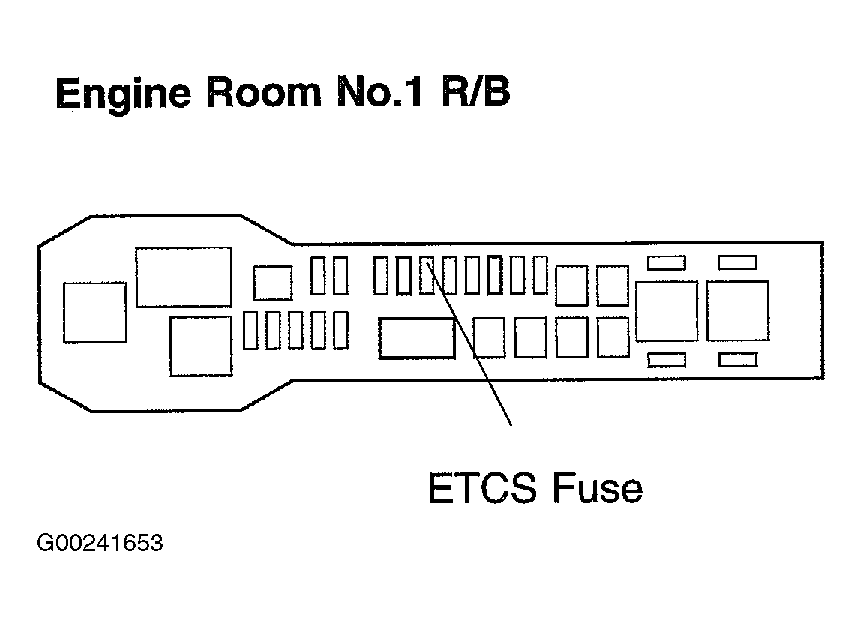

- Remove ETCS fuse from the engine room No.1 relay block. See Fig 1. Check continuity of fuse and replace as necessary. If fuse is okay, go to next step.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

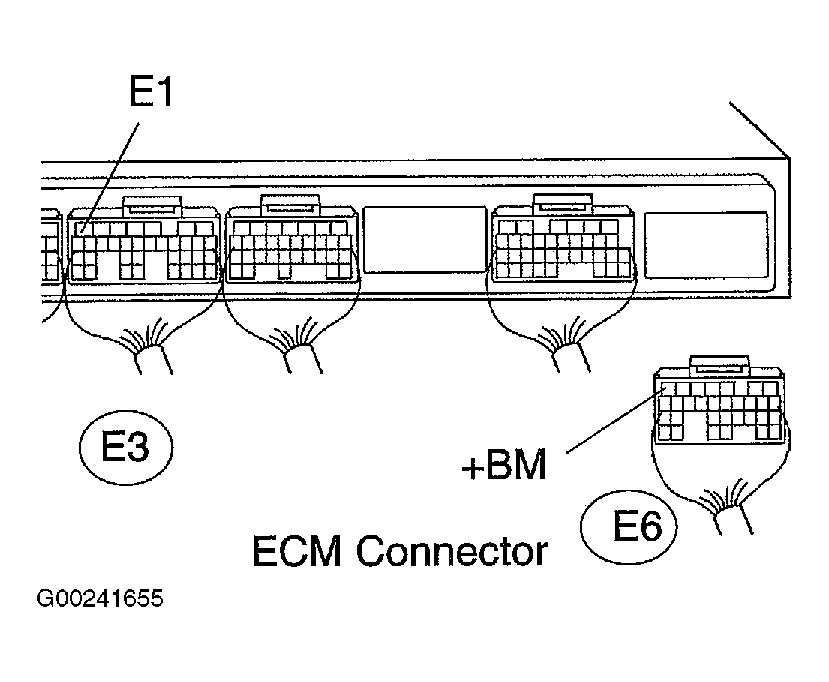

- Check the voltage between terminal E1 of ECM E3 connector and +BM of ECM E6 connector. See Fig 2. If 9-14 volts are present, check and replace ECM. If 9-14 volts are not present, go to next step.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

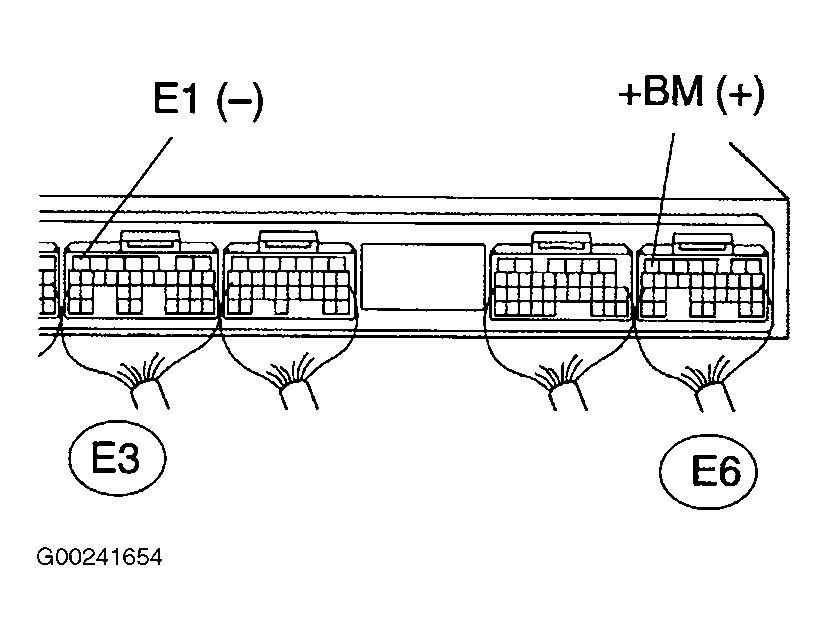

- Remove the ETCS fuse from the engine room No. 1 relay block. See Fig 1. Disconnect the ECM E6 connector. See Fig 3. Check continuity between the wire harness side connectors. Continuity should be present between ETCS fuse terminal 2 of relay block and +BM (V11-2). Continuity should not be present between ETCS fuse terminal No. 2 of relay block or +BM (V11-2) and ECM E3 connector terminal E1.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect battery positive terminal. Check continuity between wire harness side connectors. Continuity should be present between battery positive terminal and ETCS fuse terminal No. 1 of relay block. Continuity should not be present between battery positive terminal or ETCS fuse terminal No. 1 of relay block and ECM E3 connector terminal E1. If okay, replace ECM. If not okay, repair or replace harness or connector.
