DTC B1231 Jam Protection Limit Switch Circuit On Driver Door, DTC B1232 Jam Protection Pulse Switch Circuit On Driver Door: Wiring Diagram

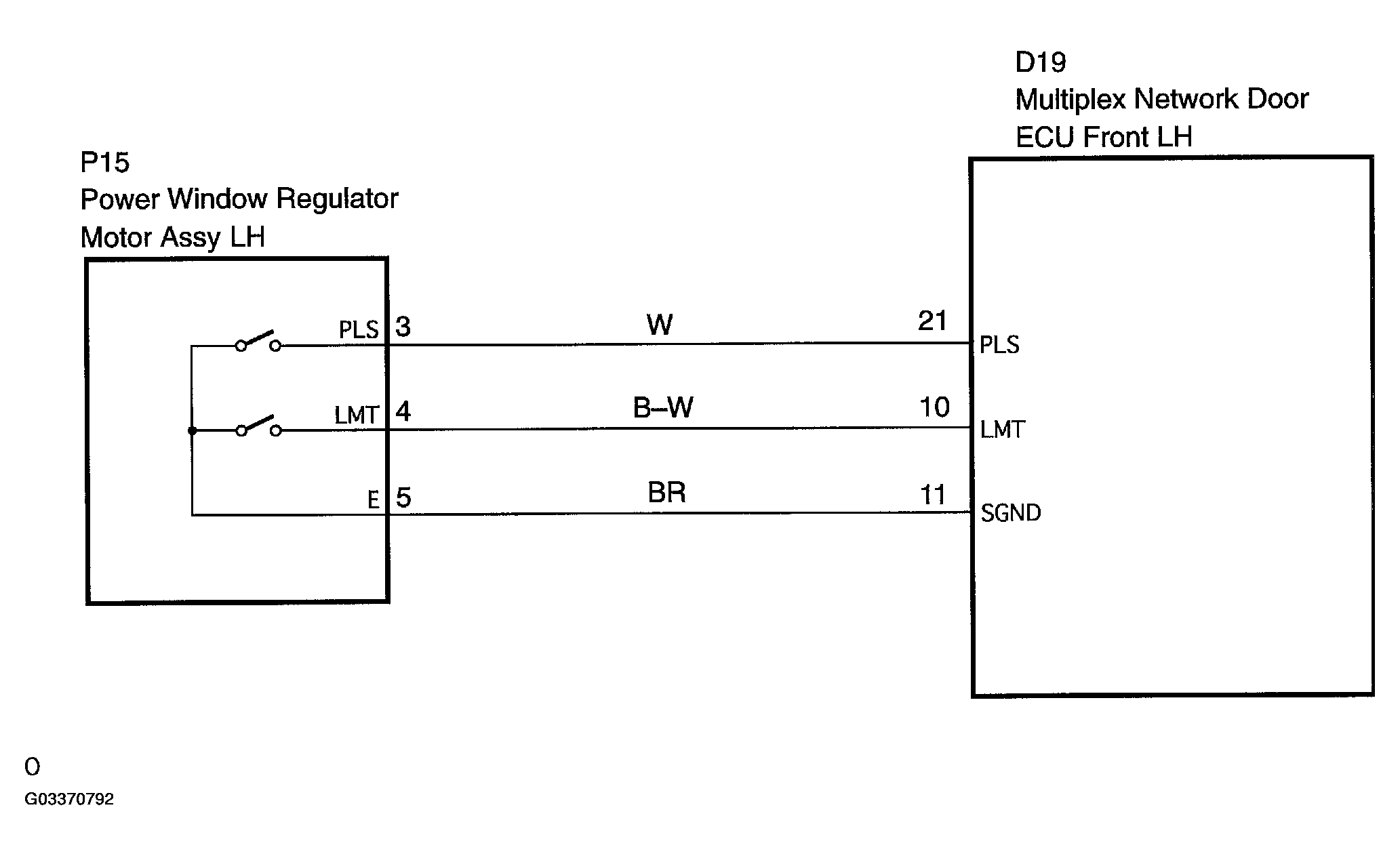

Fig 1: Identifying Power Window Regulator Master Switch Assembly Wiring Diagram
G03370792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
