DTC B1221 Power Window Switch Circuit On Driver Door: Wiring Diagram

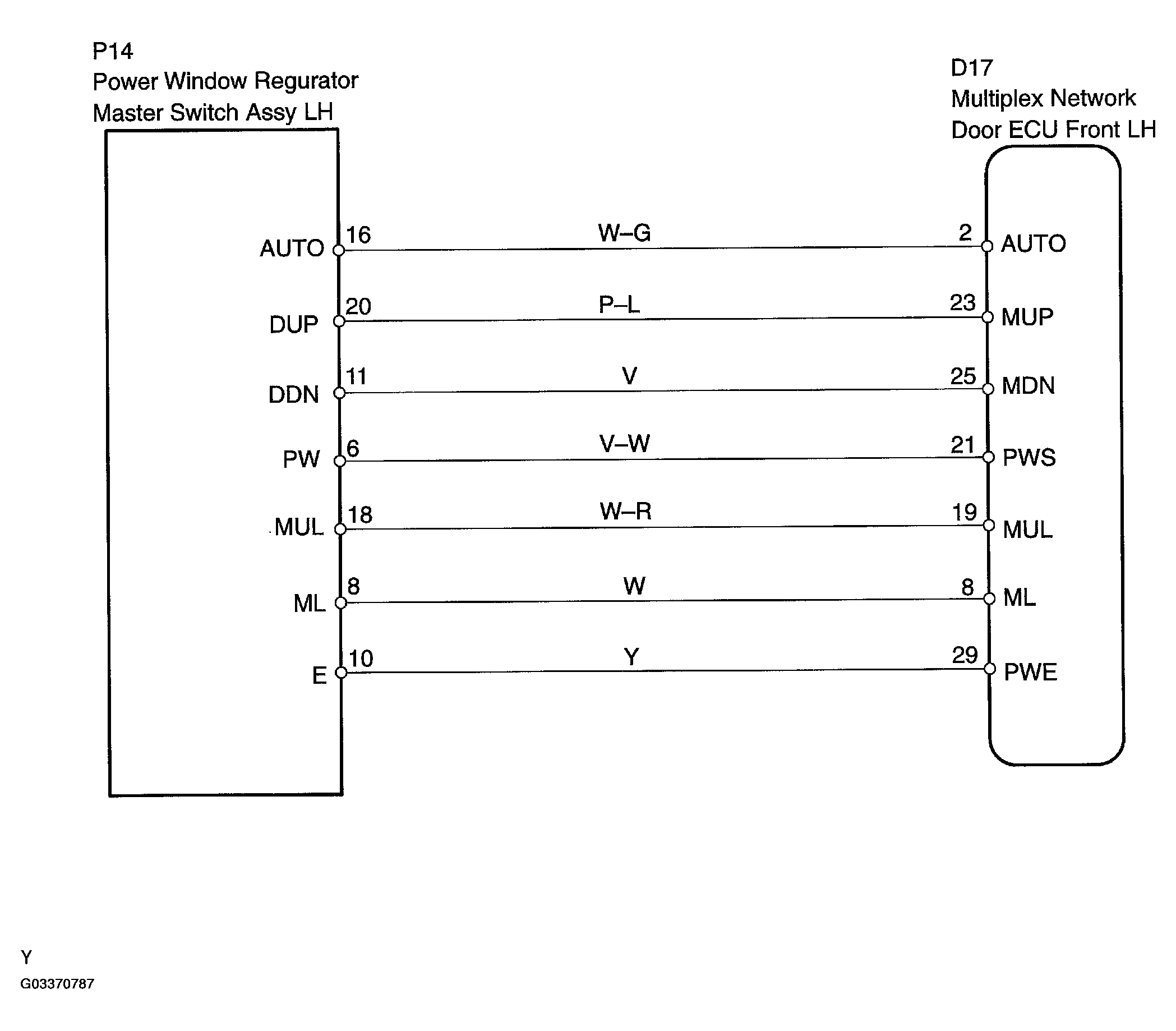

Fig 1: Identifying Power Window Regulator Master Switch Assembly Wiring Diagram
G03370787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
