Home >> Lexus >> 2003 >> SC 430 >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Power Mirror Control System - Diagnosis >> Mirror Switch Circuit (Flow Chart 1) >> Wiring Diagram
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Mirror Switch Circuit (Flow Chart 1): Wiring Diagram

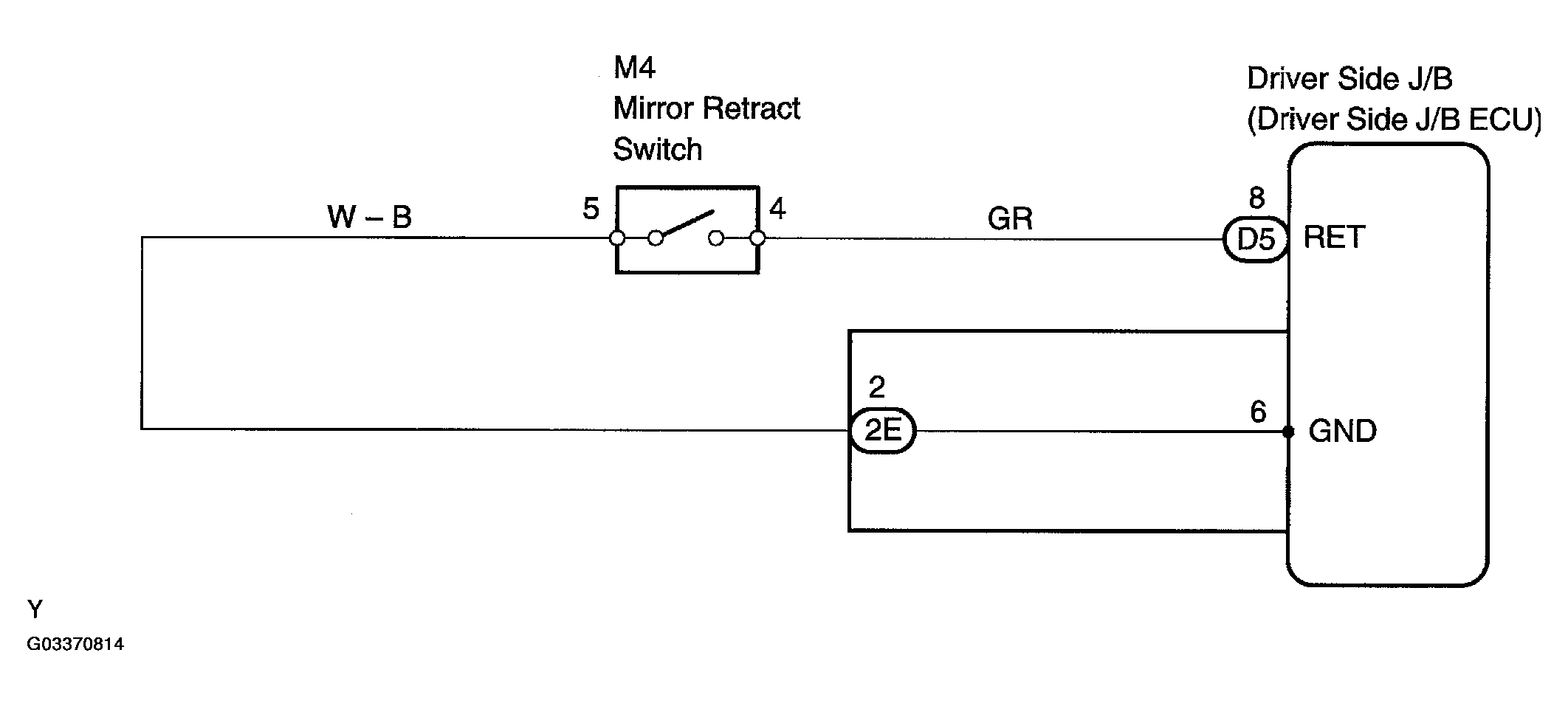

Fig 1: Wiring Diagram - Mirror Switch Circuit
G03370814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
