Audio System (W/LEXUS Navigation System): Location

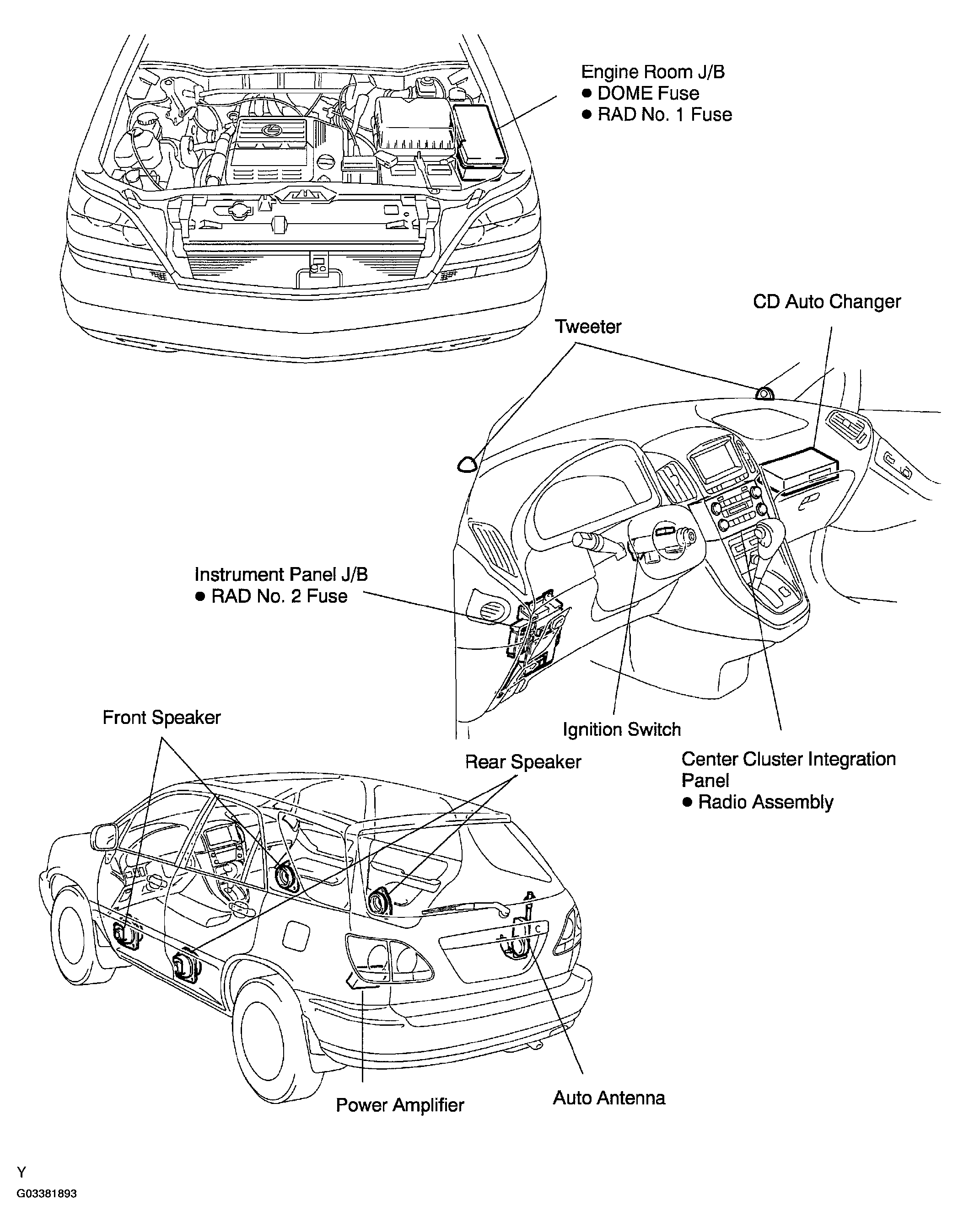

Fig 1: Identifying Audio System Component Locations
G03381893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
