Multiplex Communication System Part 12

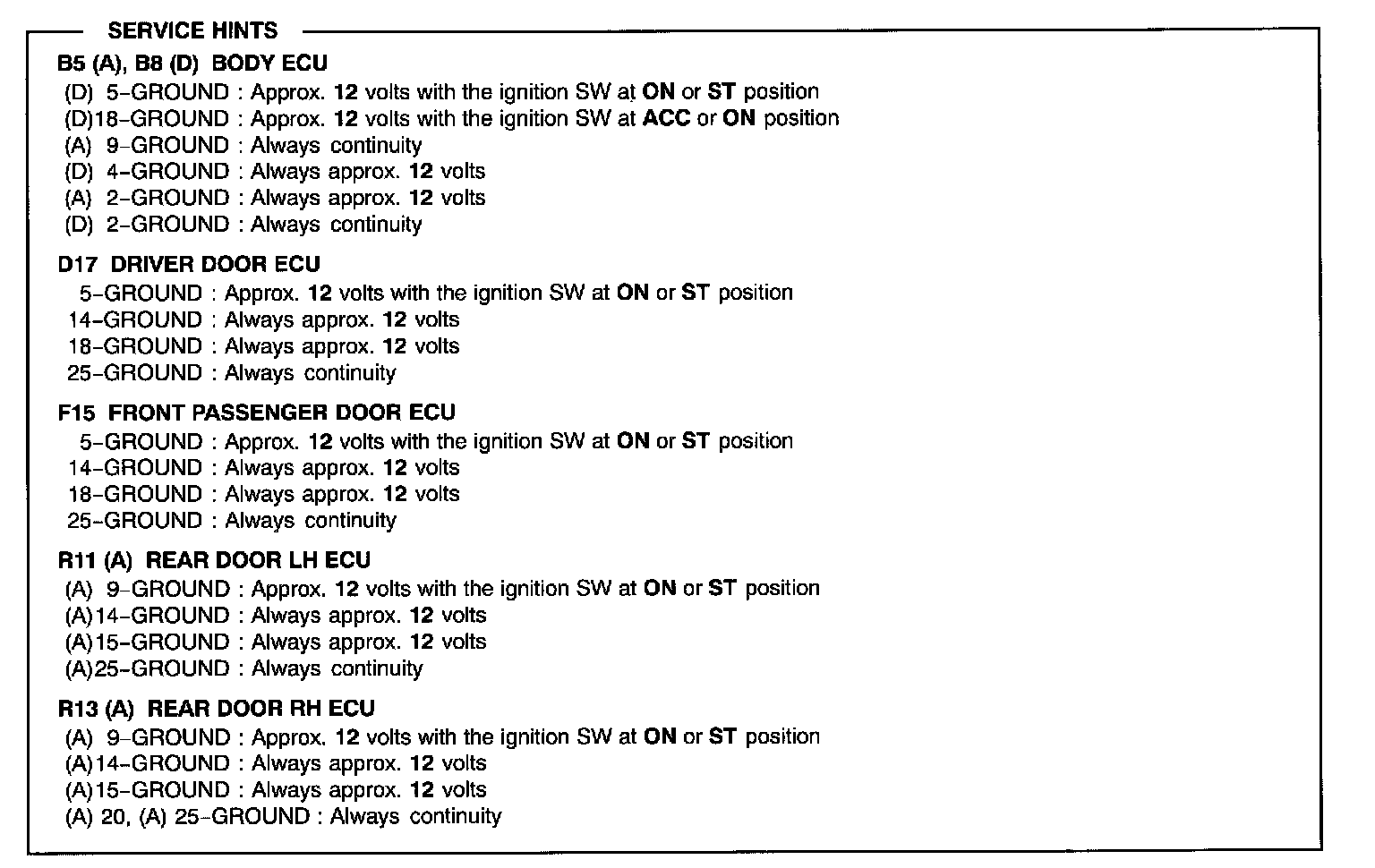

Multiplex Communication System Part 12:

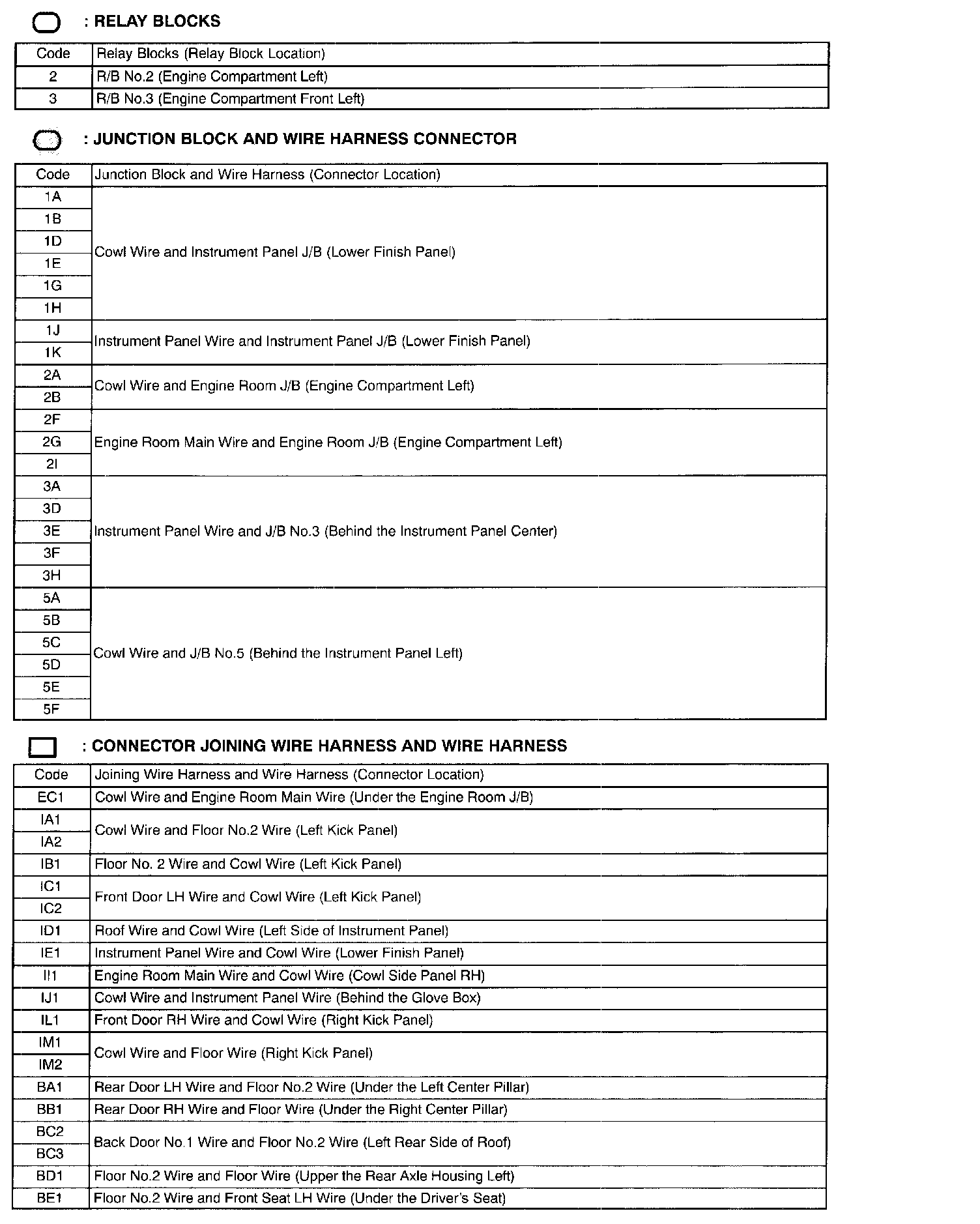

Diagram Legend Part 1:

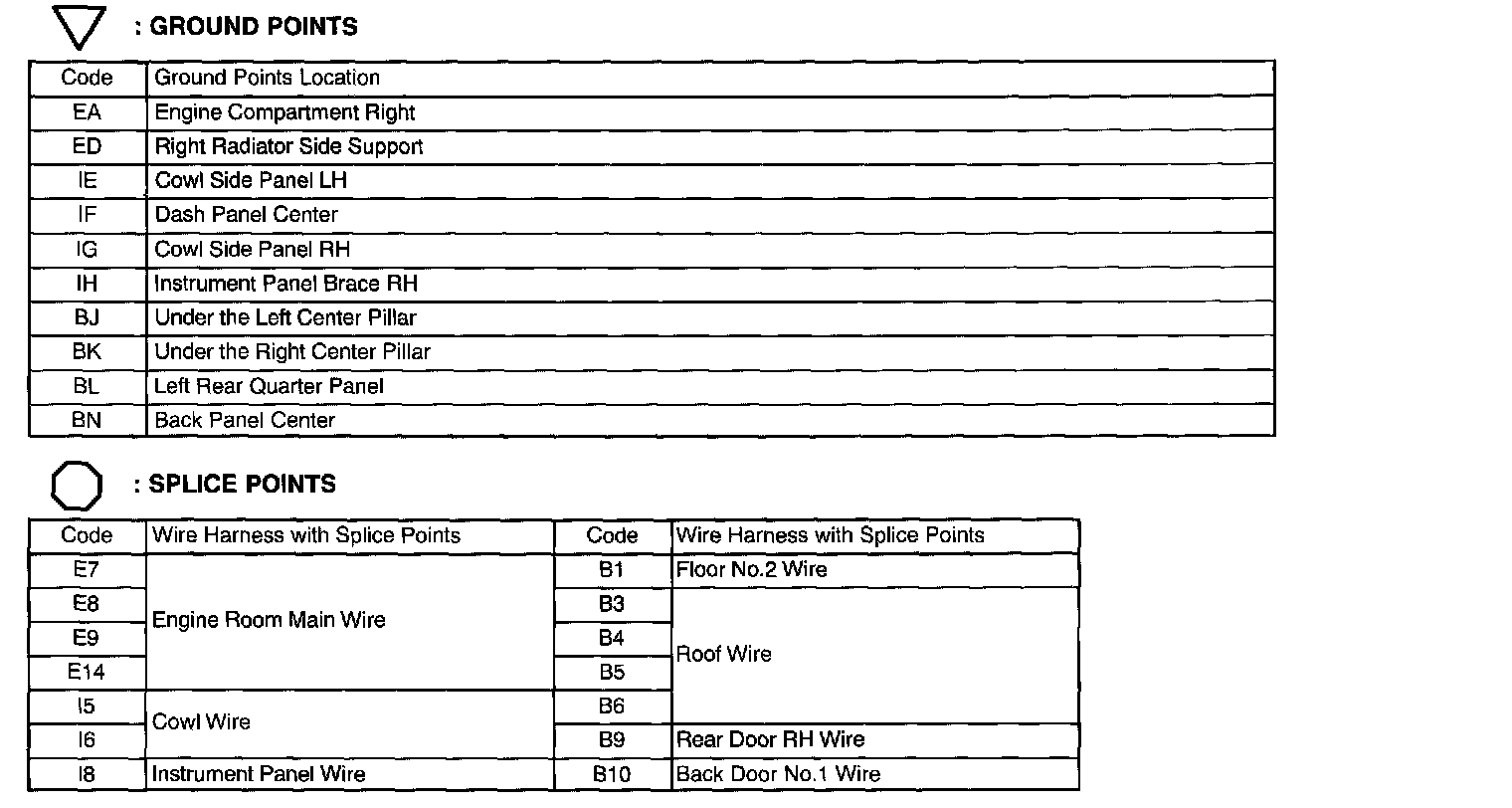

Diagram Legend Part 2:




Diagram Legend Part 3:






Previous Diagram Multiplex Communication System Part 11


Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
