Fuse Block

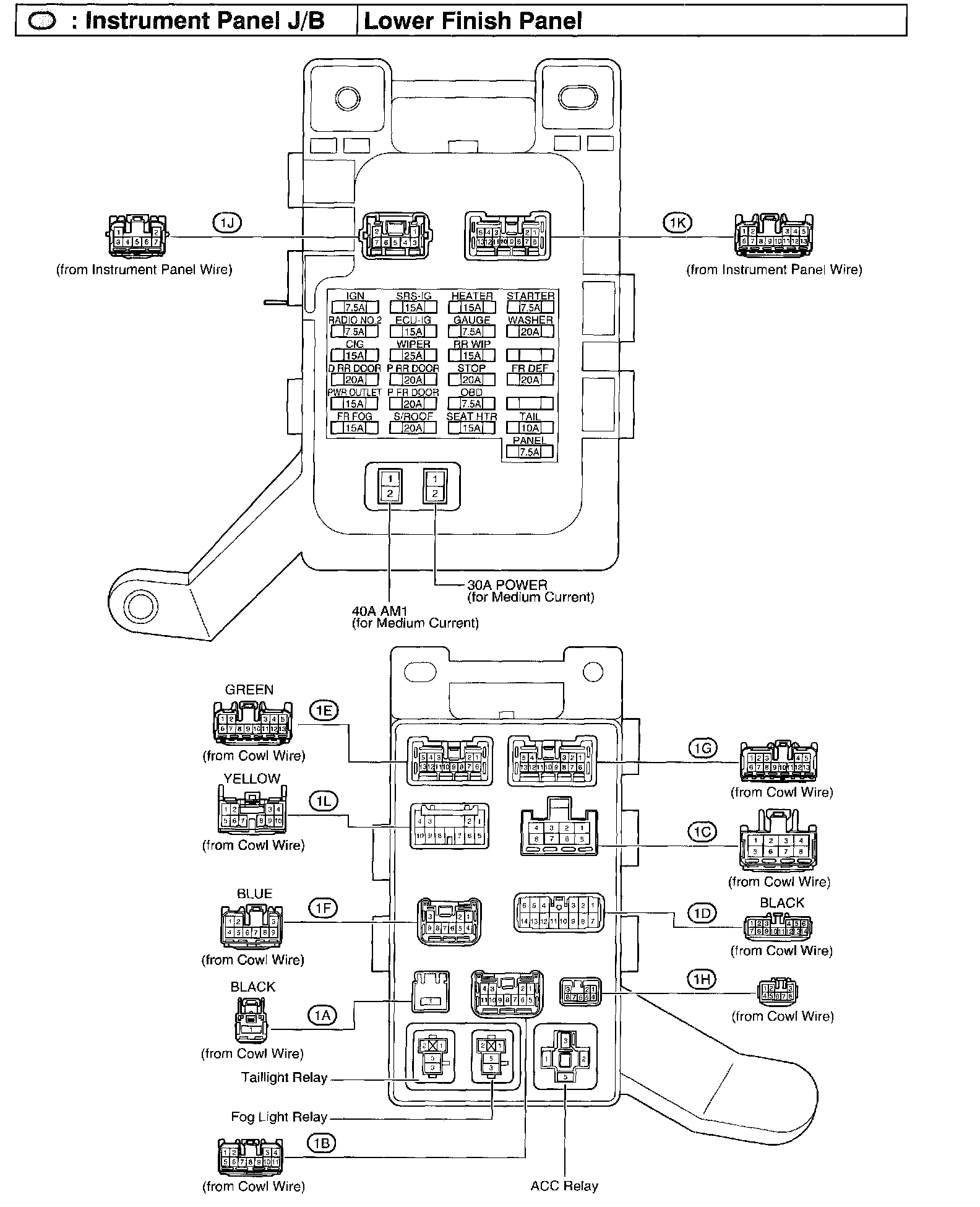

Instrument Panel J/B - Lower Finish Panel:



Engine Room J/B - Engine Compartment Left:

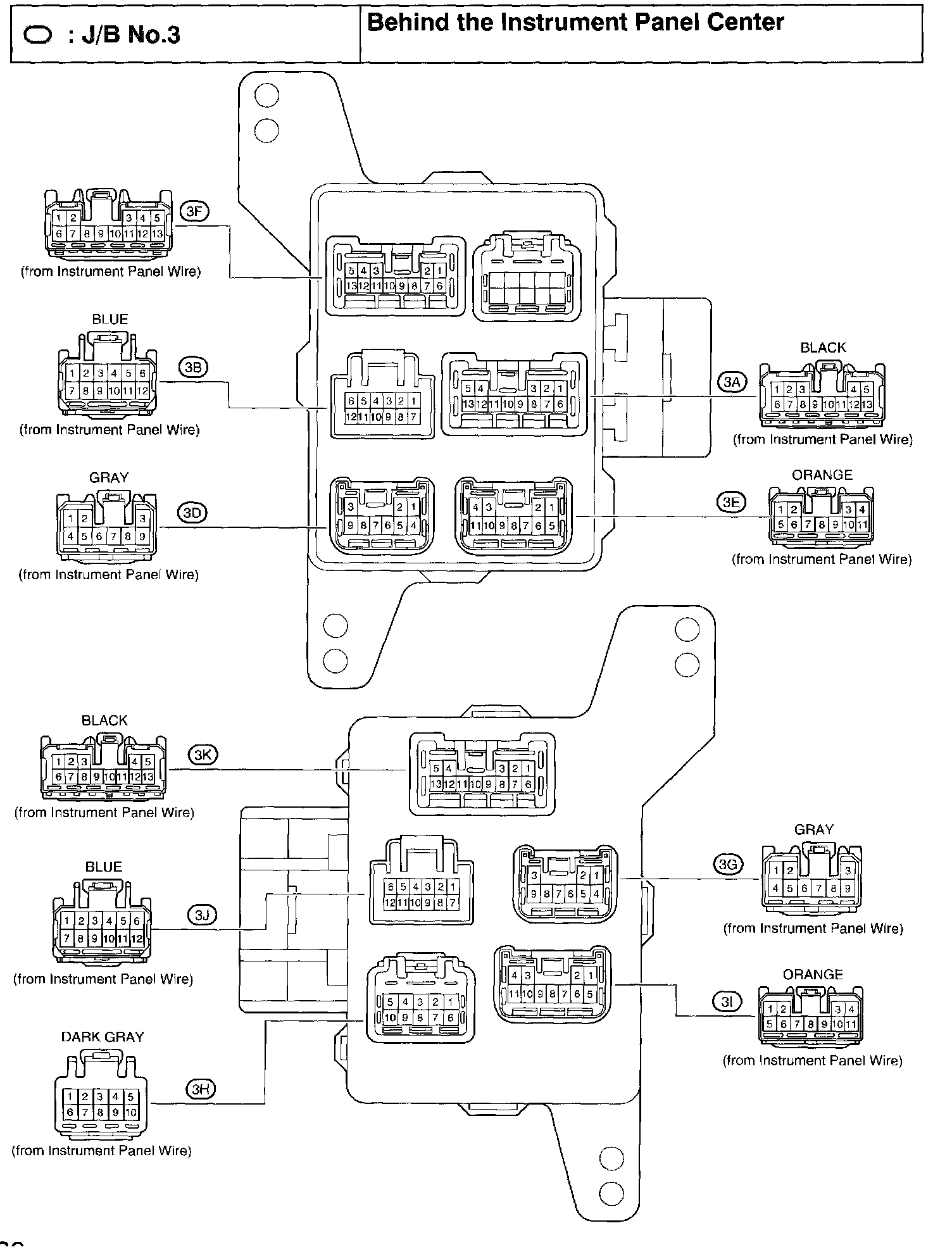

J/B No.3 - Behind The Instrument Panel Center:

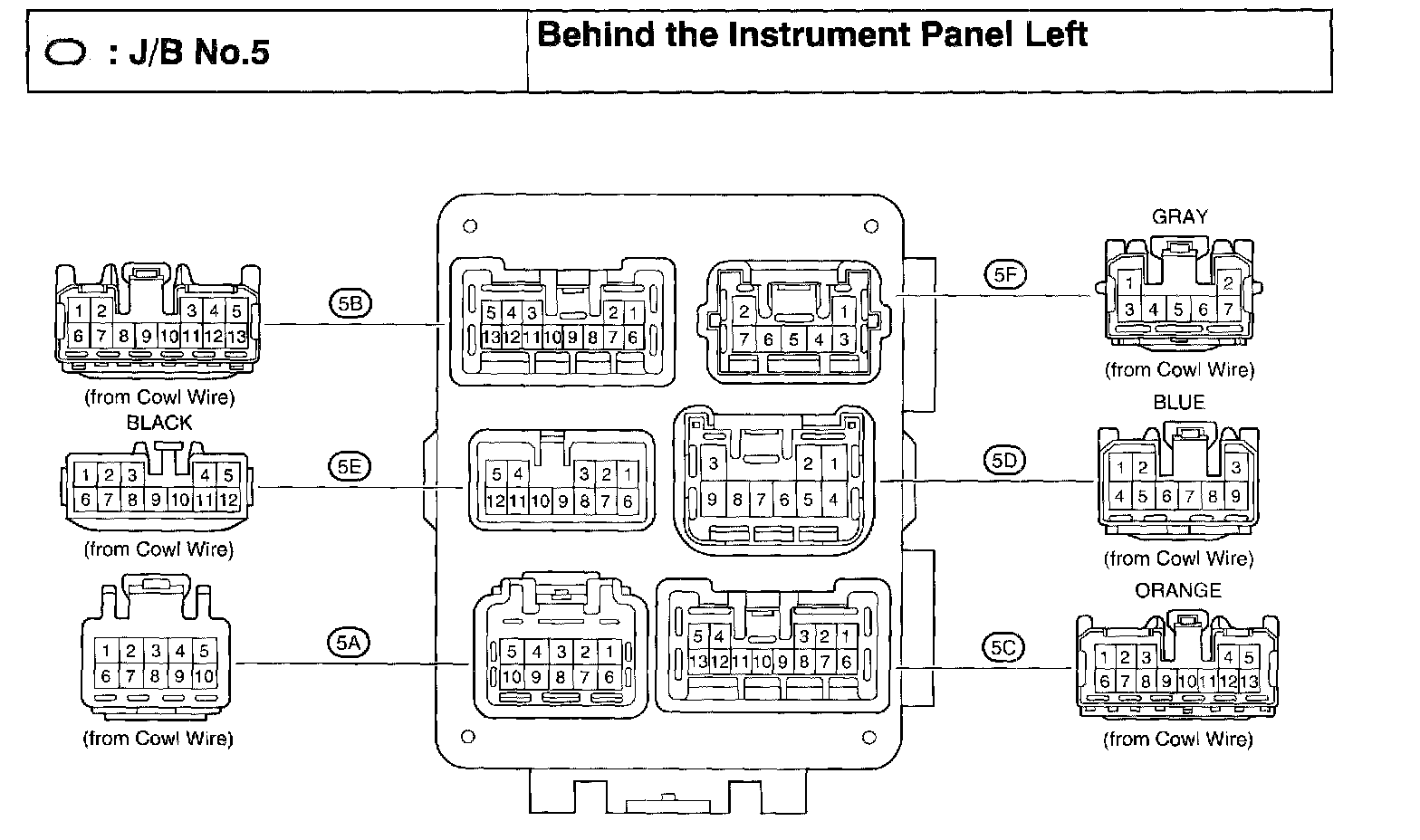

J/B No.5 - Behind The Instrument Panel Left:
