Navigation Module: Testing and Inspection

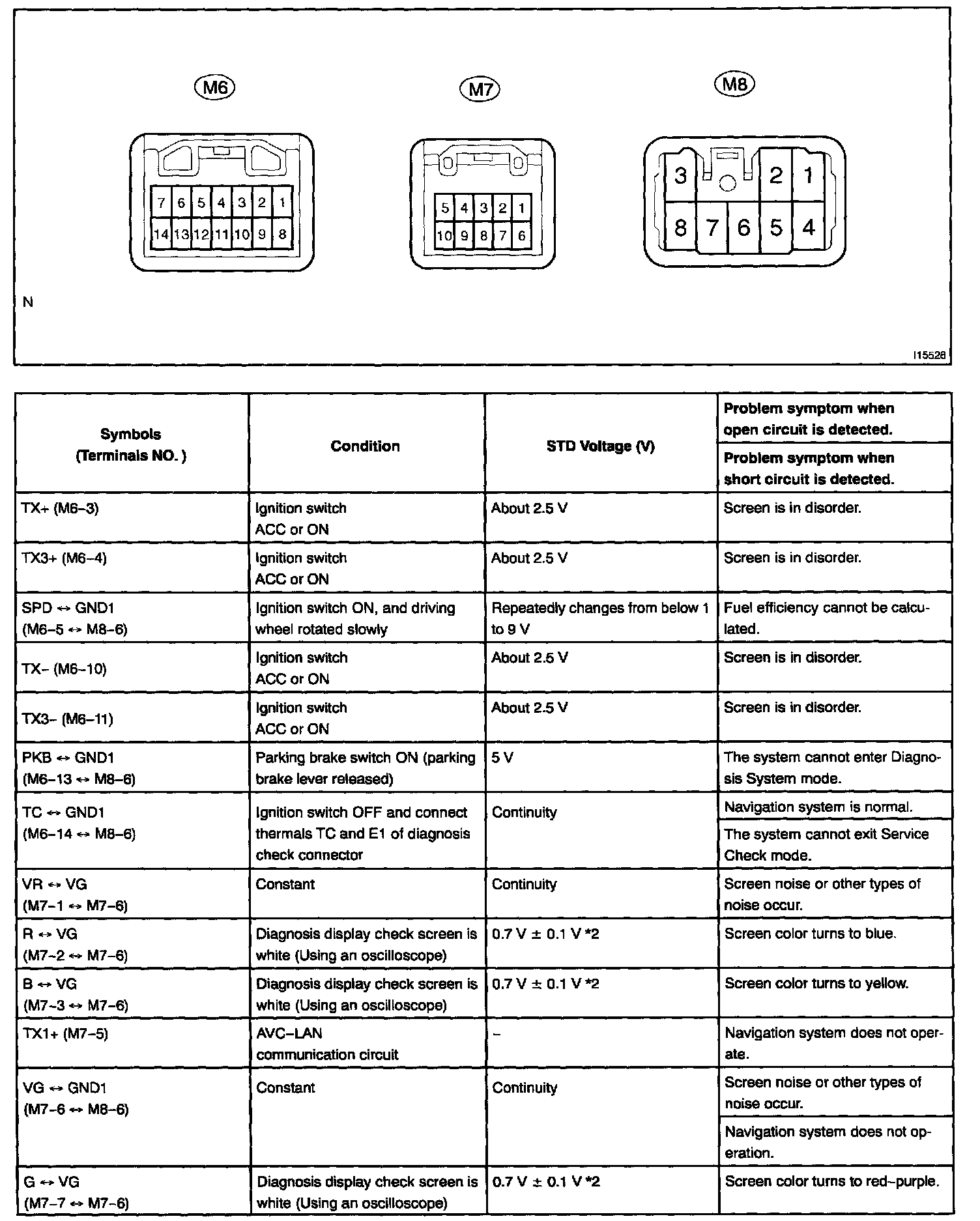

Terminals Of ECM/Pinouts Part 1 - Multi Display:

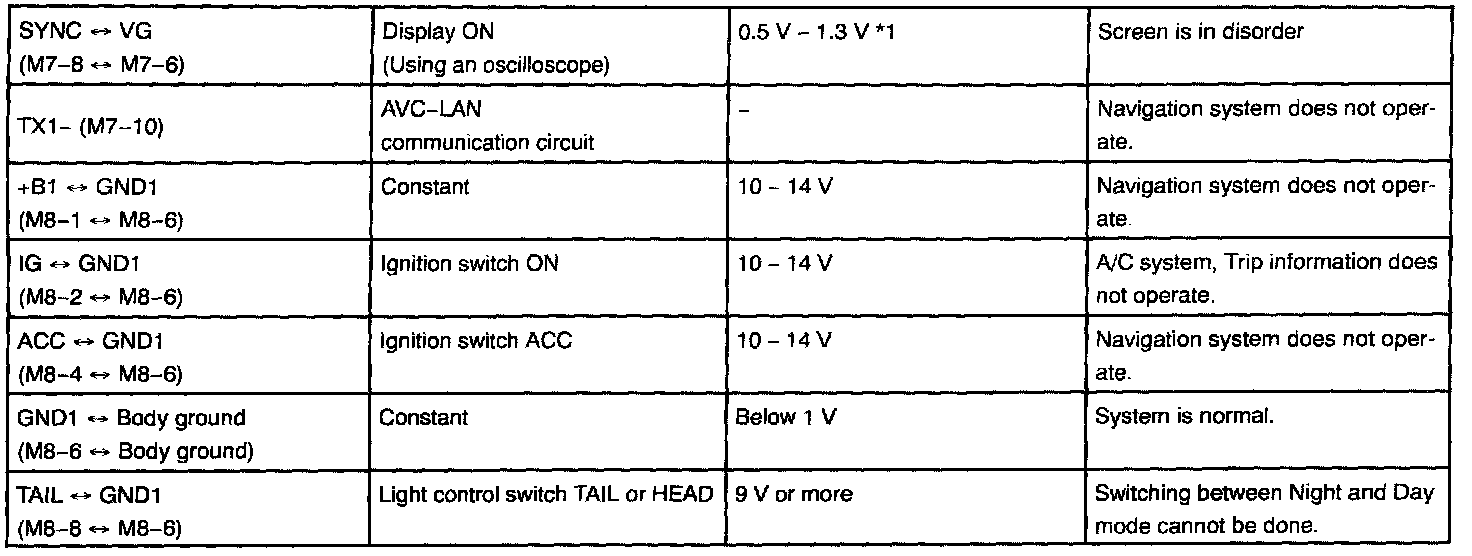

Terminals Of ECM/Pinouts Part 2 - Multi Display:

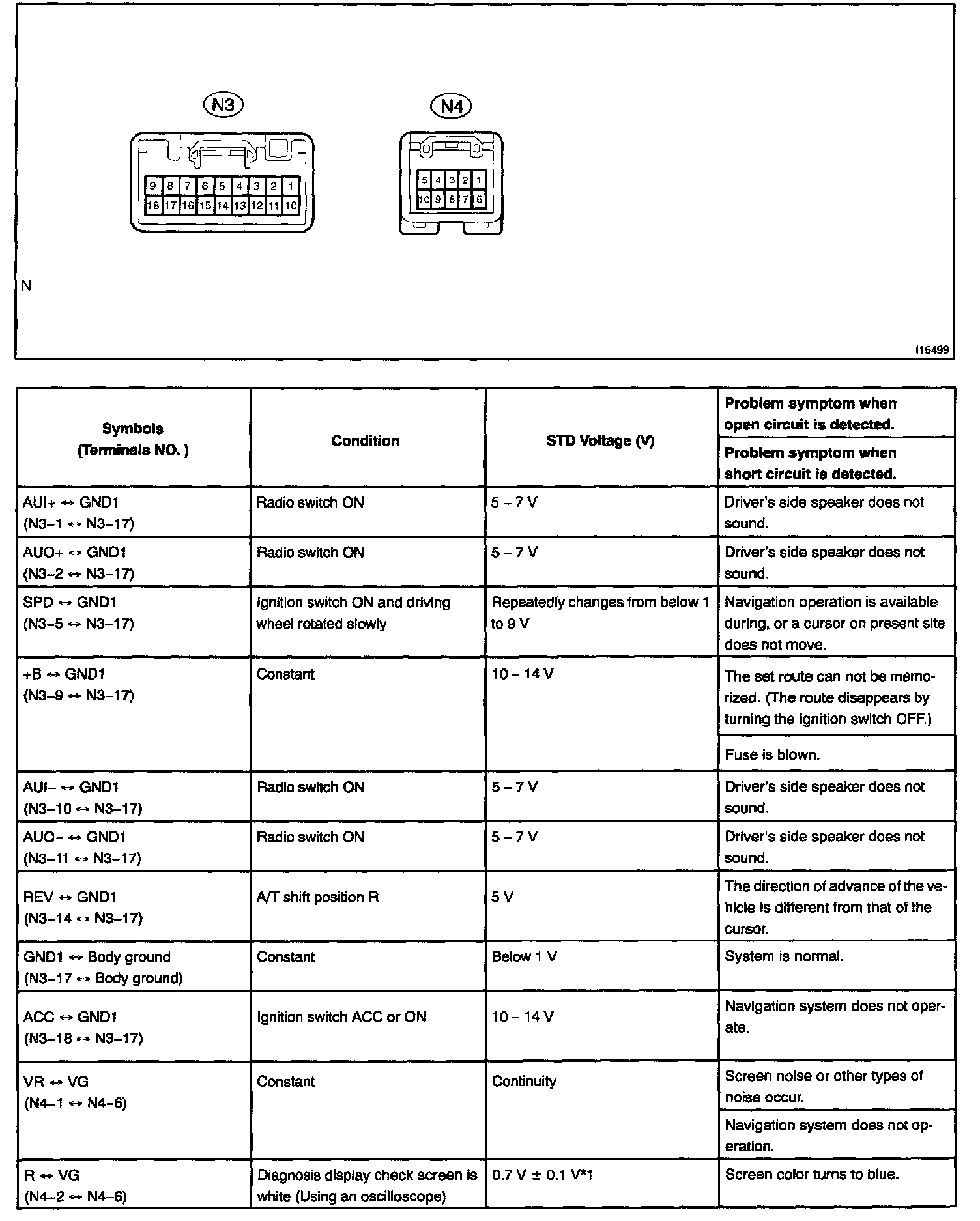

Terminals Of ECM/Pinouts Part 1 - Navigation ECU:

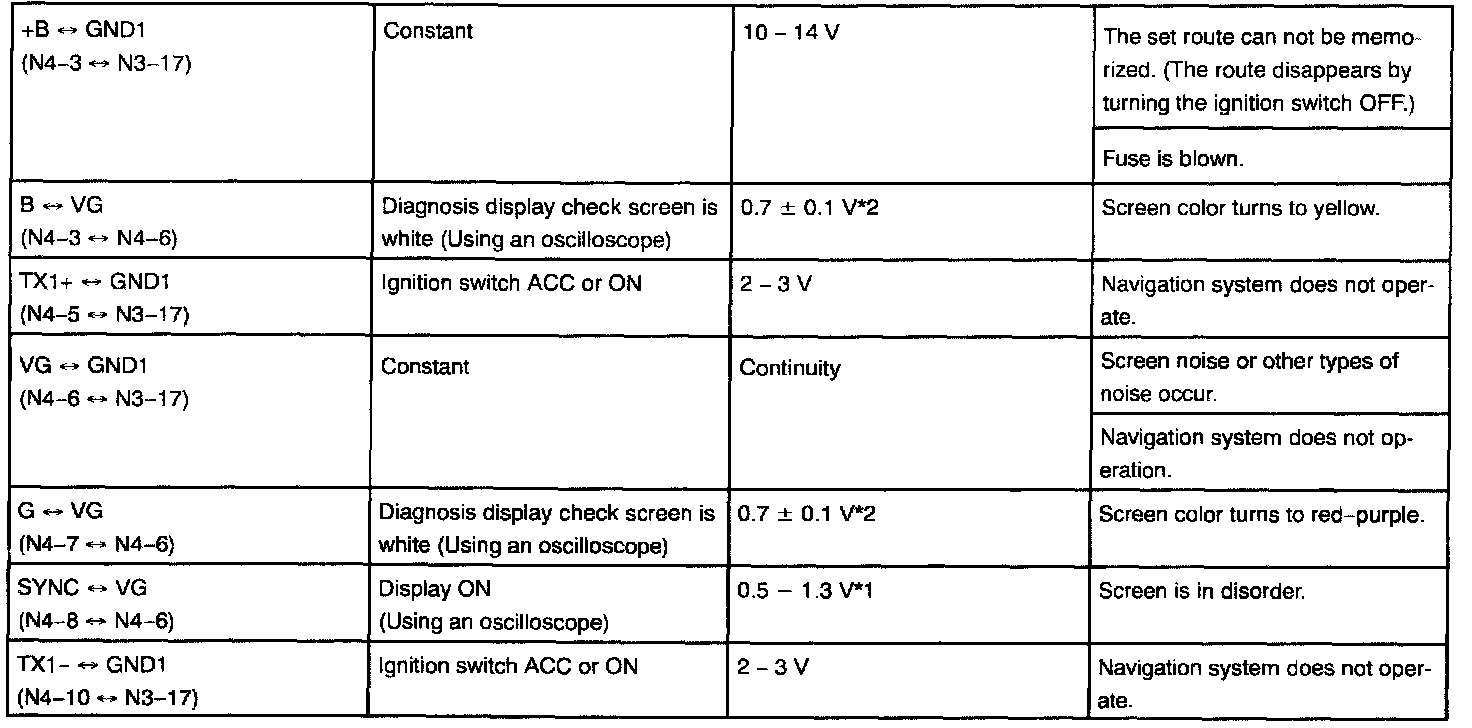

Terminals Of ECM/Pinouts Part 2 - Navigation ECU:



Oscilloscope Waveform:
