Pattern Select Switch Circuit (PWR Mode Switch): Wiring Diagram

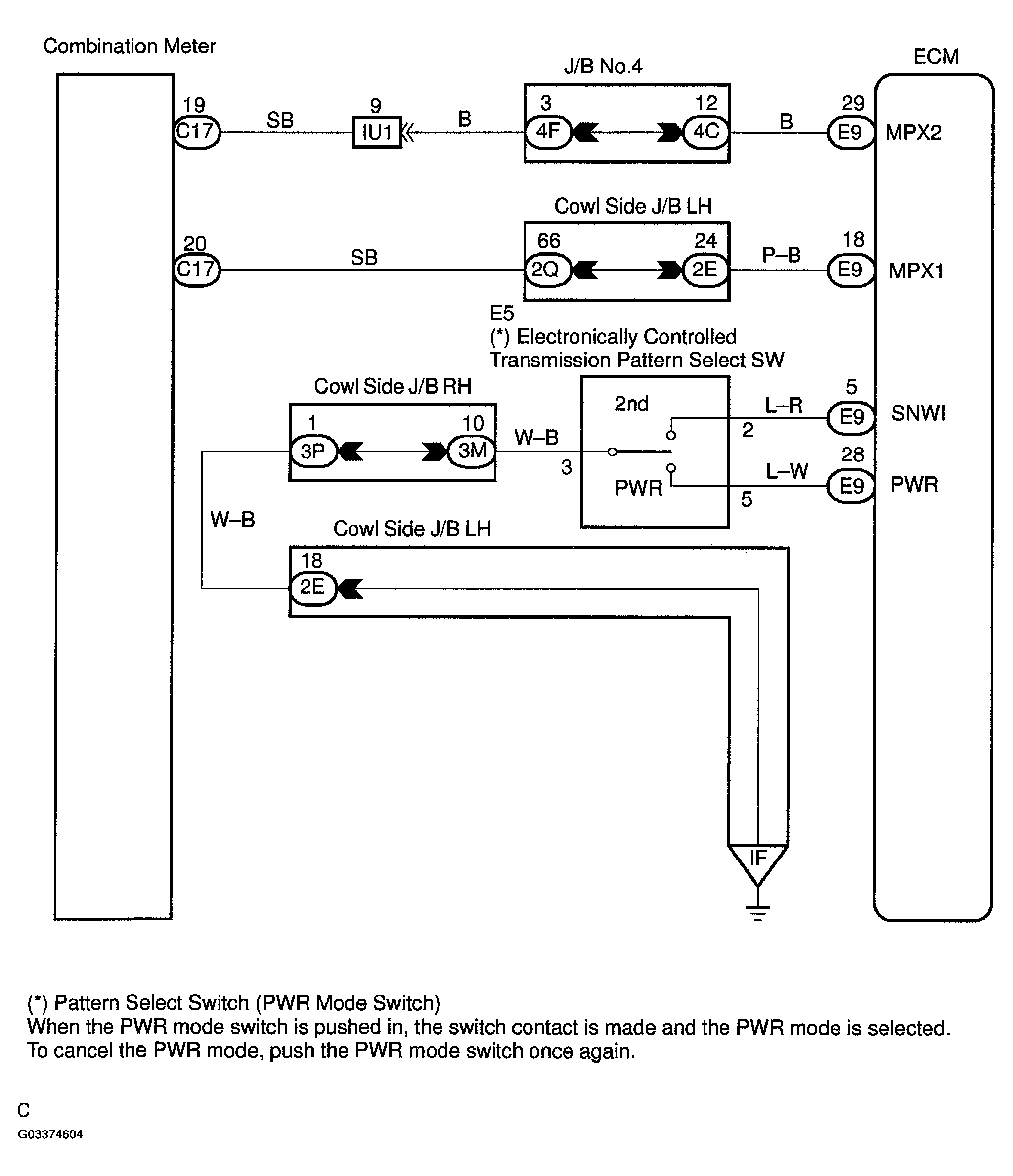

Fig 1: Wiring Diagram - Pattern Select Switch Circuit
G03374604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
