Repair Procedures

HINT:

This is a flow chart for vehicle pull.

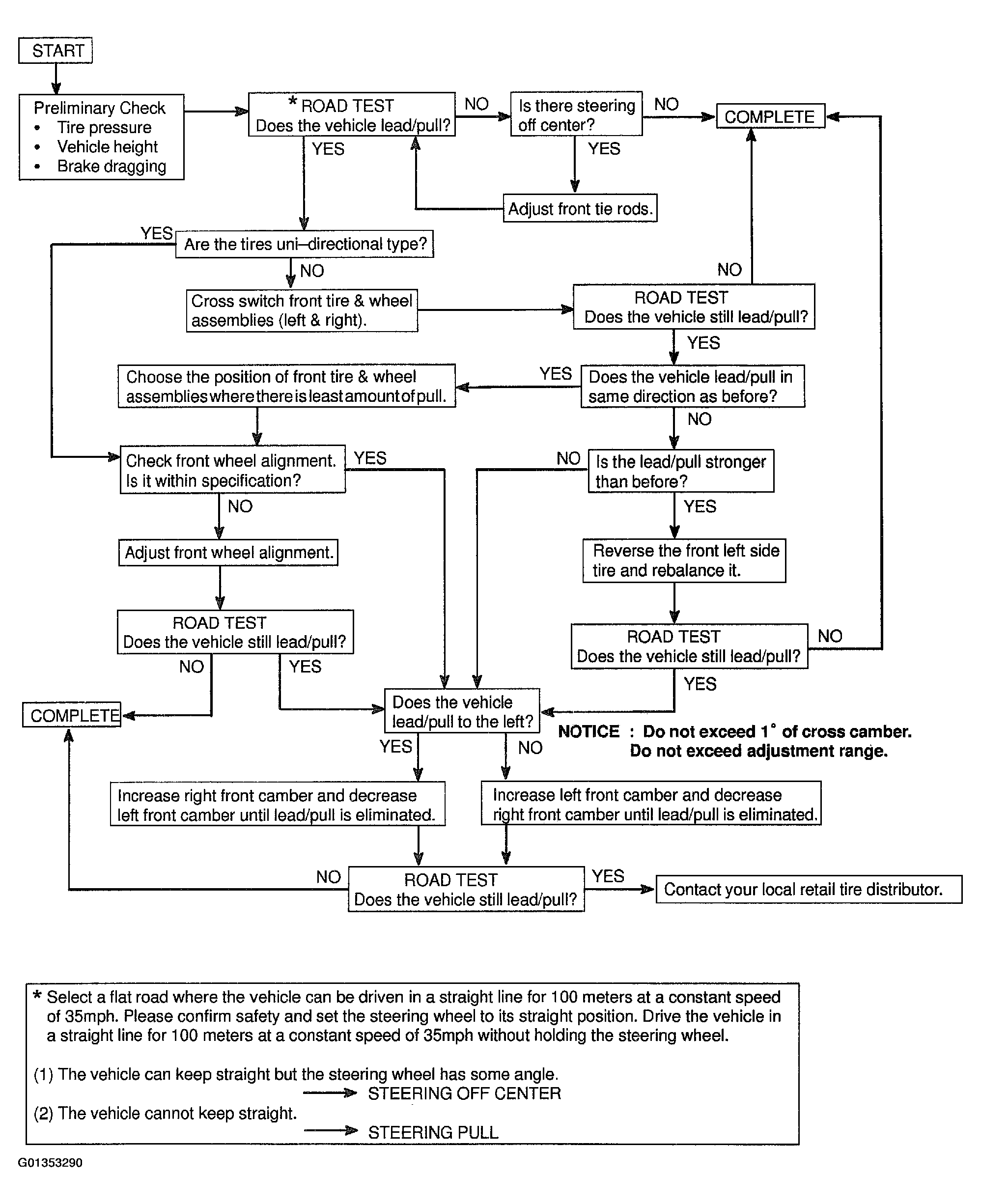

Fig 1: Vehicle Pull Troubleshooting Flow Chart
G01353290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
