Pinout Values and Diagnostic Parameters

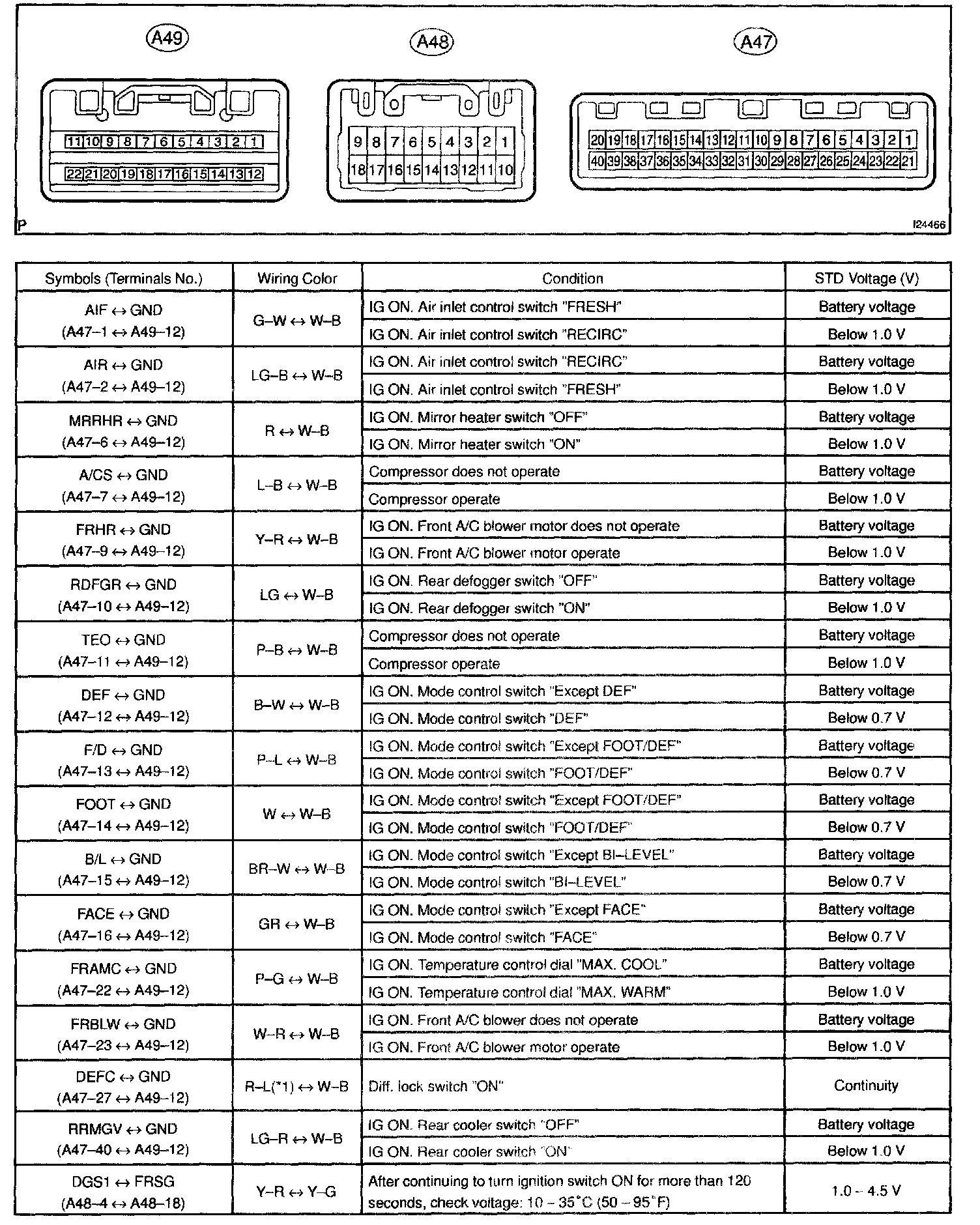

Terminals Of ECU/Pinouts - Front A/C Amplifier Part 1:

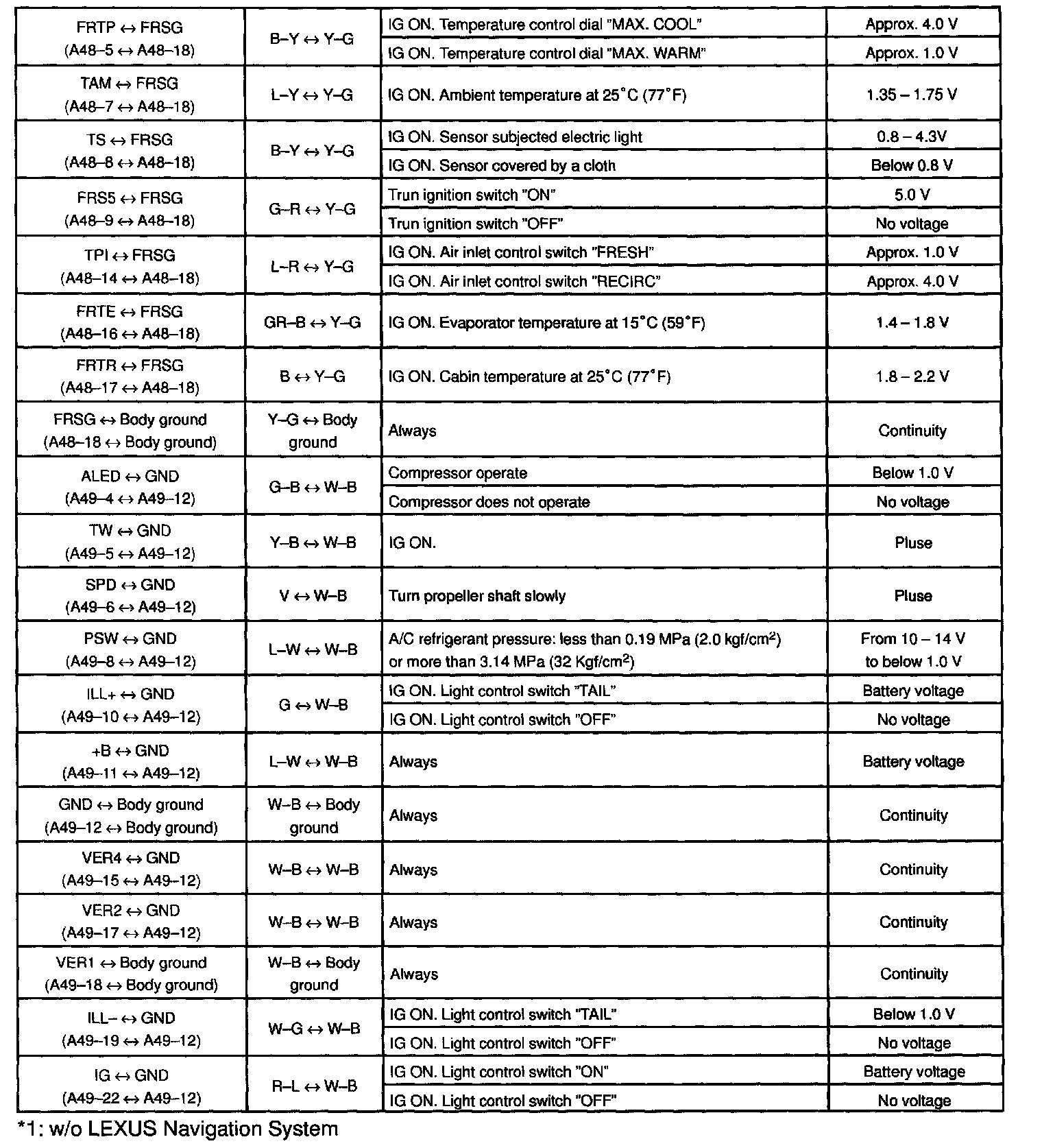

Terminals Of ECU/Pinouts - Front A/C Amplifier Part 2:

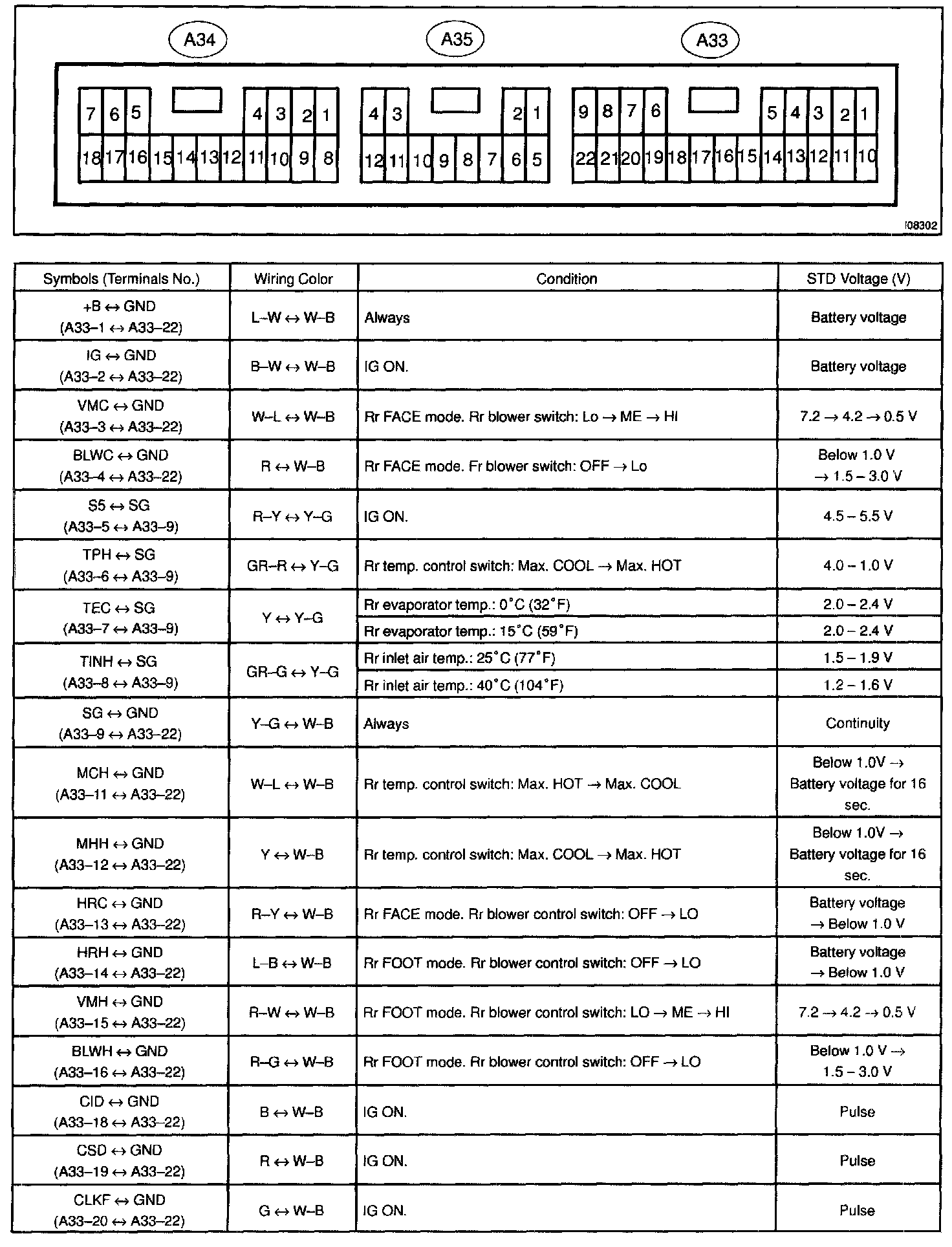

Terminals Of ECU/Pinouts - Rear A/C Amplifier Part 1:

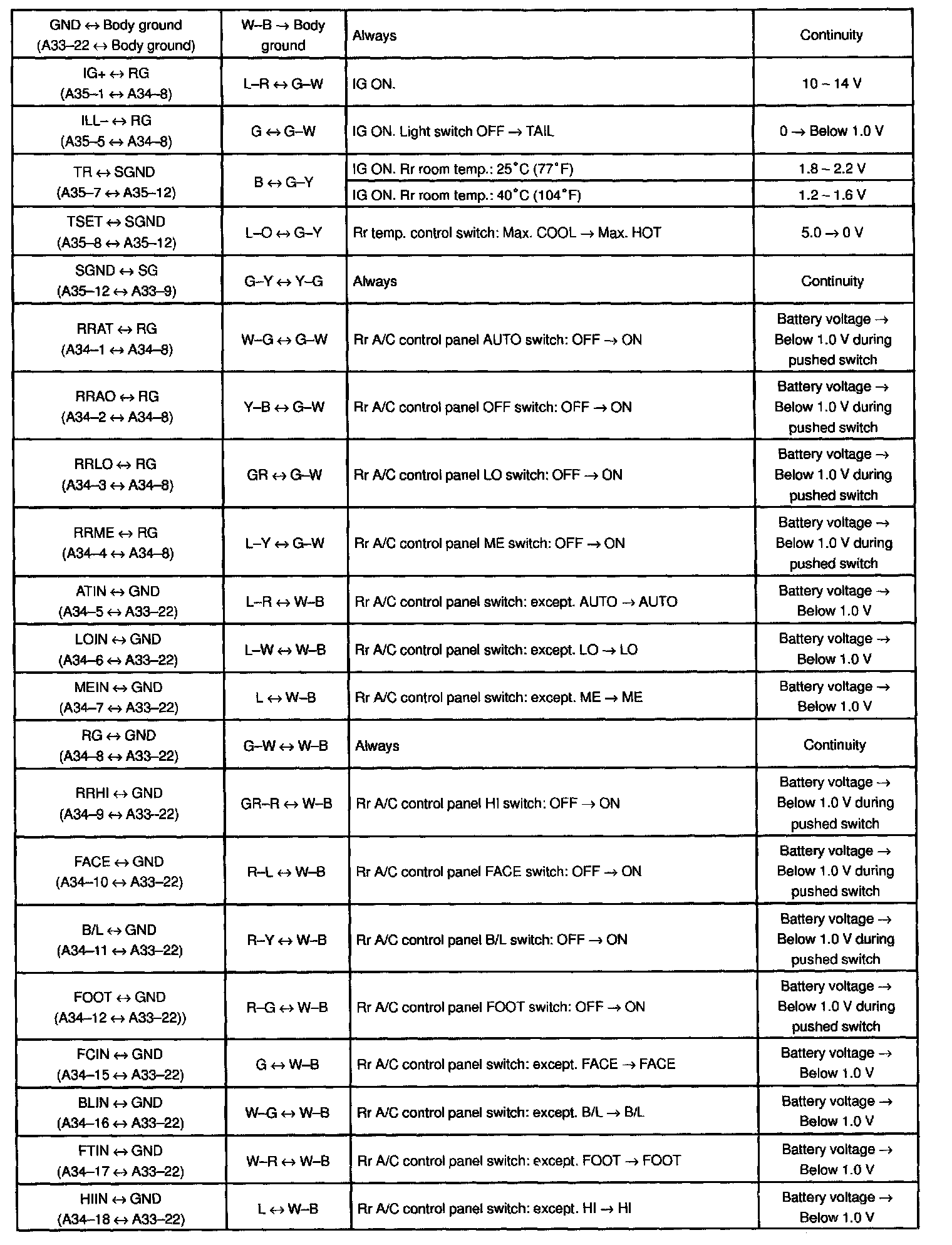

Terminals Of ECU/Pinouts - Rear A/C Amplifier Part 2:
