Lexus
>>
2003
>>
LX 470 V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
Front
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Front
Part 1 Of 3:
Part 2 Of 3:
Part 3 Of 3:

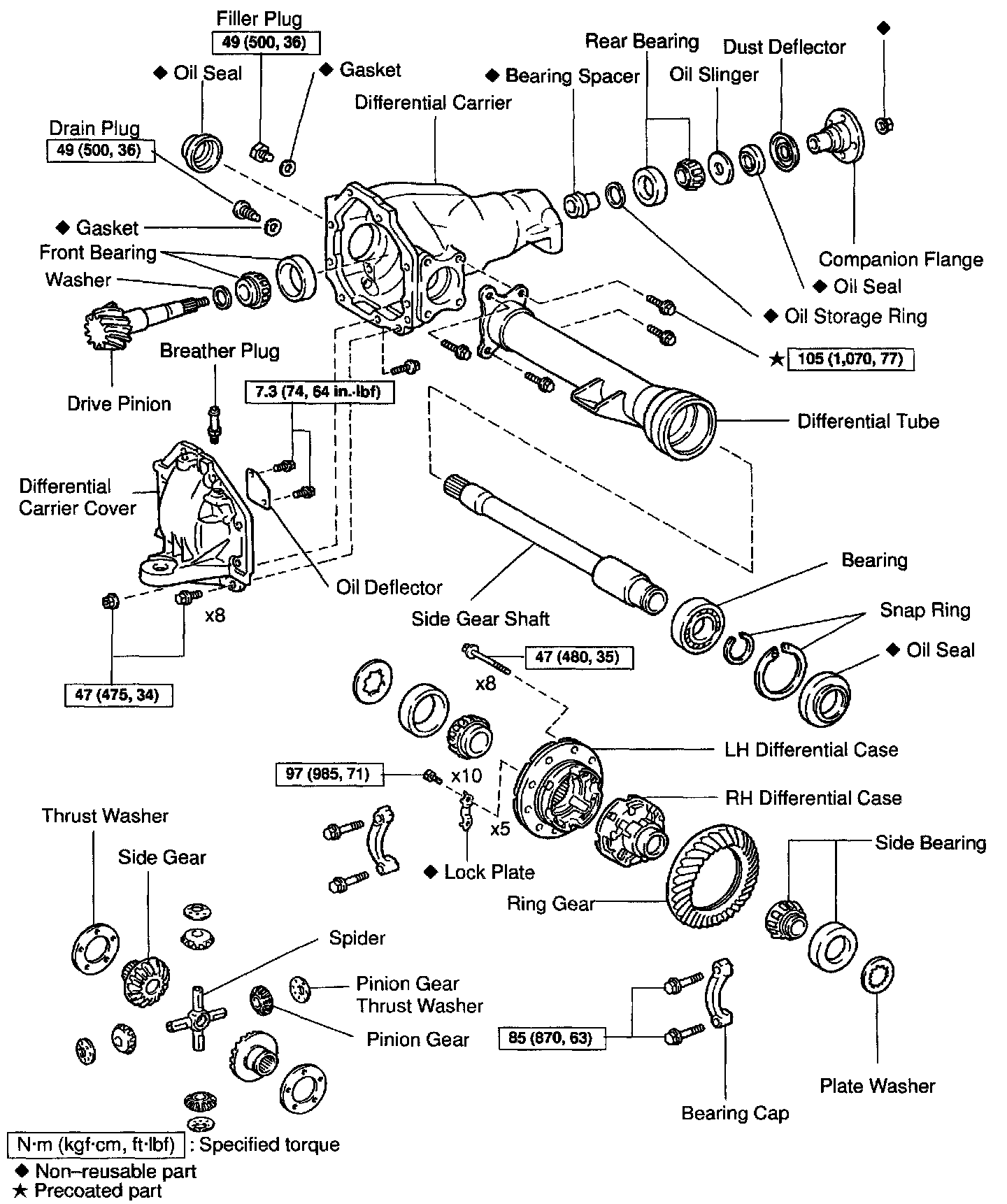

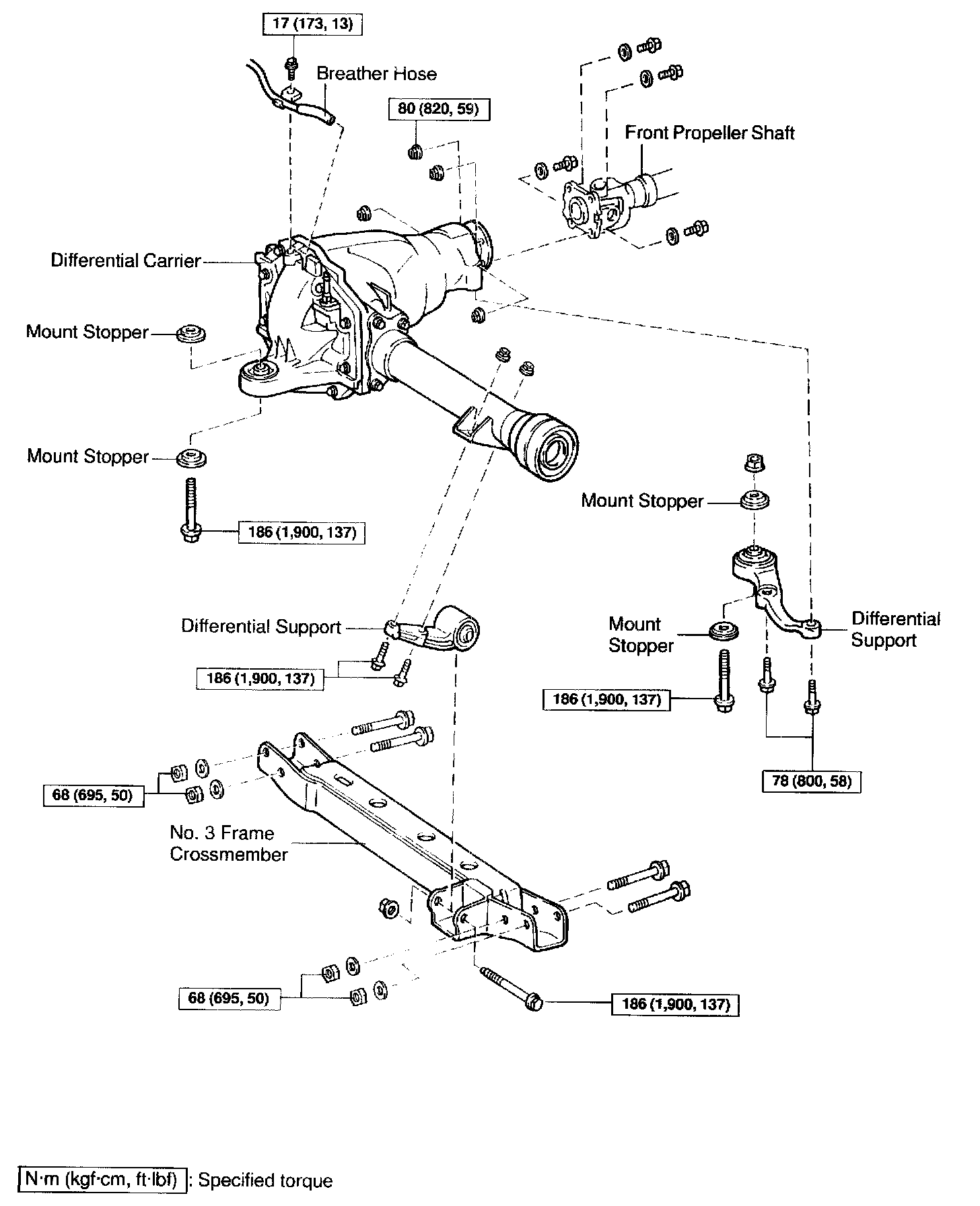

DIFFERENTIAL CARRIER
REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
