Control Assembly, HVAC

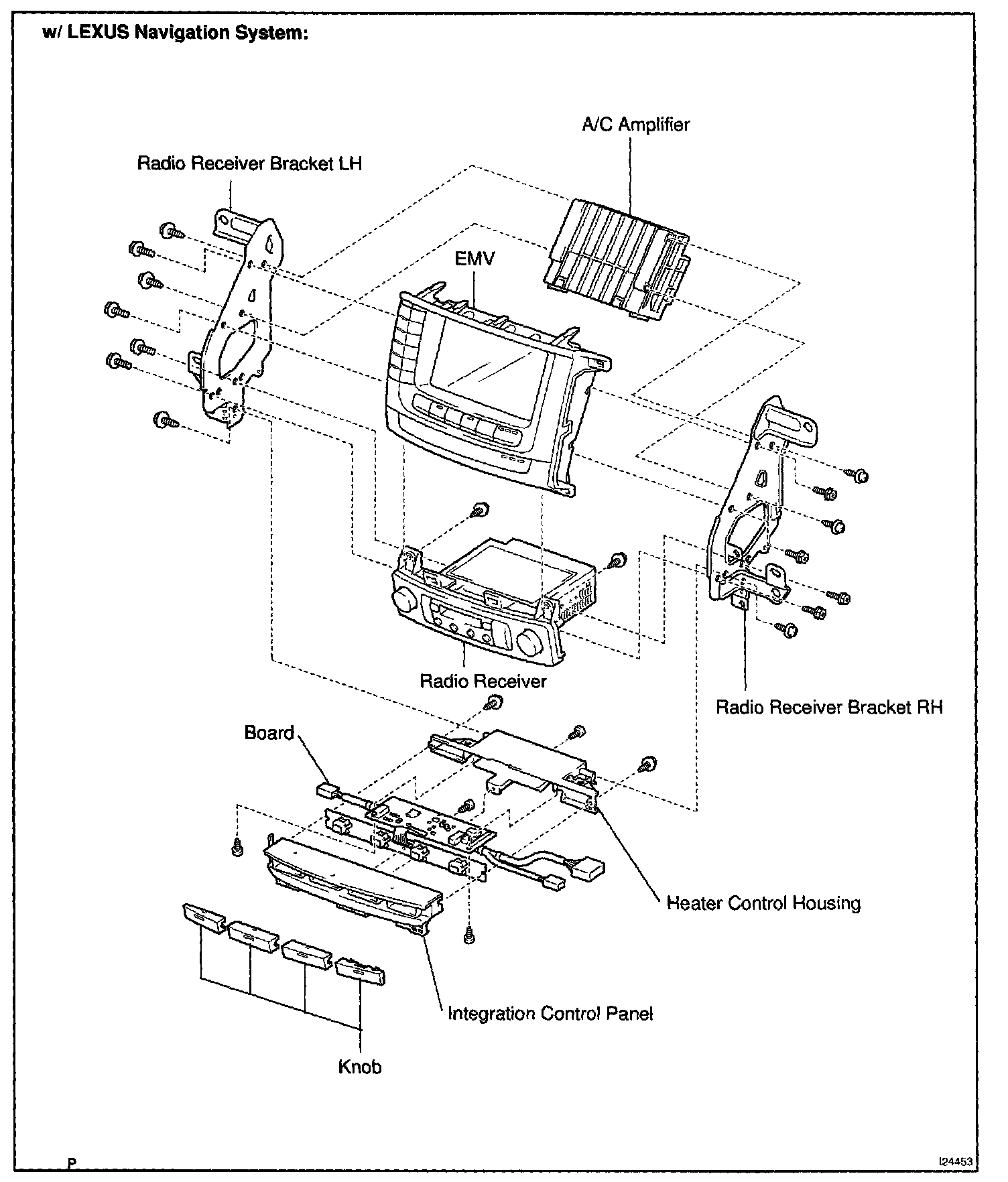

Air Conditioning Control Assembly Part 1:

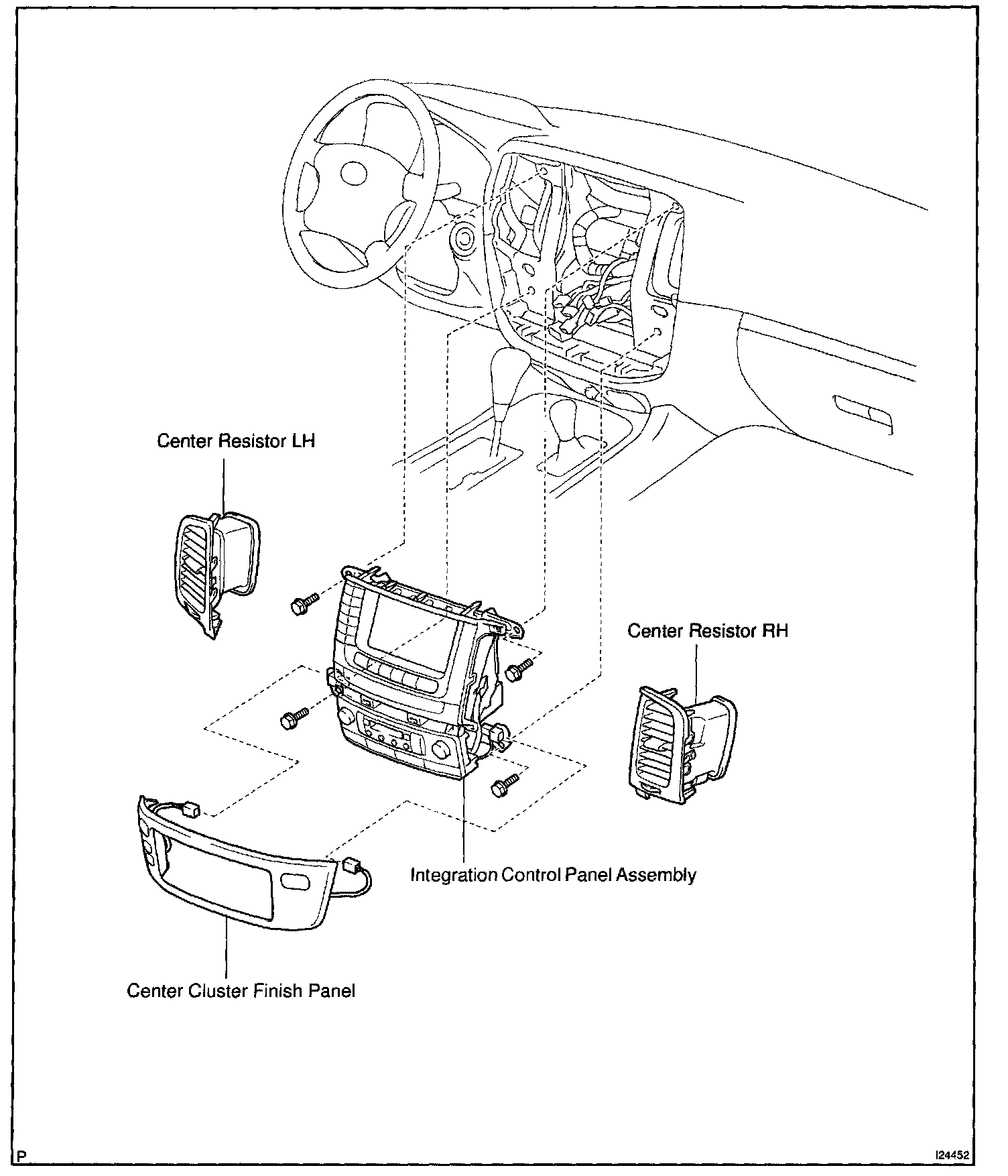

Air Conditioning Control Assembly Part 2:

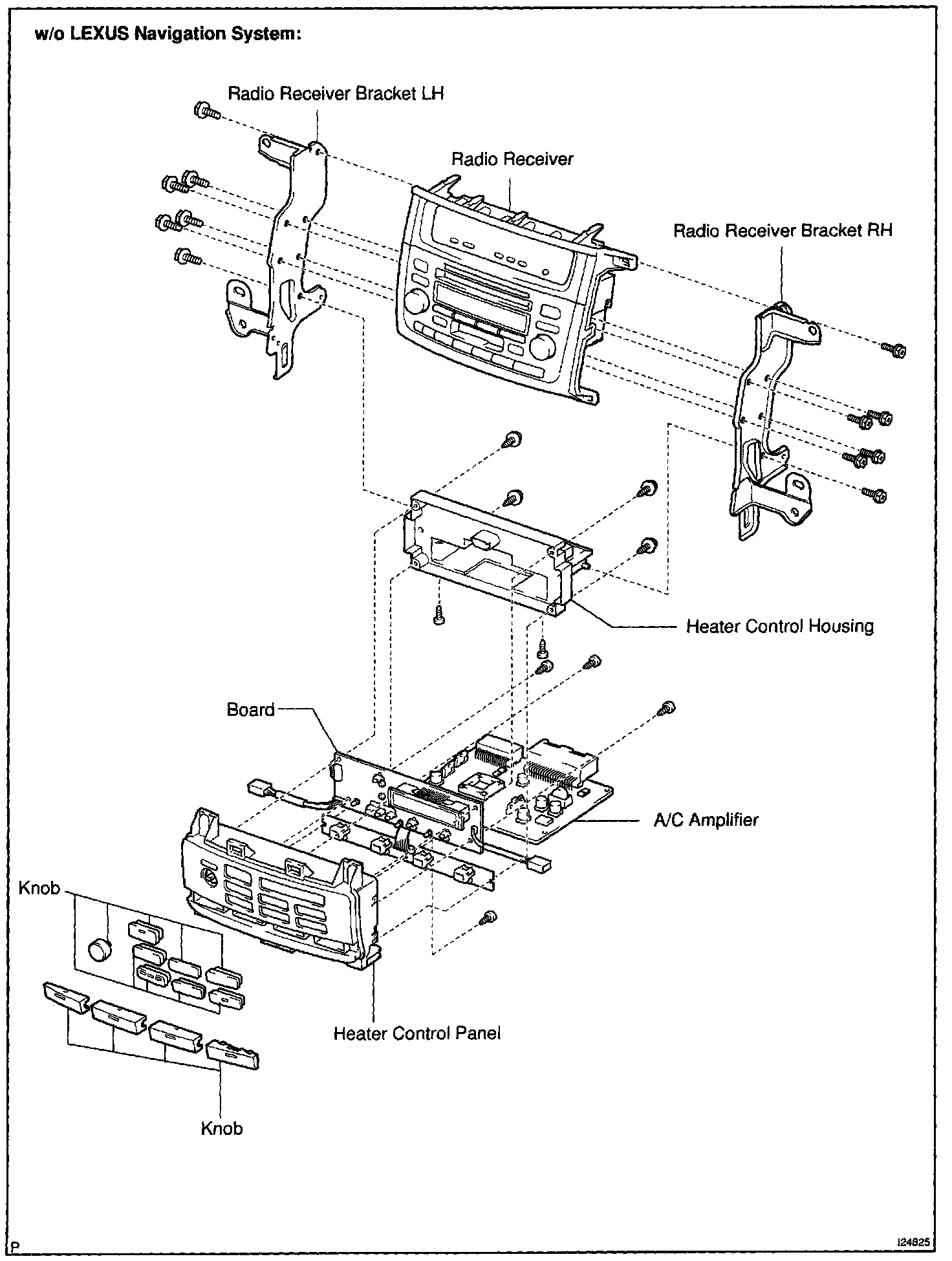

Air Conditioning Control Assembly Part 3:
