Control Switch Circuit (Cruise Control Switch)
CIRCUIT DESCRIPTIONThis circuit carries the -/SET, +/RES and CANCEL signals (each voltage) to the ECM.
Wiring Diagram:

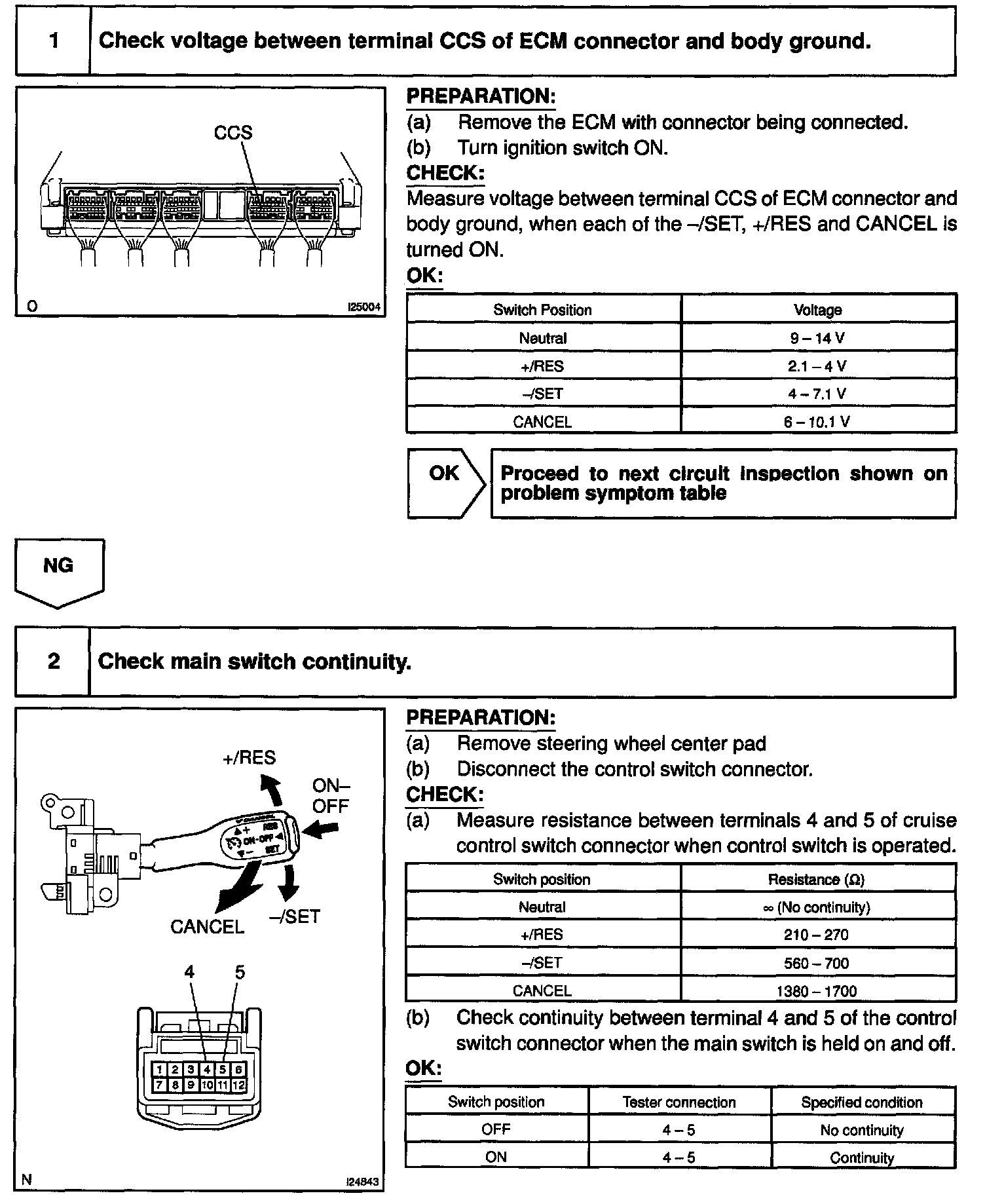

Step 1 - 2:

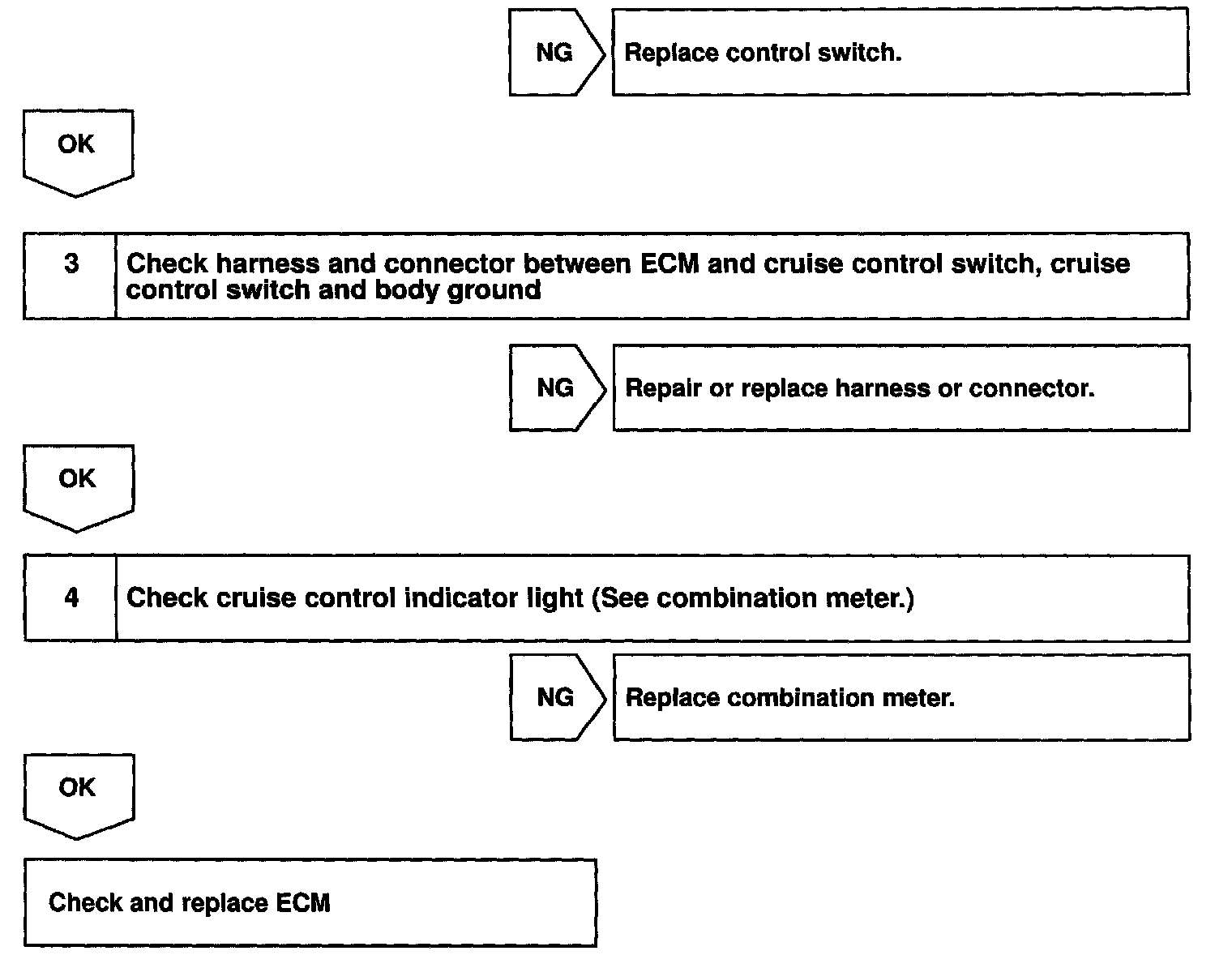

Step 2 (Continued) - 4:
INSPECTION PROCEDURE
This circuit carries the -/SET, +/RES and CANCEL signals (each voltage) to the ECM.
INSPECTION PROCEDURE
