Keyless Entry Module: Locations

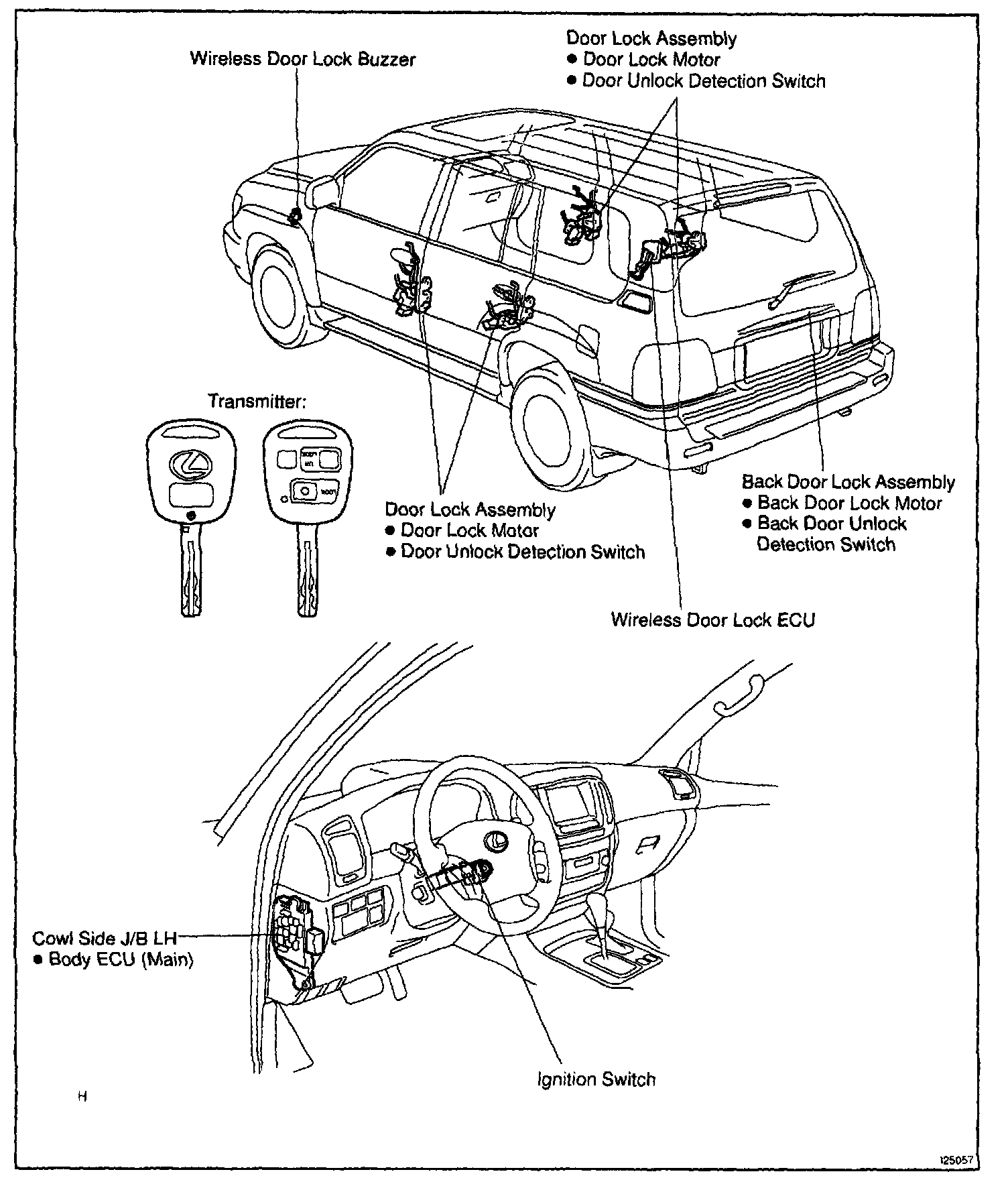

Wireless Door Lock Control System:

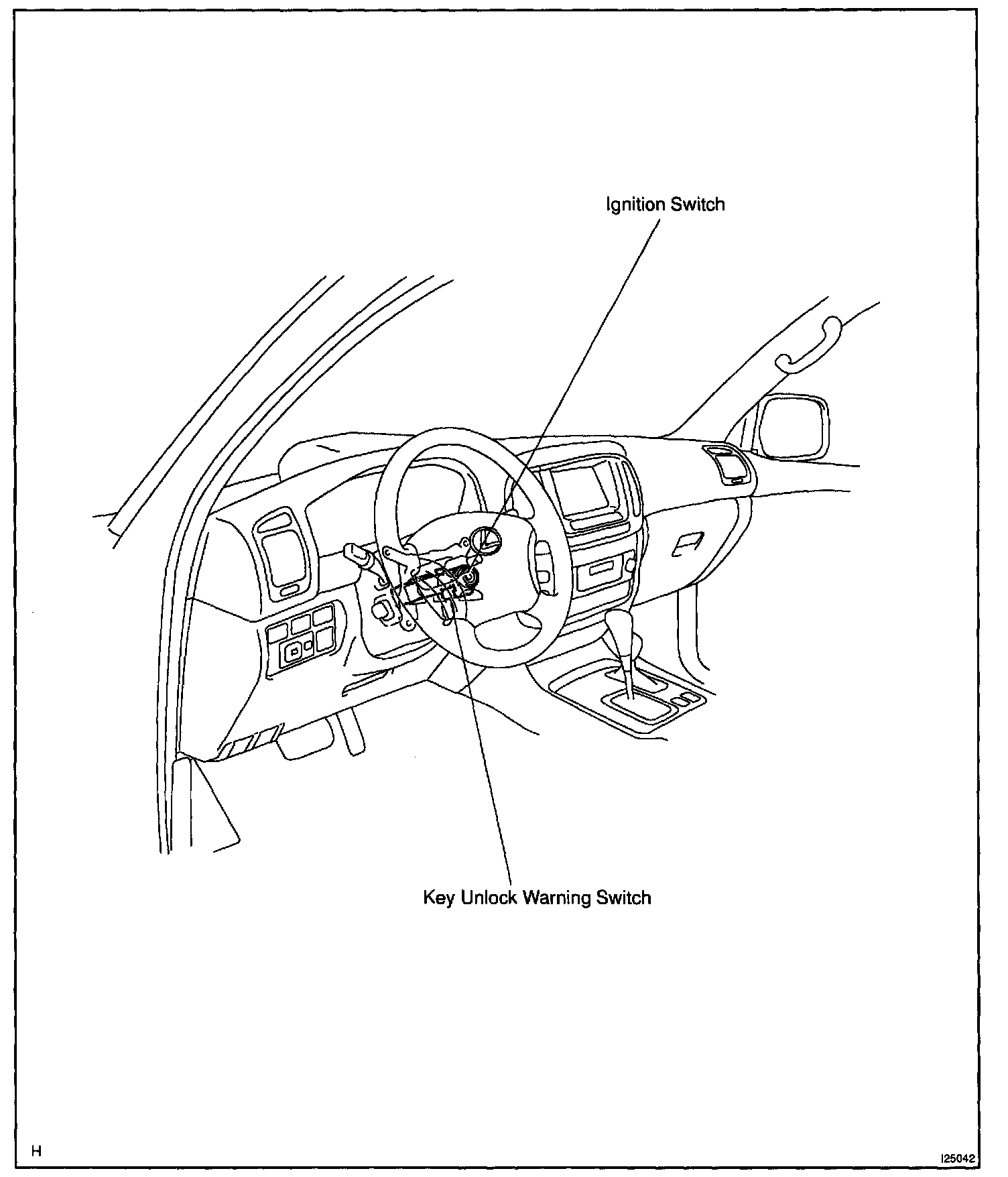

Ignition Switch And Key Unlock Warning Switch:

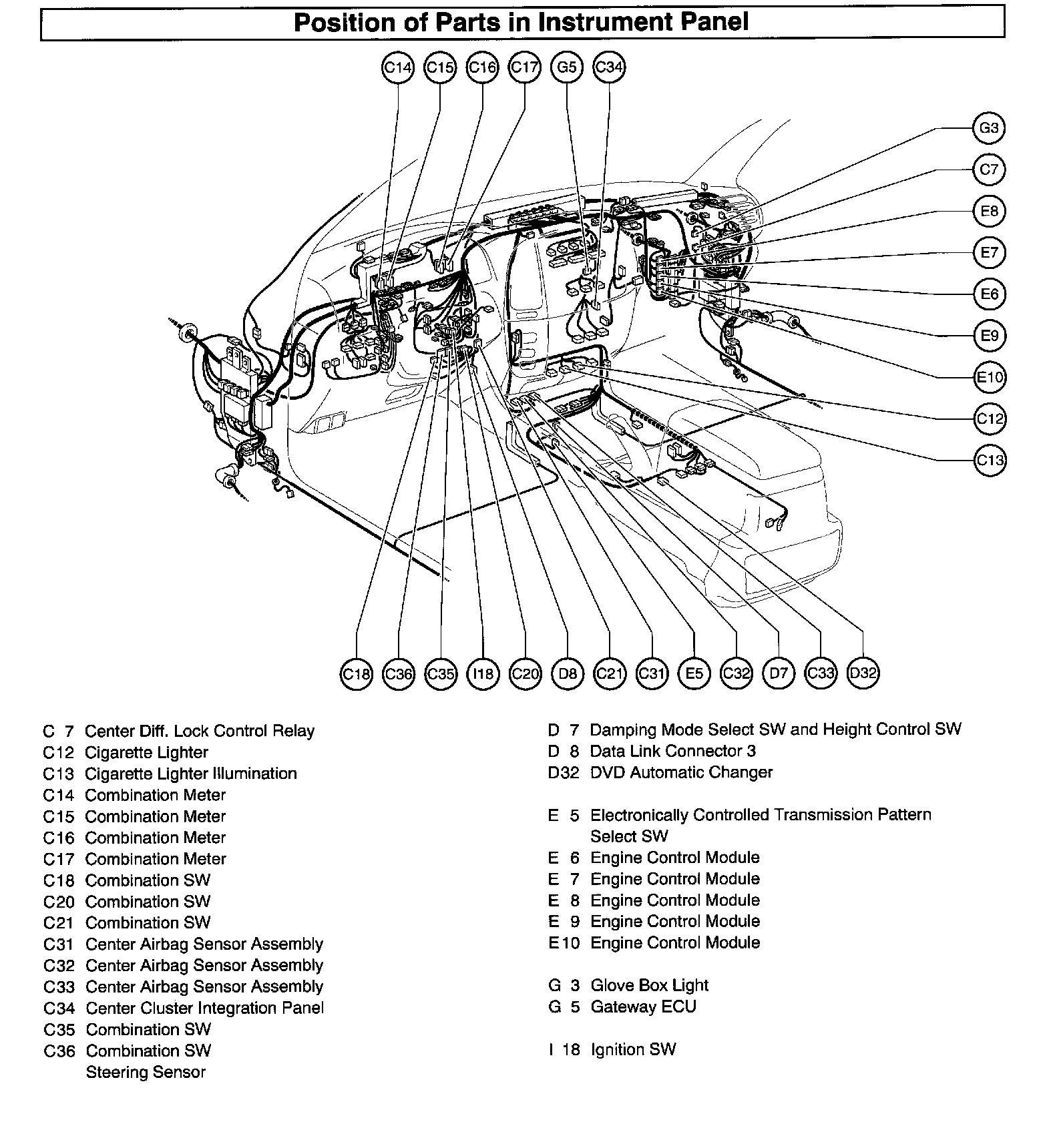

Ce - Ig:
