Diagnostic Trouble Code Definitions: VSC

For VSC diagnostic trouble code definitions see Fig 1. For DTC of VSC sensor check function see Fig 2.

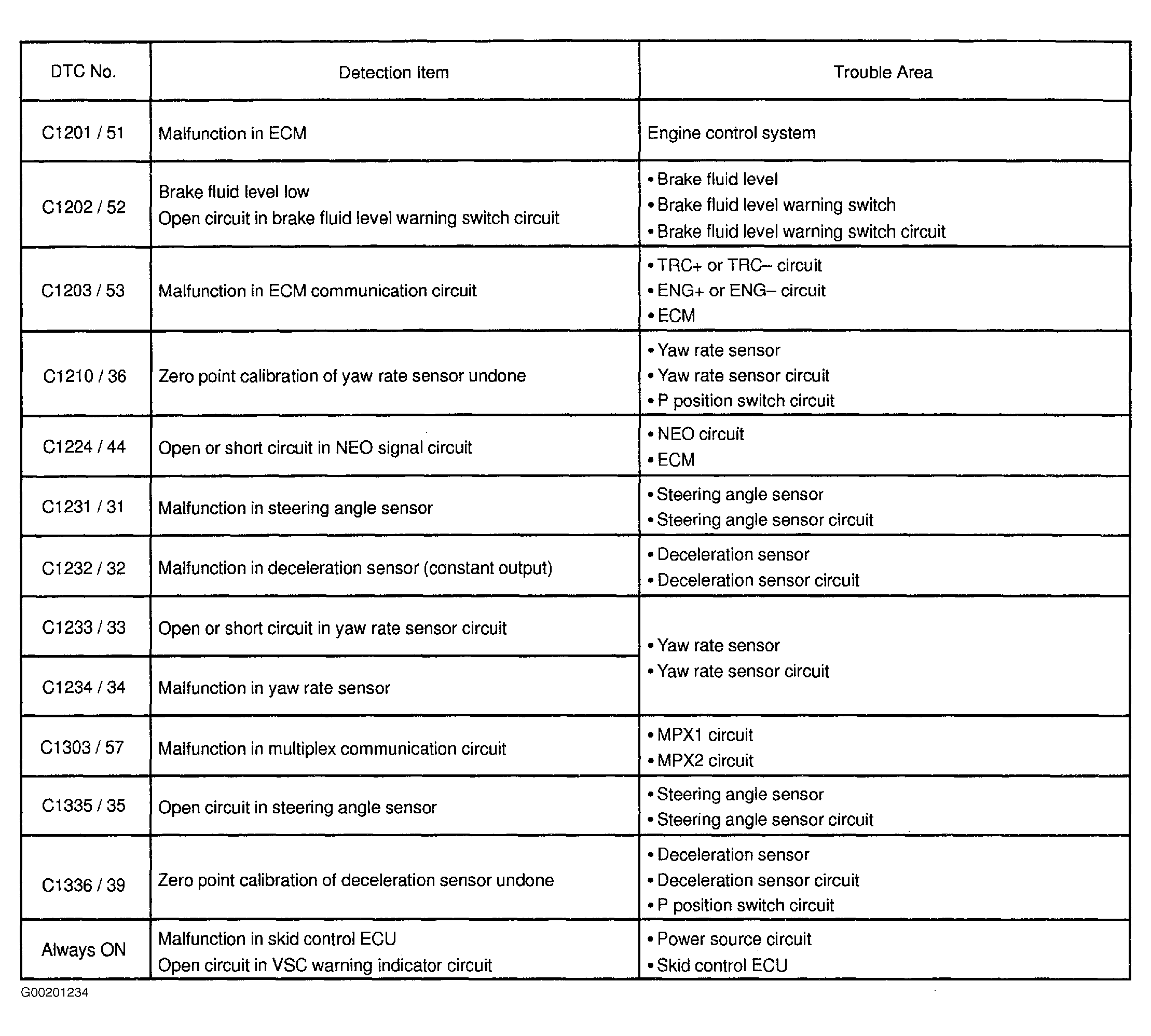

Fig 1: Identifying DTCs Of VSC

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying DTC Of VSC Sensor Check Function

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
