Diagnostic Trouble Code Definitions: Abs

For ABS diagnostic trouble code definitions see Fig 1 and Fig 2 .

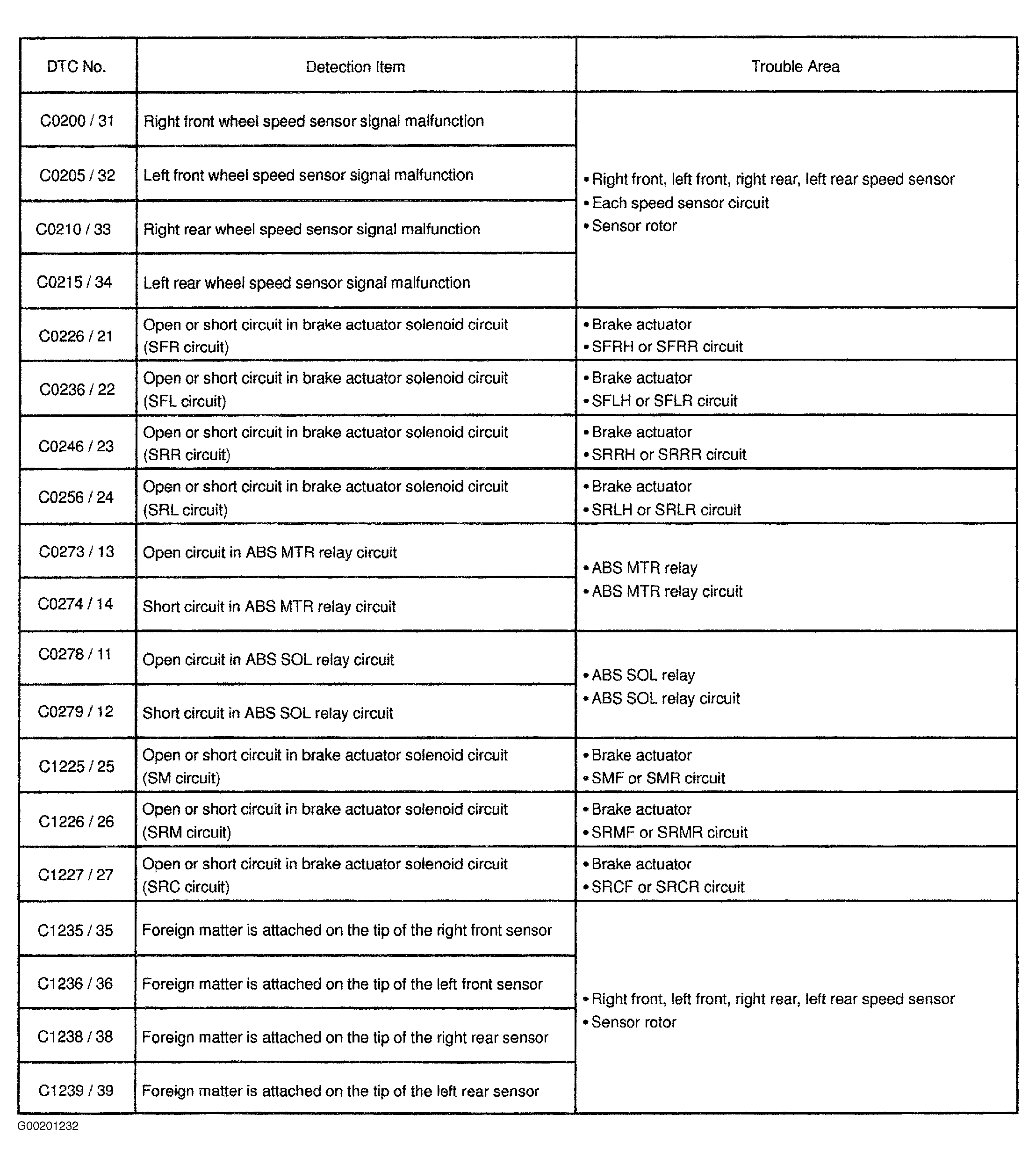

Fig 1: Identifying DTCs Of ABS (1 Of 2)
G00201232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

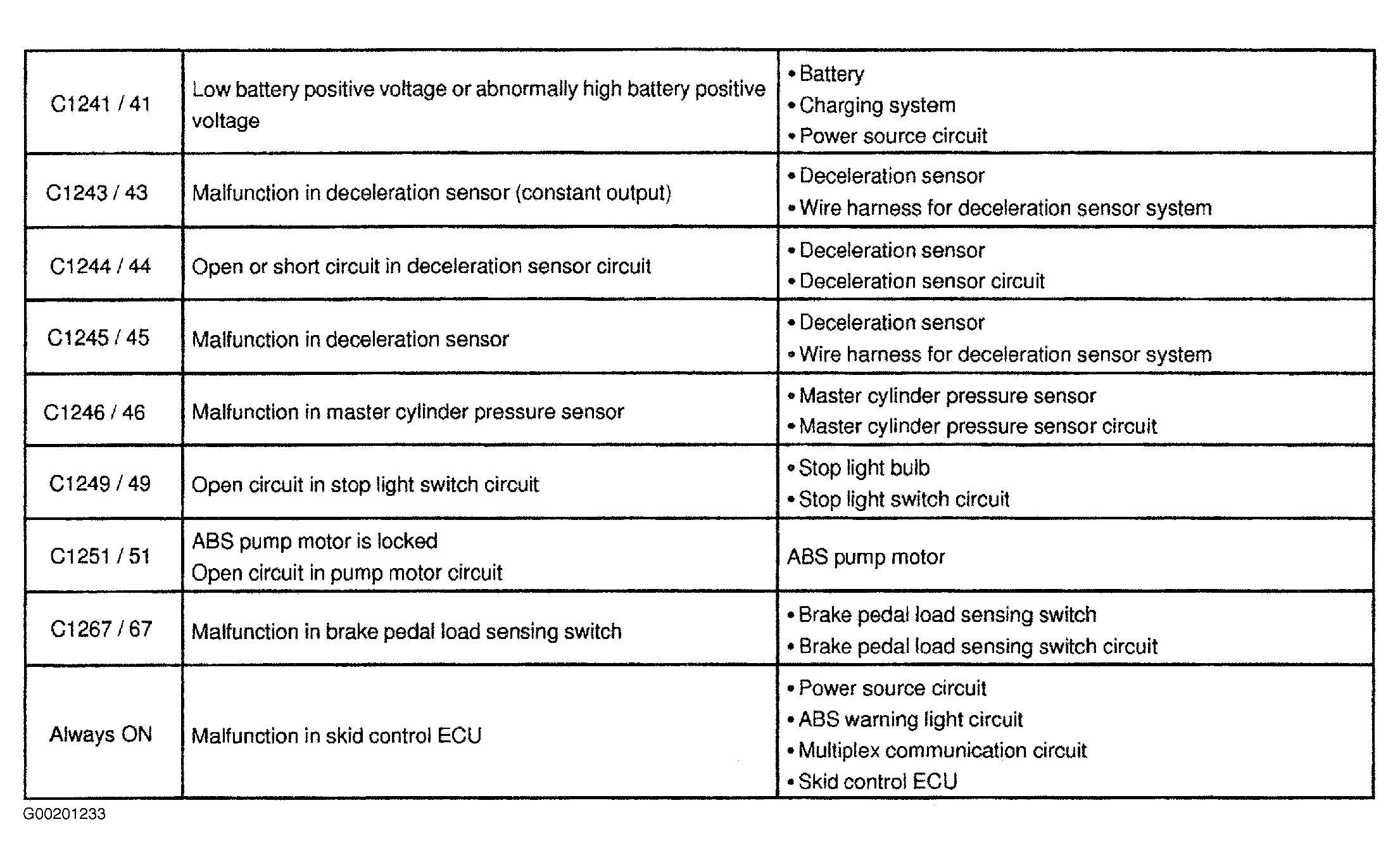

Fig 2: Identifying DTCs Of ABS (2 Of 2)
G00201233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
