Parts Location

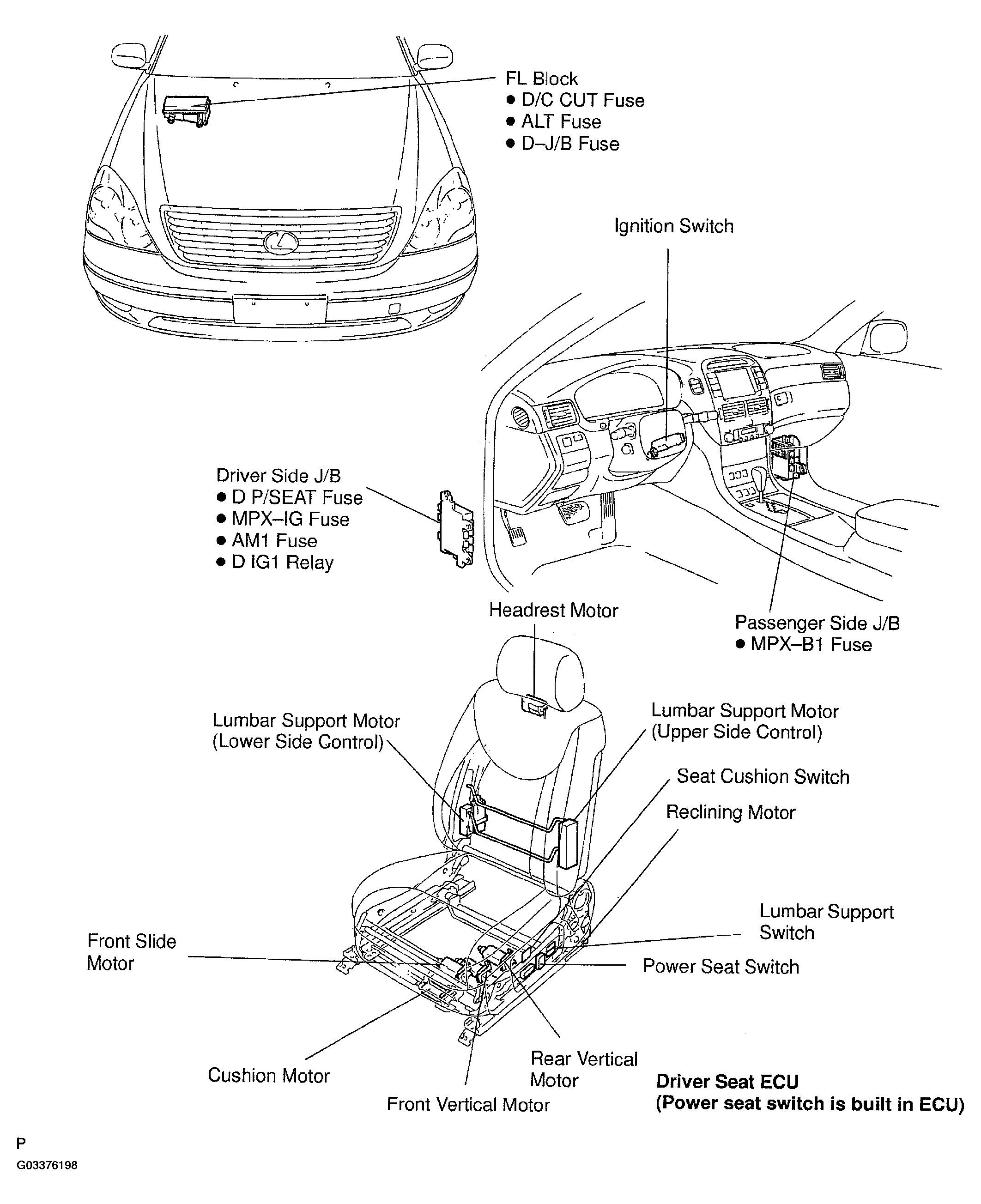

Fig 1: Identifying Power Seat Control System Parts Location
G03376198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
