Circuit Description

The front light (body No. 5) ECU receives headlight HI switch information from the combination switch and lights the headlight. For circuit diagram, see Fig 1.

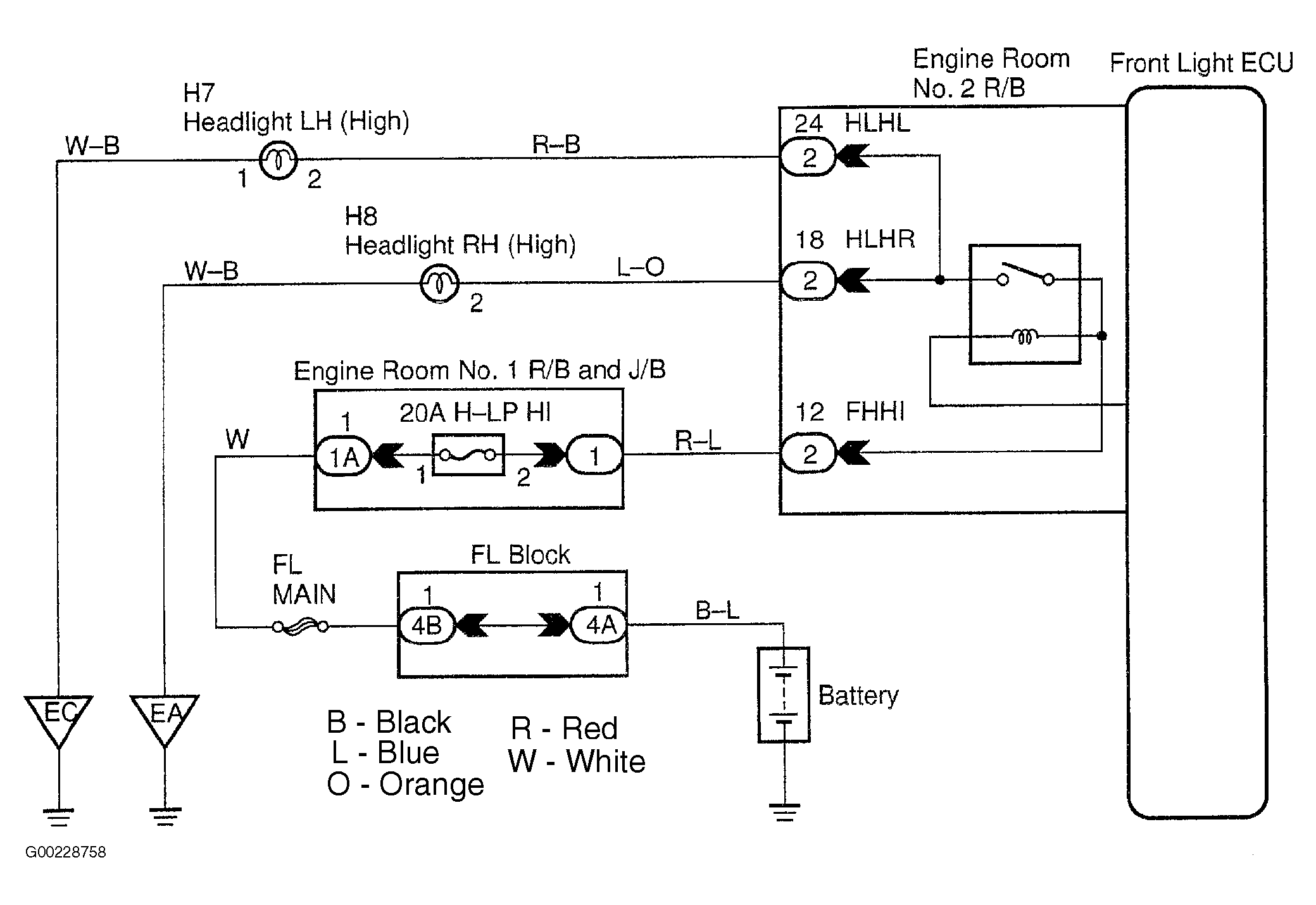

Fig 1: Identifying Headlight Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
