Compressor Circuit

CIRCUIT DESCRIPTION

The A/C ECU outputs the magnetic clutch ON signal from terminal MPX2 to the ECM. When the ECM receives this signal, it sends a signal from terminal ACMG and switches the A/C magnetic clutch relay ON, thus turning the A/C compressor magnetic clutch ON.

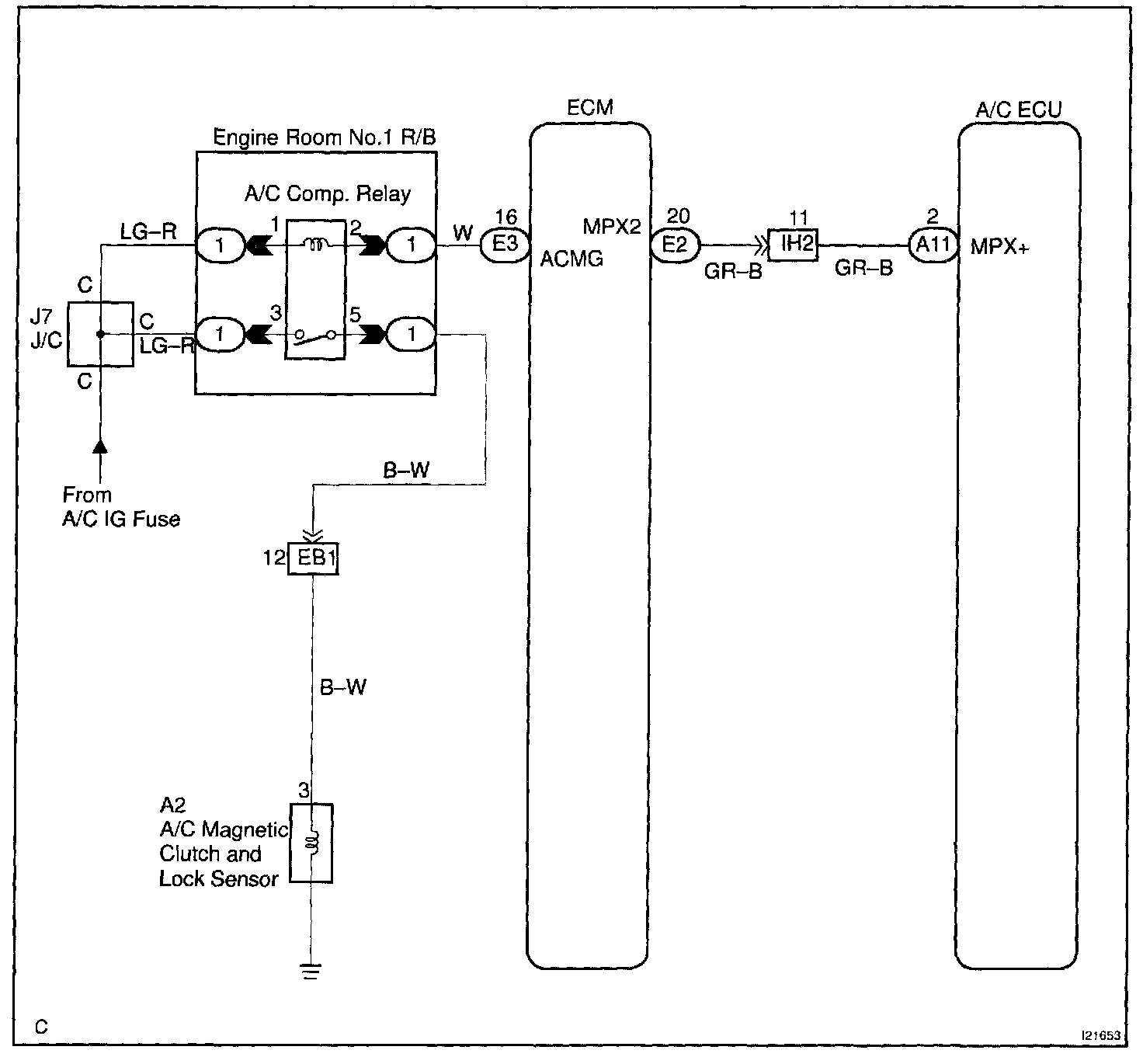

Wiring Diagram:

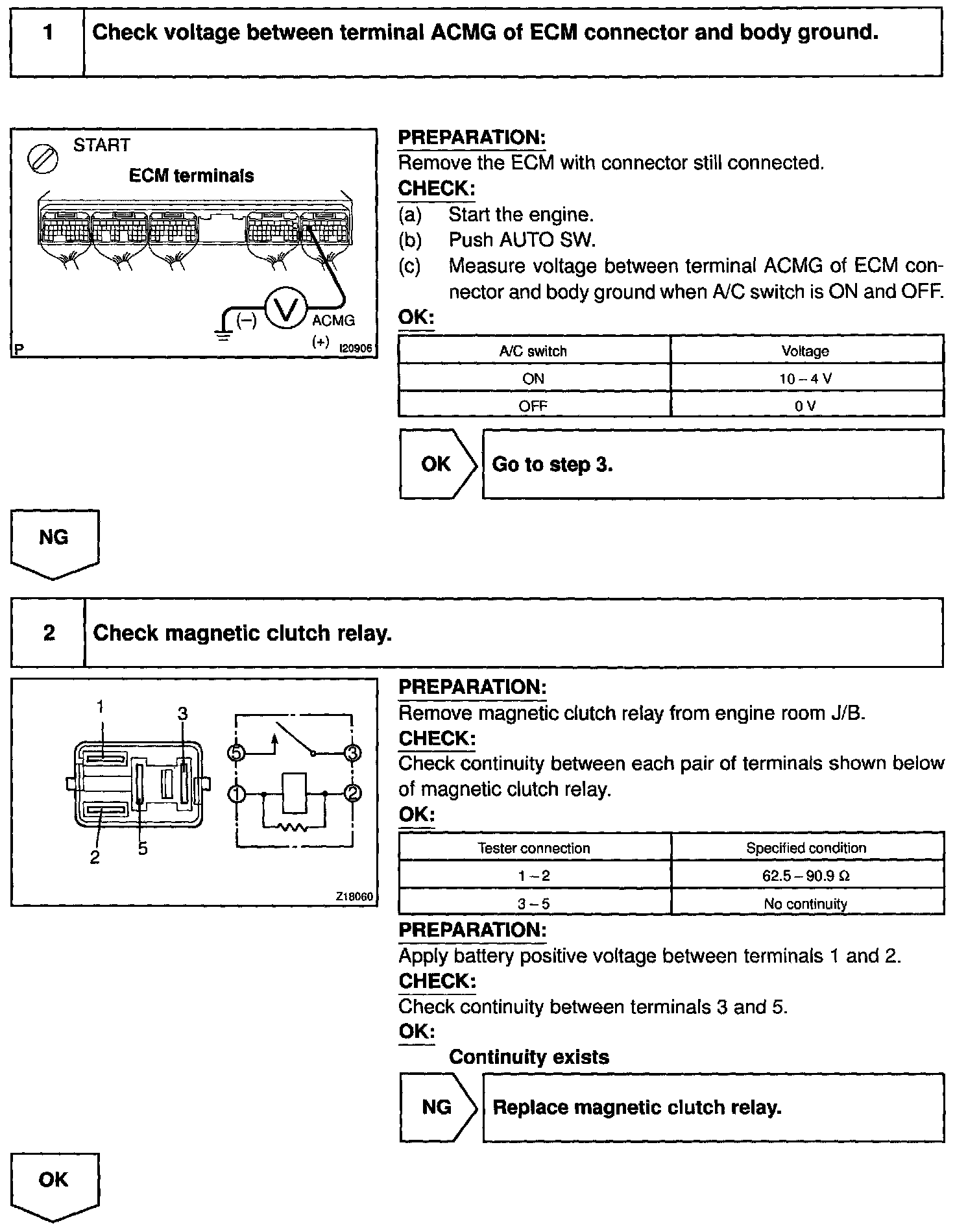

Step 1 - 2:

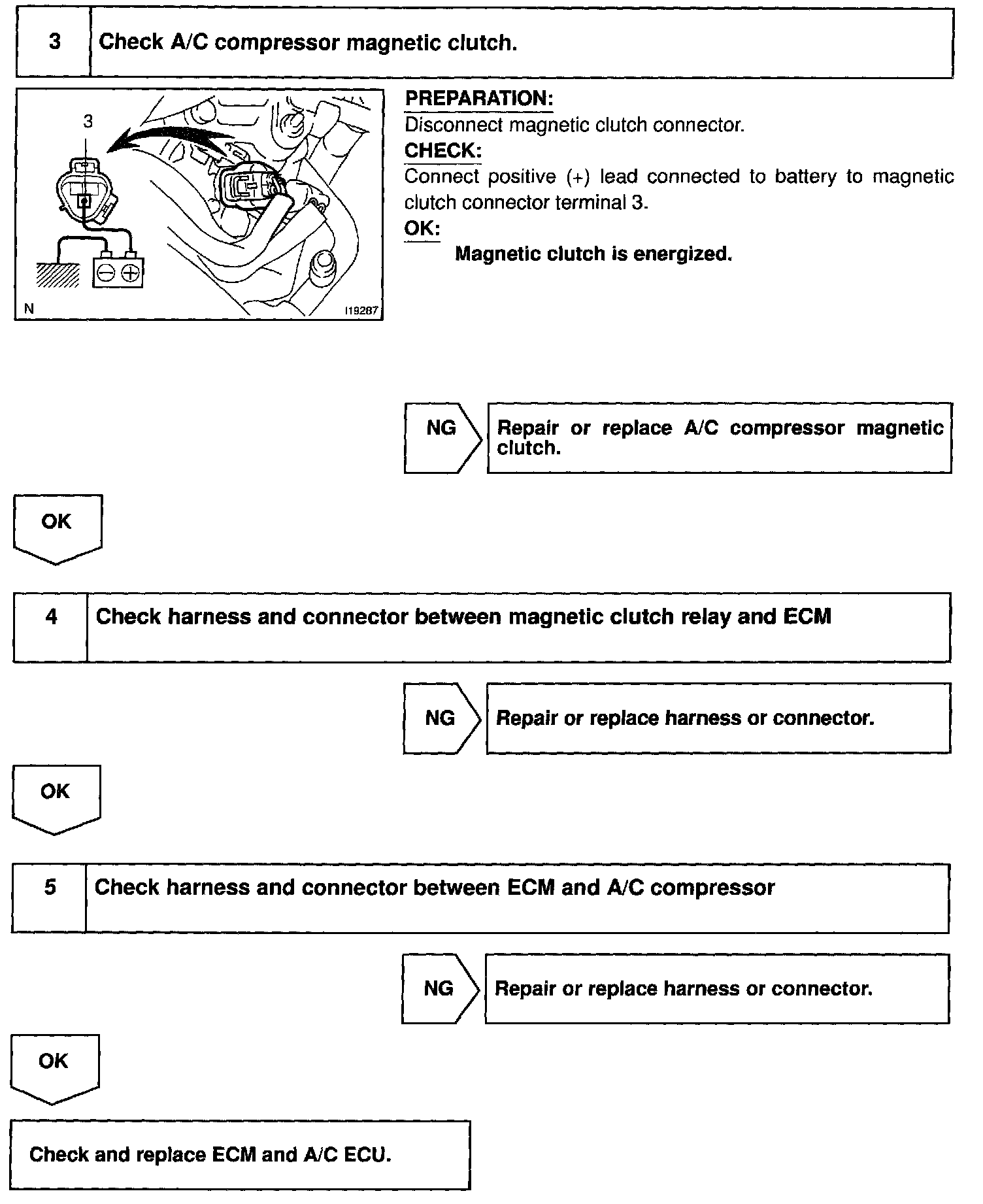

Step 3 - 5:

INSPECTION PROCEDURE
