Body Control Systems: Locations

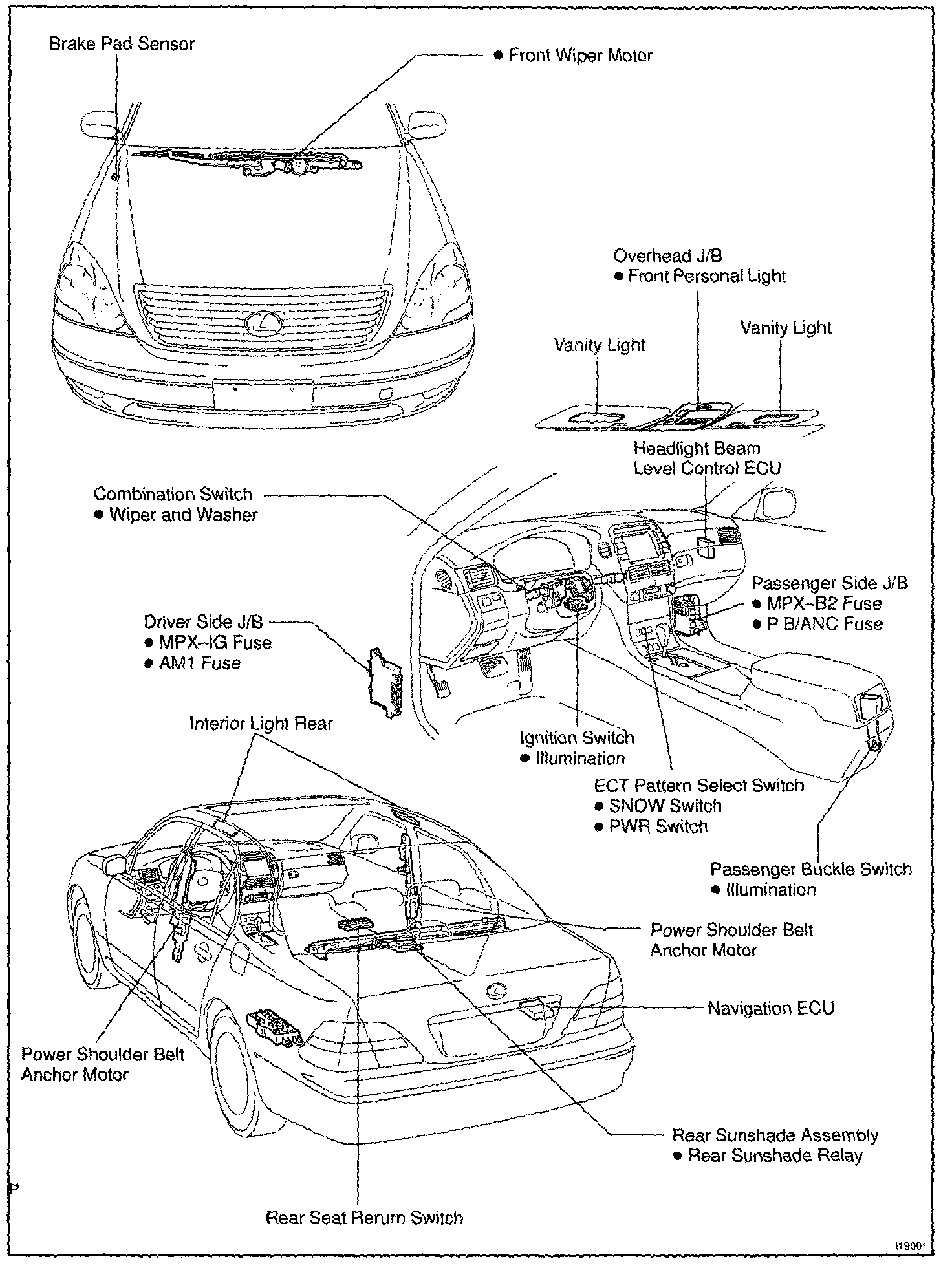

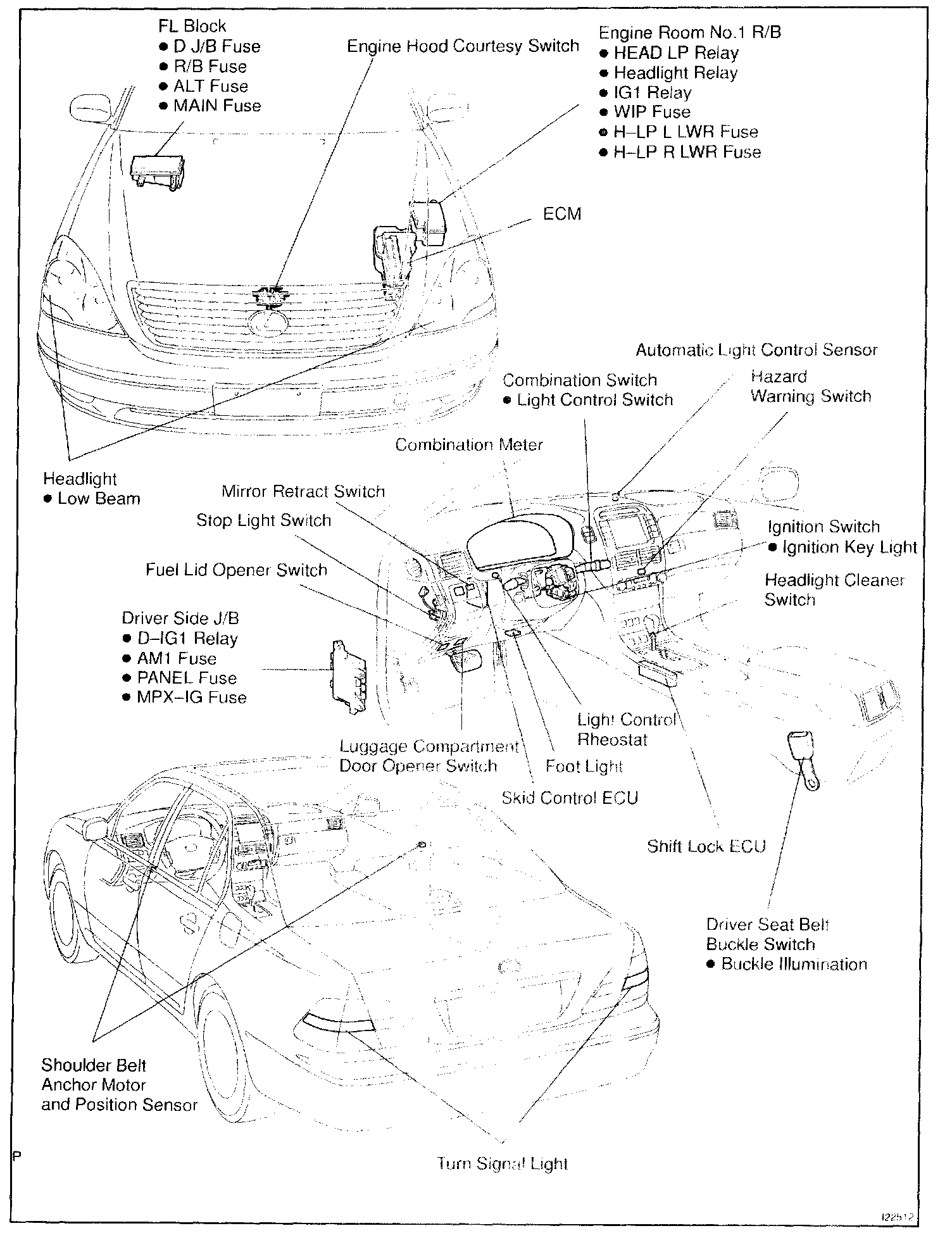

Drive Side Junction Block (Body No.2) Control System:




Passenger Side Junction Block (Body No.3) Control System:

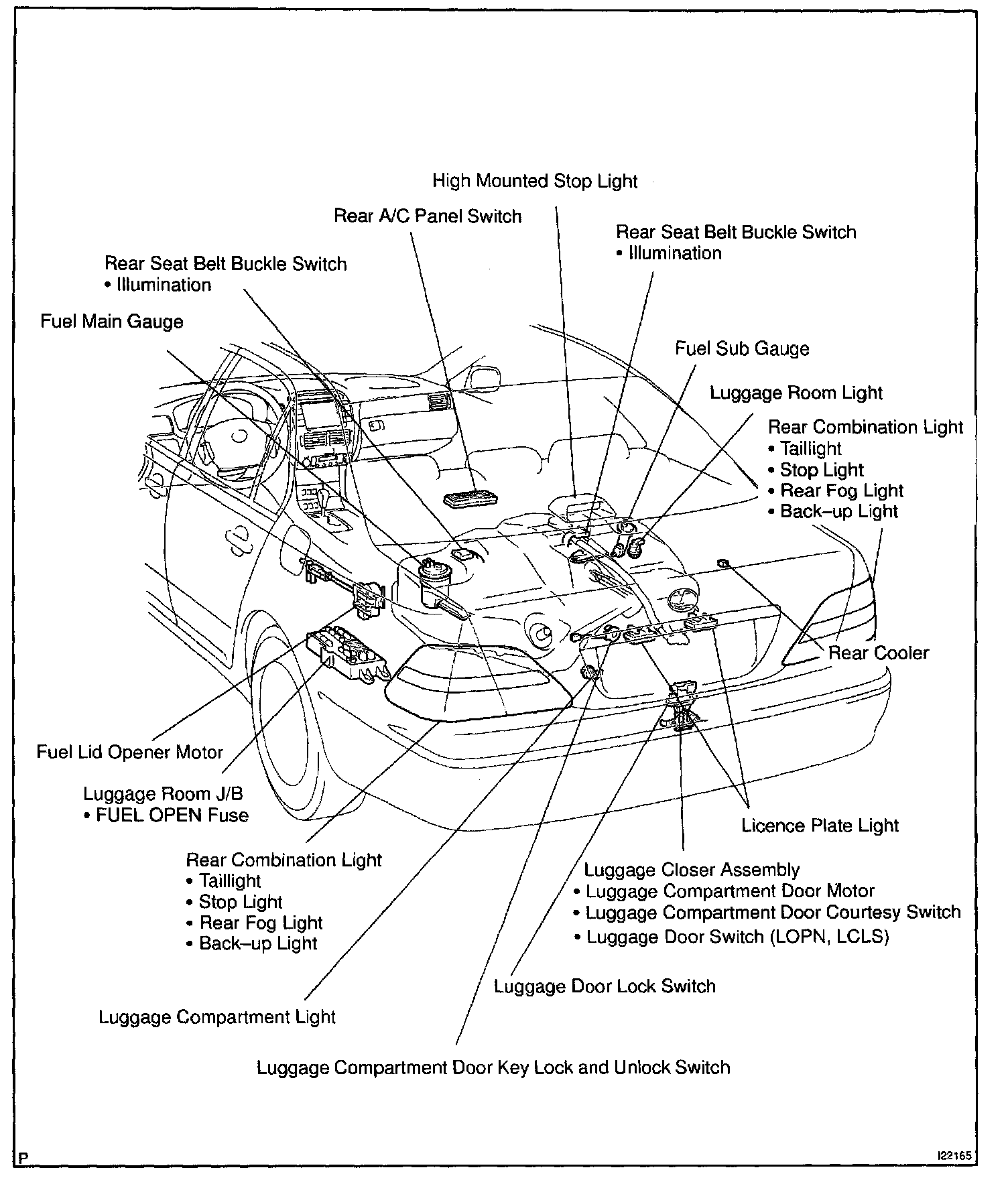

Liggage Room Junction Block (Body No.4) Control System:




Luggage Room Junction Block (Body No.4) Control System:

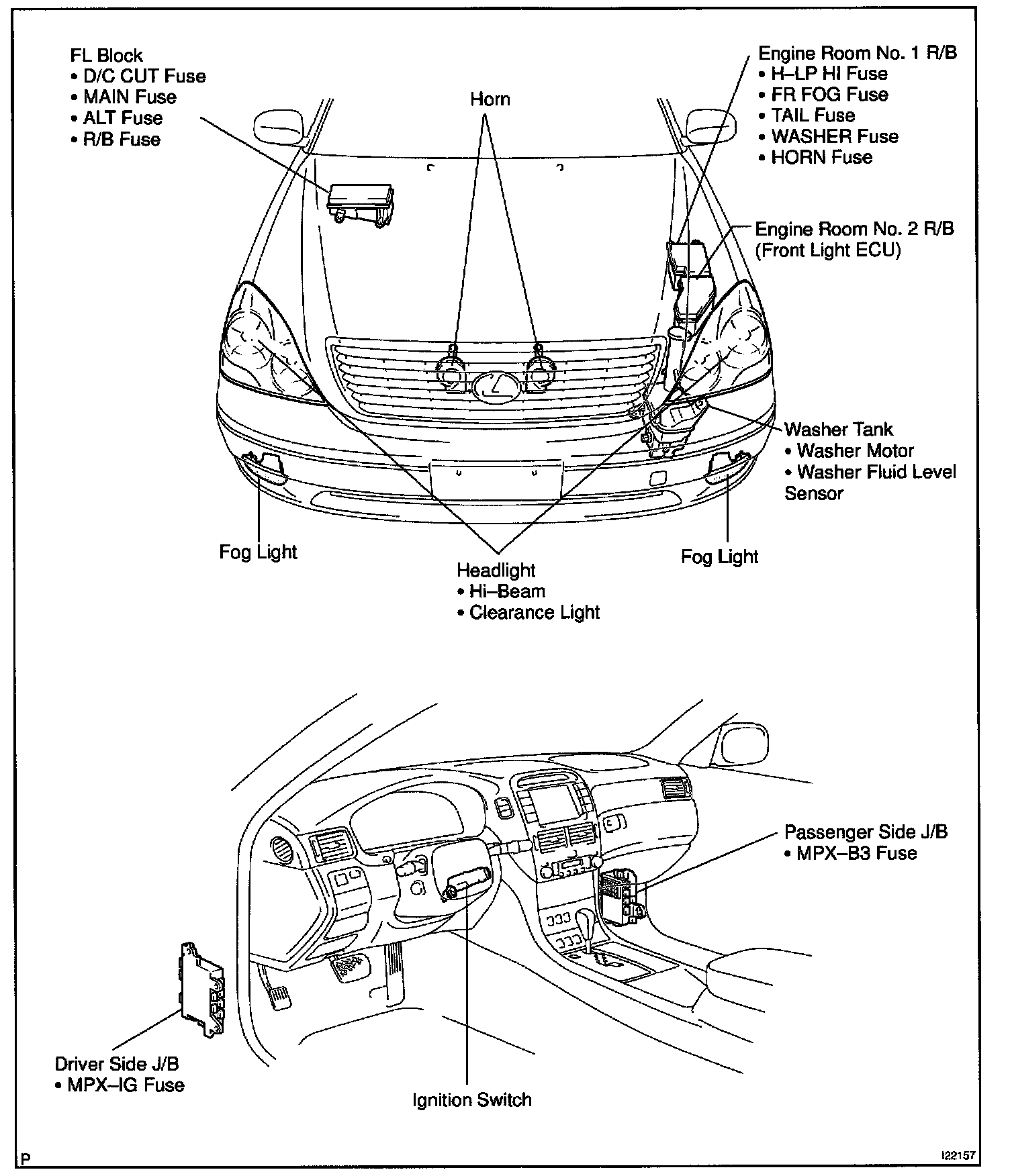

Front Light (Body No.5) Control System:

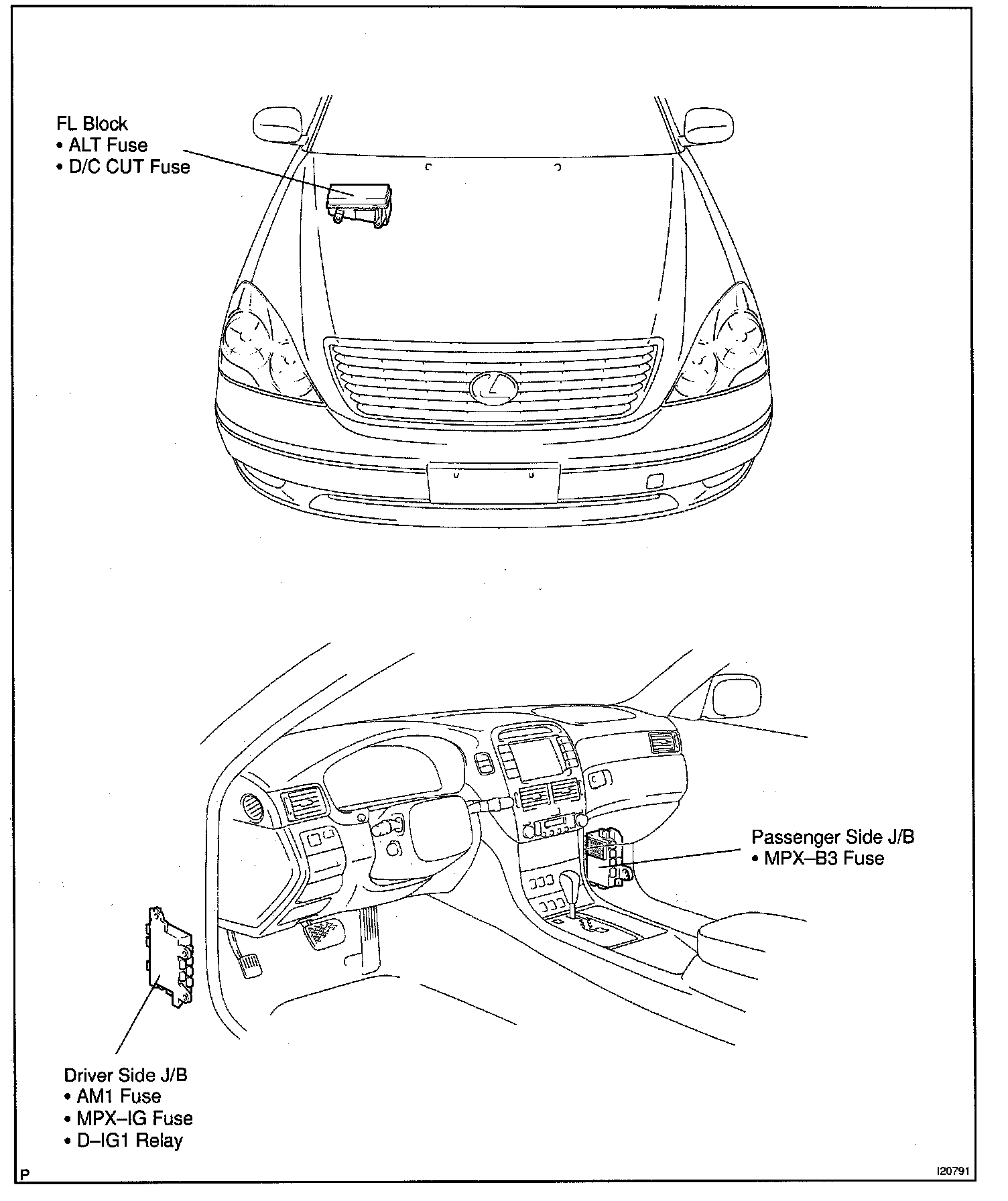

Driver Door Control System:

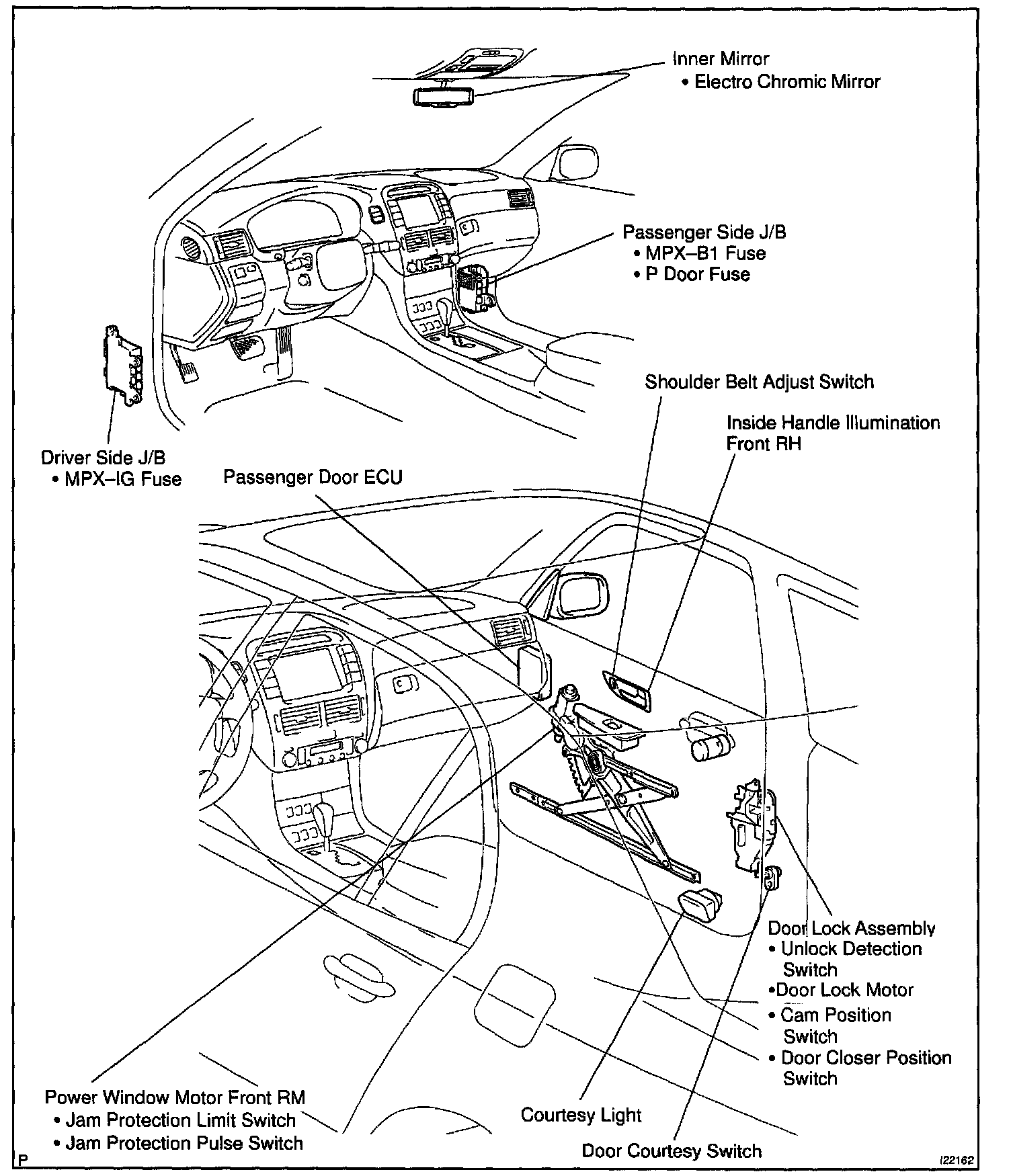

Passenger Door Control System:

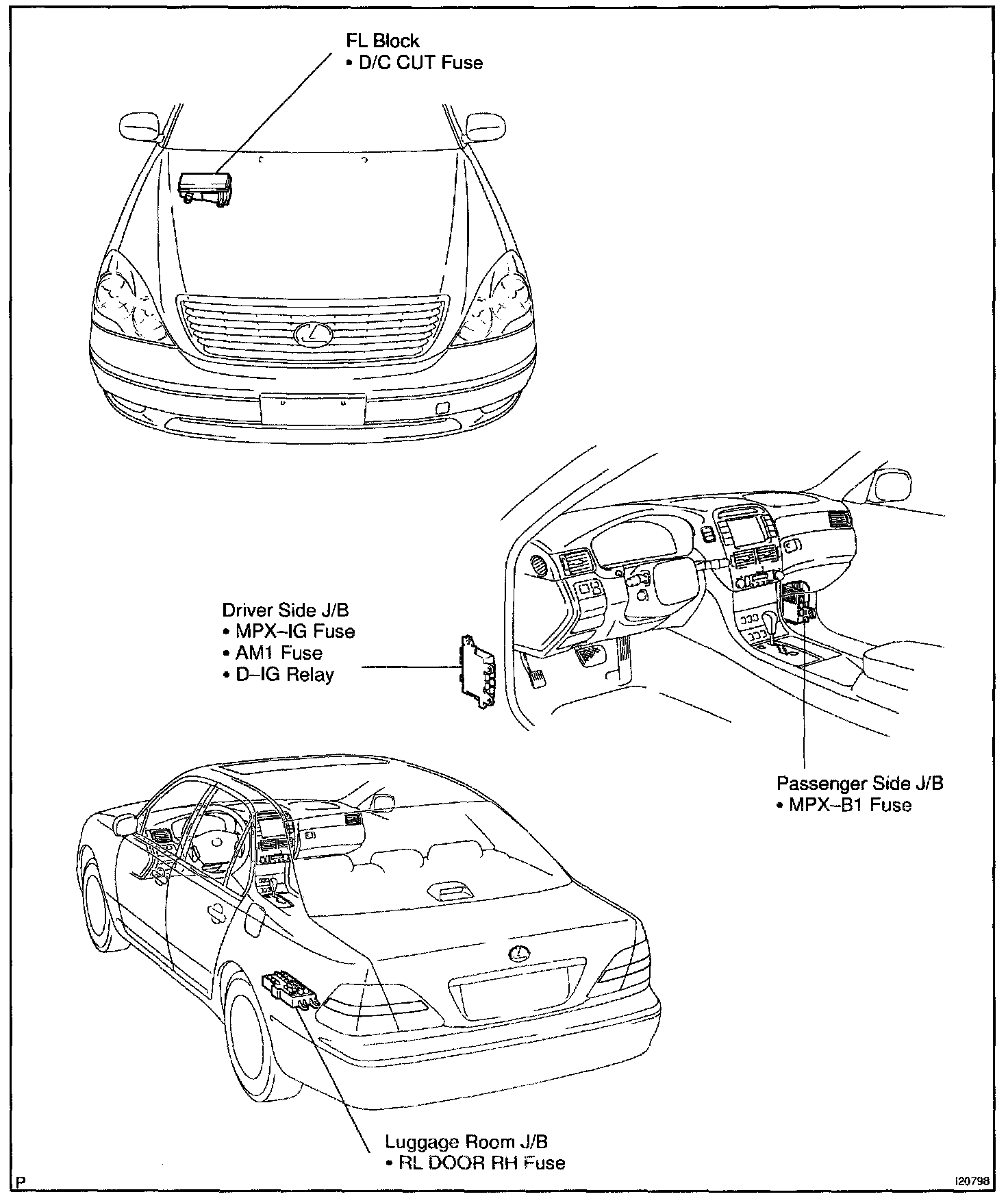

Rear Left Door Control System:




Rear Left Door Control System:

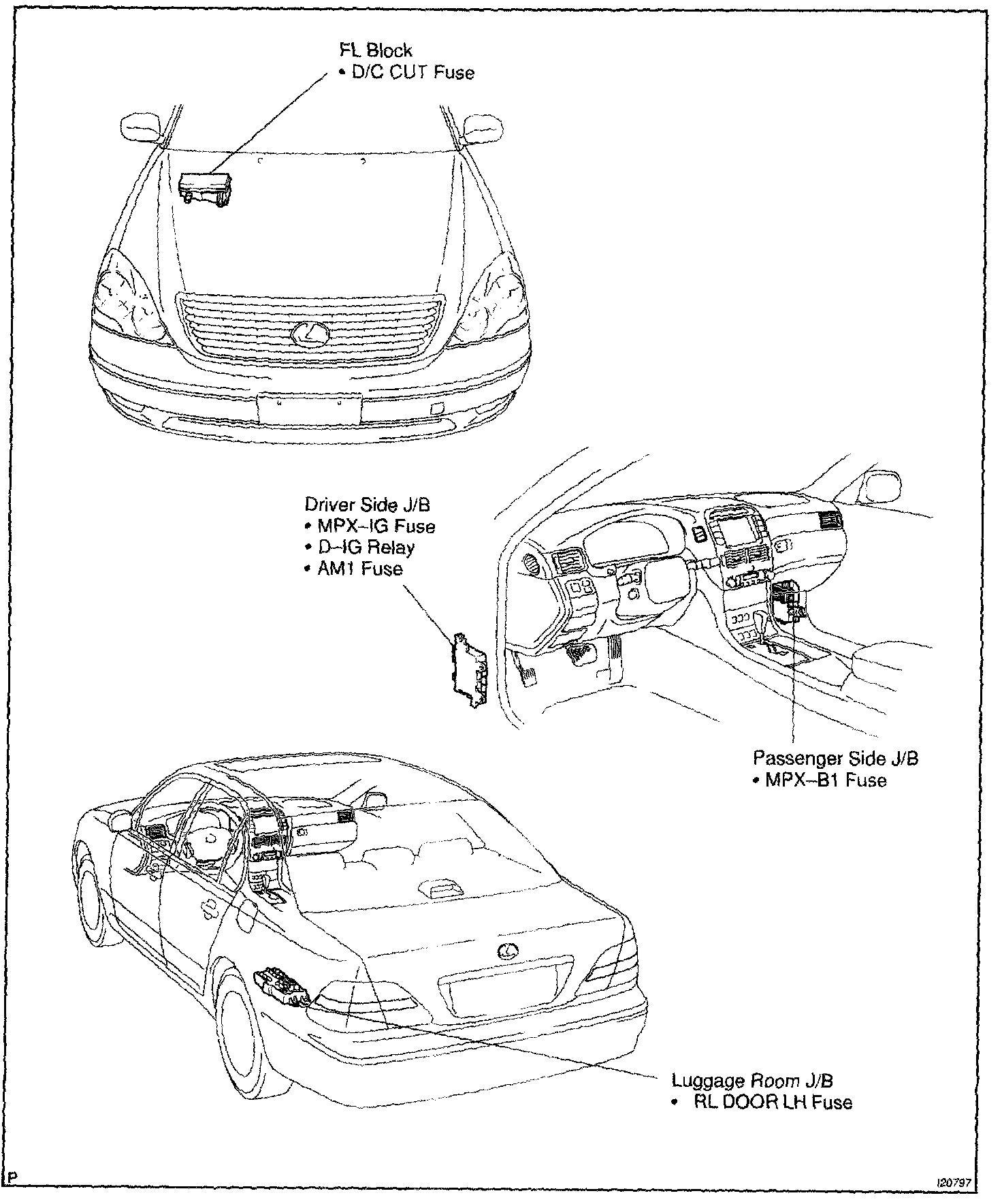

Rear Right Door Control System:




Rear Right Door Control System:
