Specified Torque For Standard Bolts

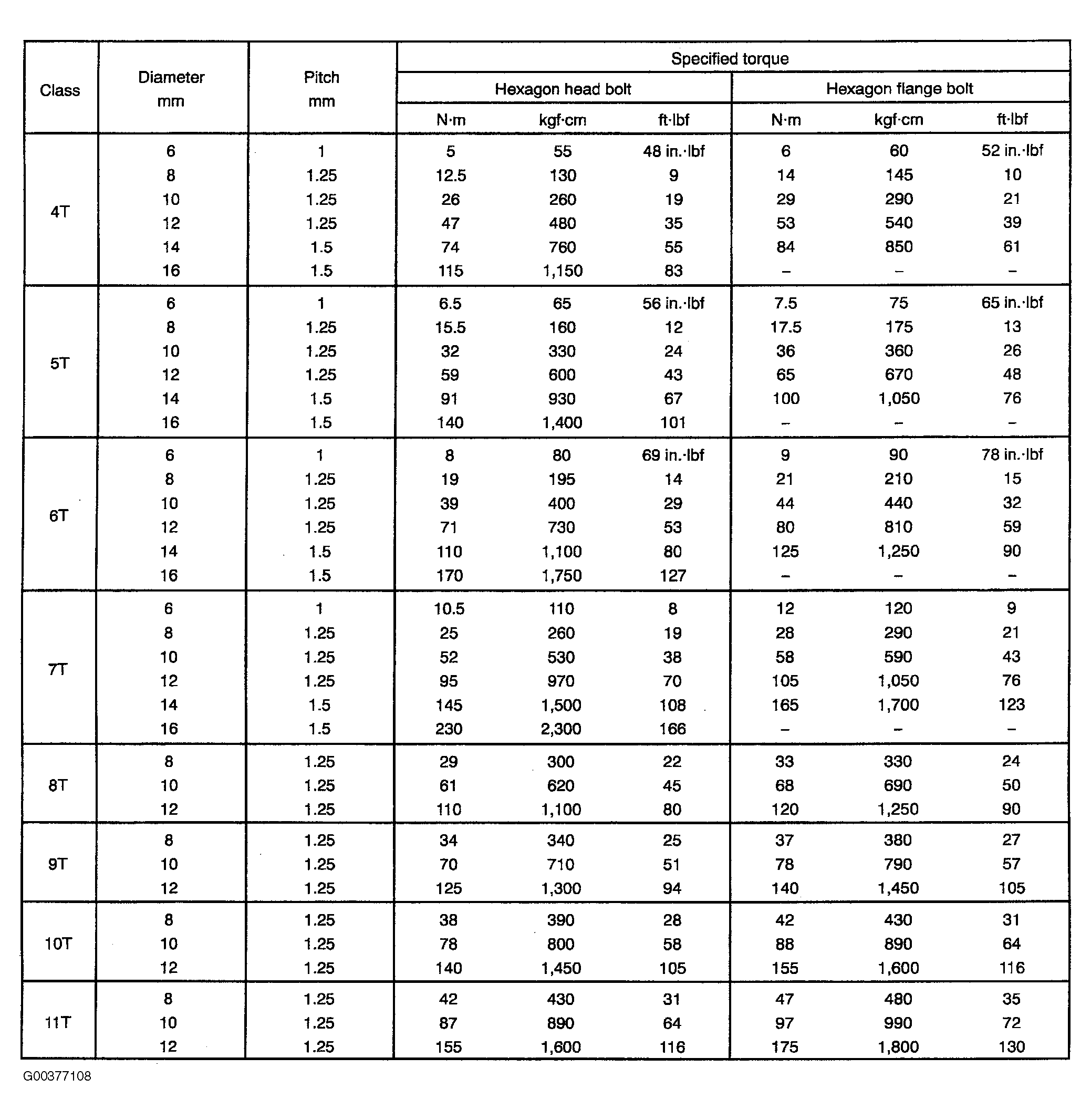

Fig 1: Standard Bolt Specified Torque
G00377108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
