Circuit Description

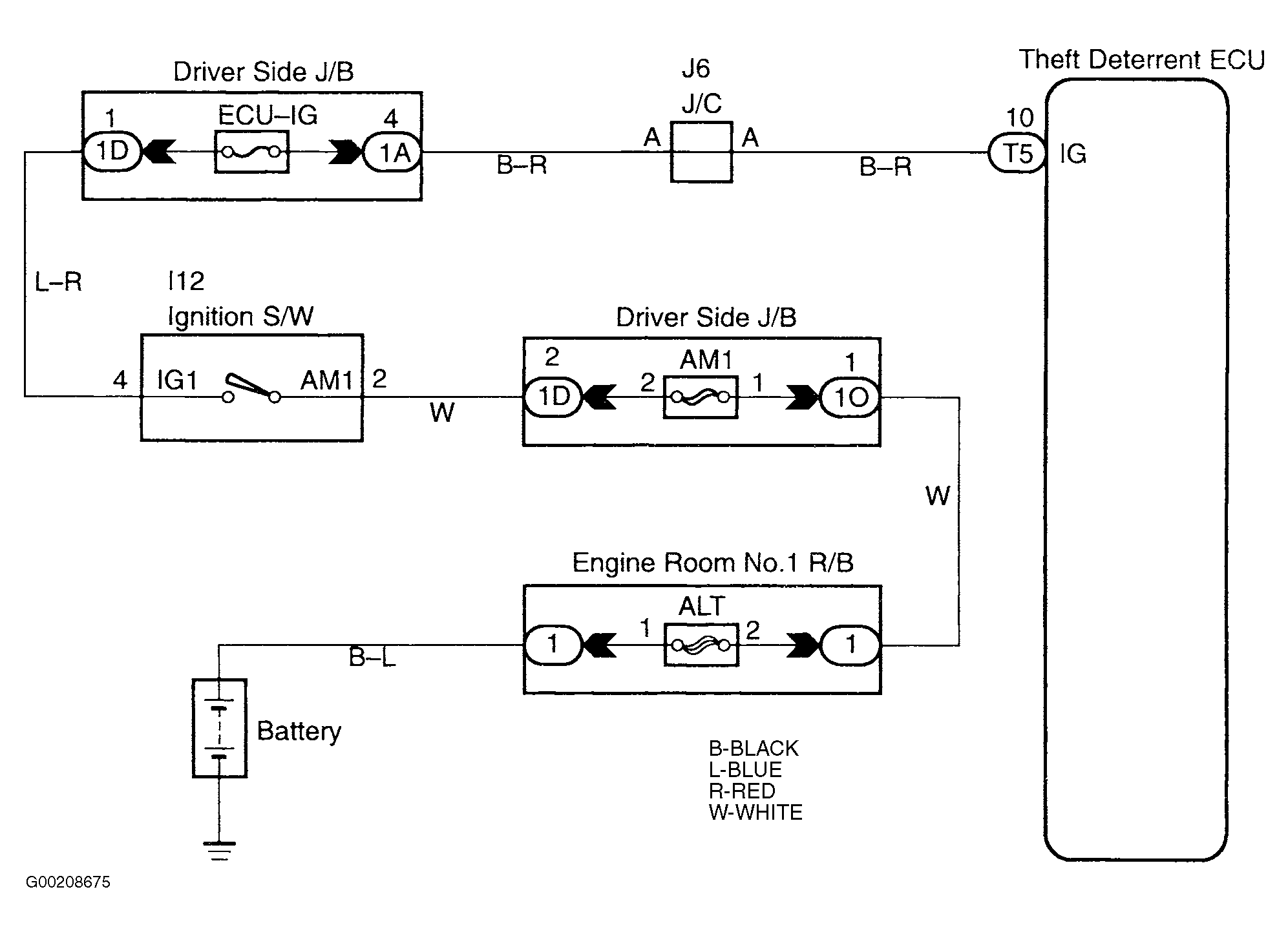

If the ignition switch is turned to the ON position, battery positive voltage is applied to terminal T5-10 (IG) of the theft deterrent ECU. Furthermore, power supplied from terminal T5-10 (IG) of the ECU is used as power for the door courtesy switch, and position switch, etc. See Fig 1.
