Circuit Description
This circuit provides power to operate the theft deterrent ECU. See
Fig 1
.

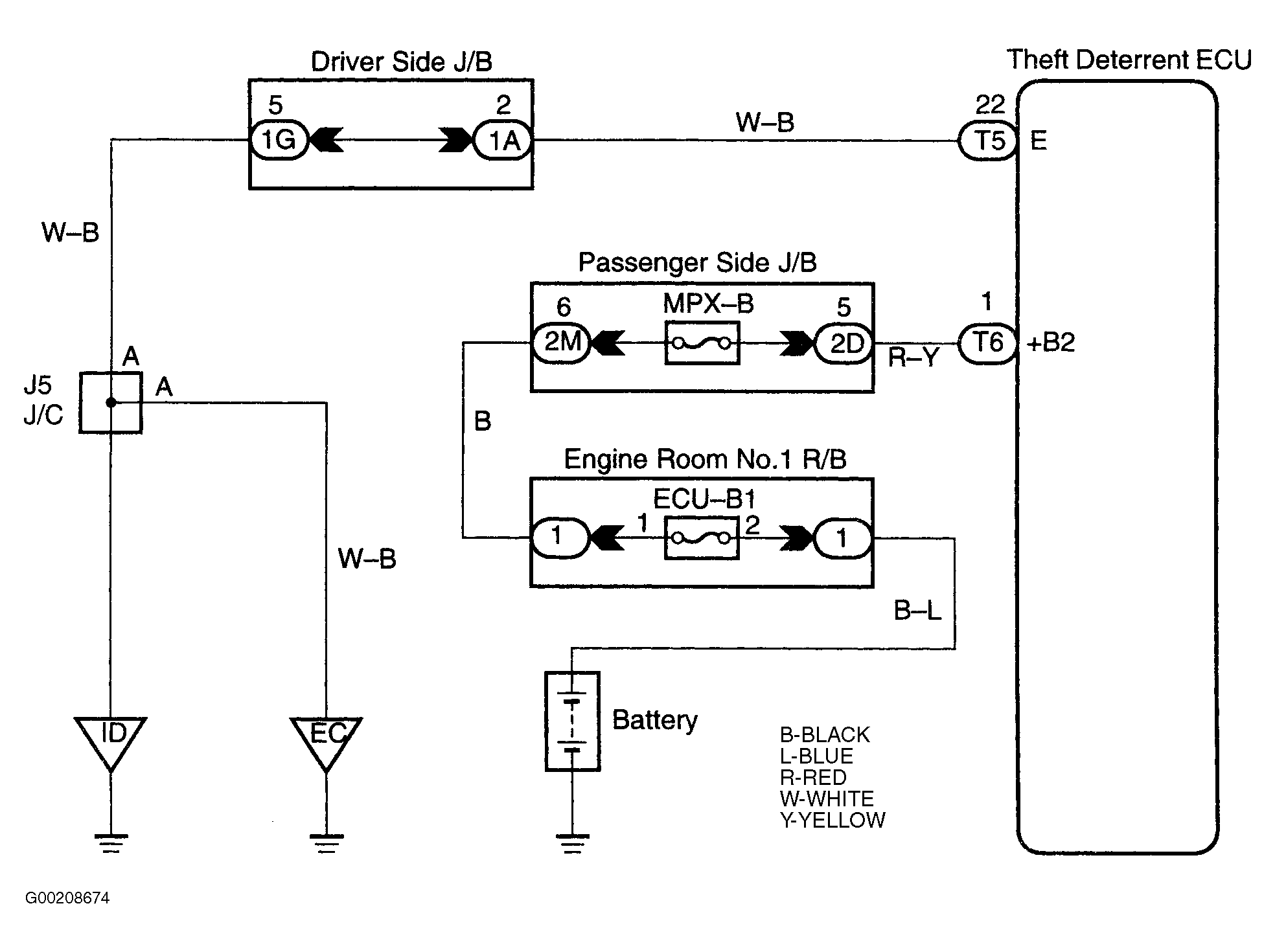

Fig 1: Identifying ECU Power Source Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
