Front Seat: Components

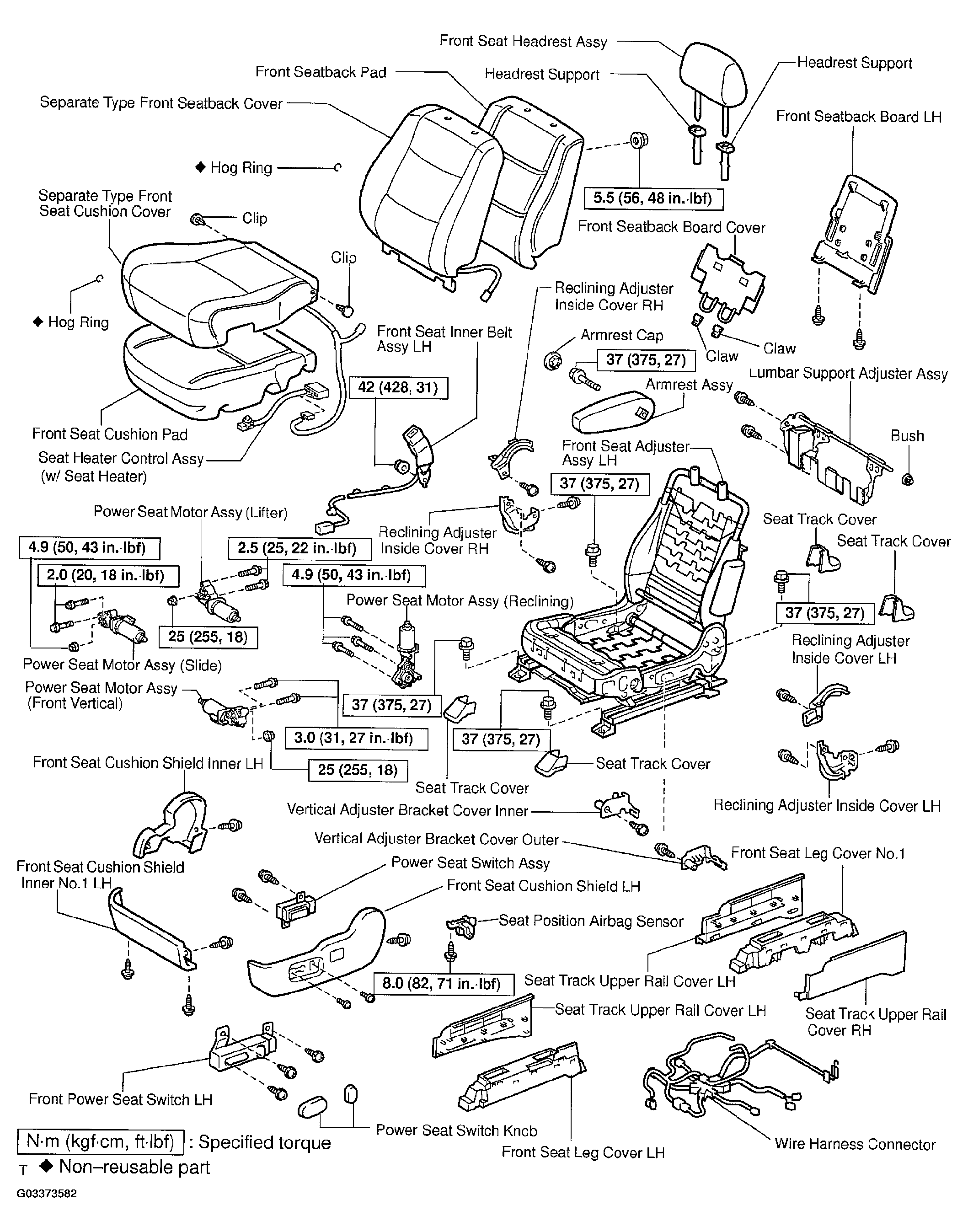

Fig 1: Exploded View Of Front Seat Assy LH

G03373582

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
