Auto Up/Down Function Does Not Operate At Rear LH: Wiring Diagram

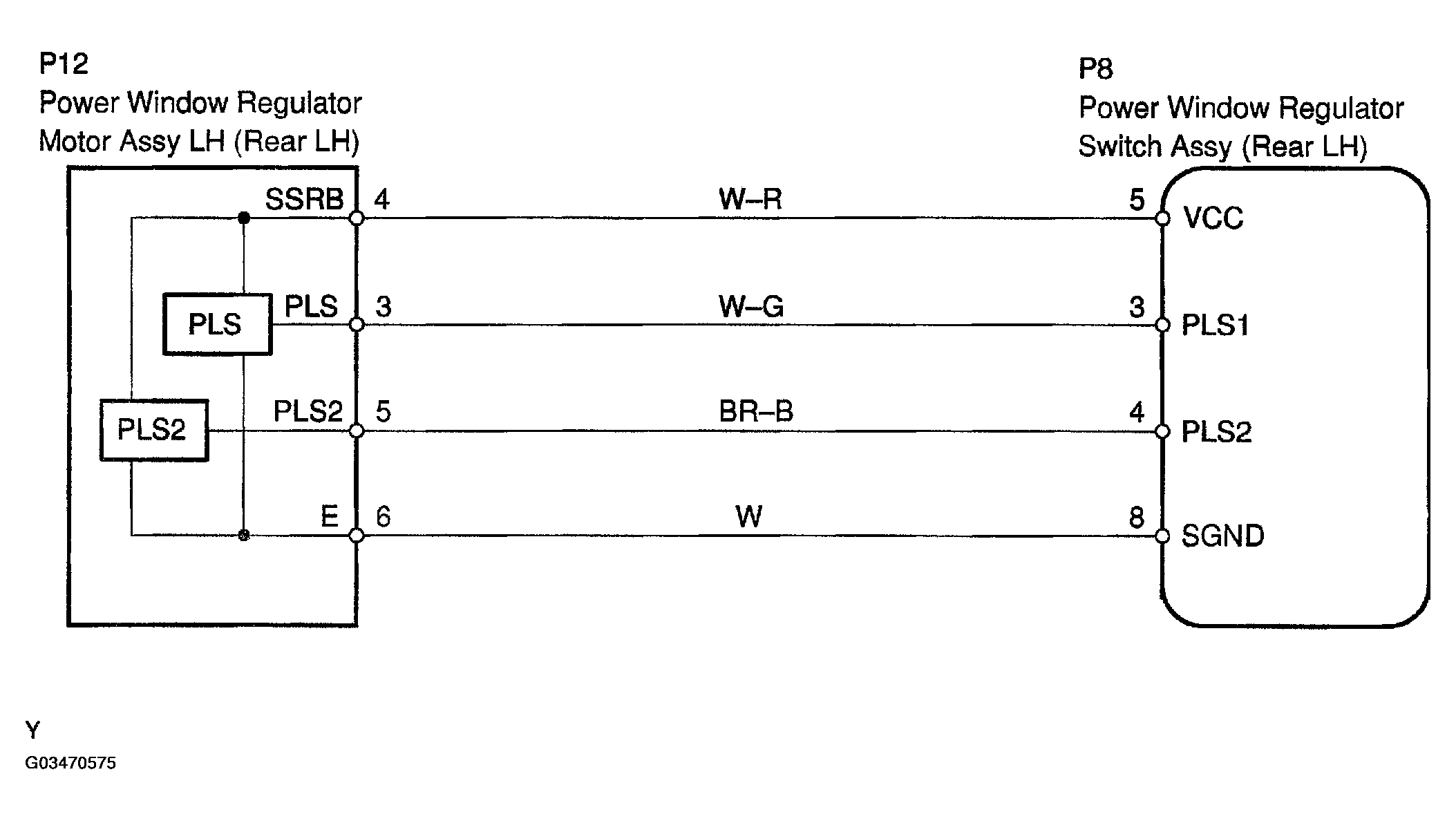

Fig 1: Auto Up/ Down Function Does Not Operate At Rear LH Wiring Diagram
G03470575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
