Wiper Control Module: Testing and Inspection

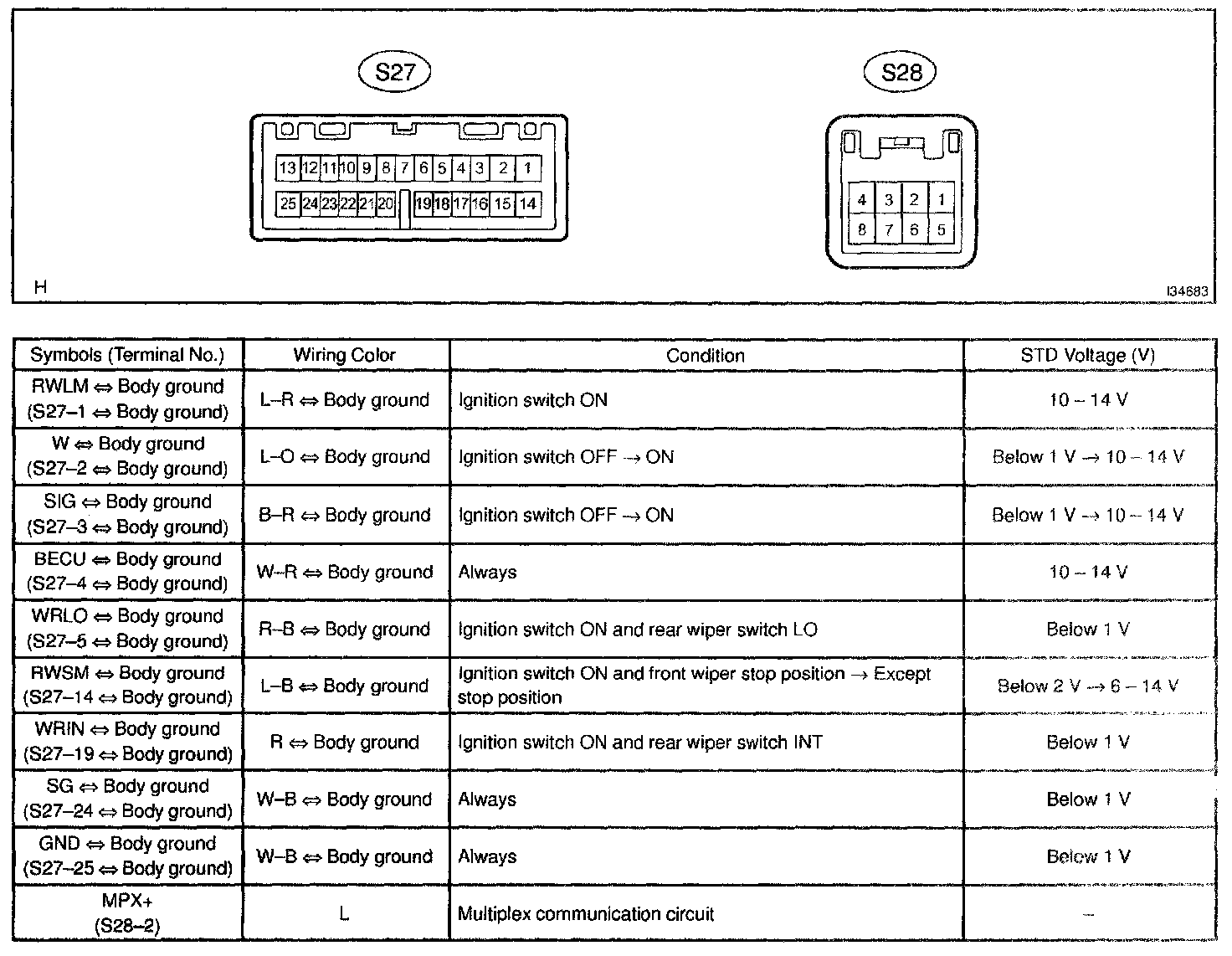

Terminals Of ECU/Pinouts - Windshield Wiper ECU:

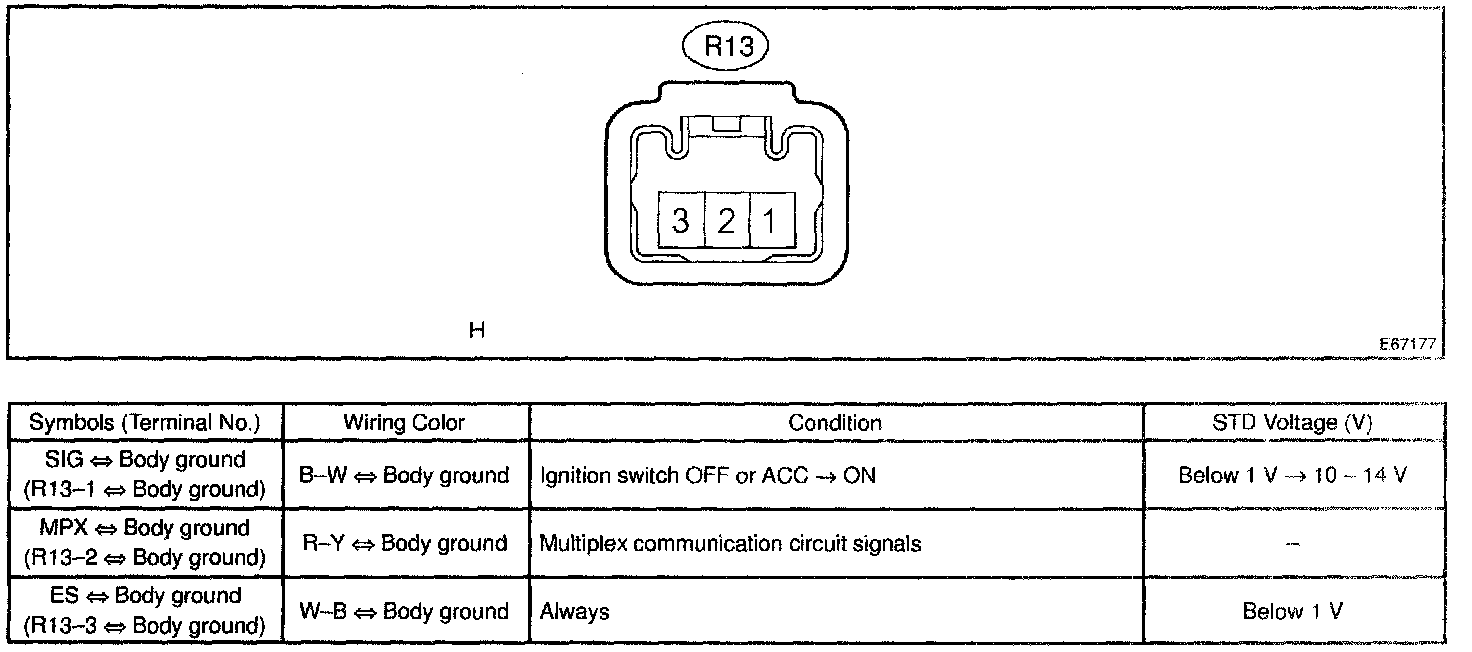

Terminals Of ECU/Pinouts - Rain Sensor:

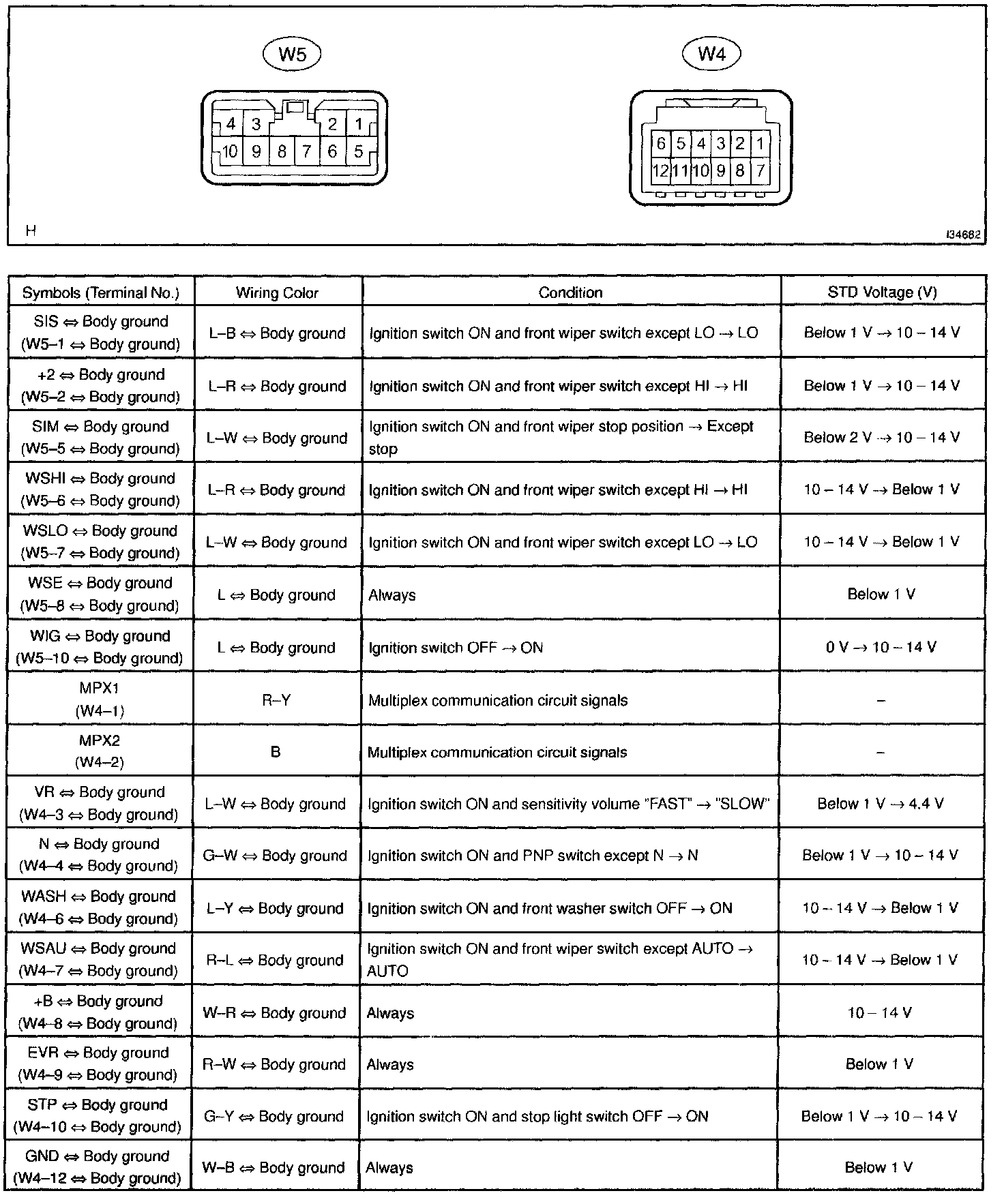

Terminals Of ECU/Pinouts - Multiplex Network Body ECU No.2 Part 1:



Terminals Of ECU/pinouts - Multiplex Network Body ECU No.2 Part 2:
