Transfer Case

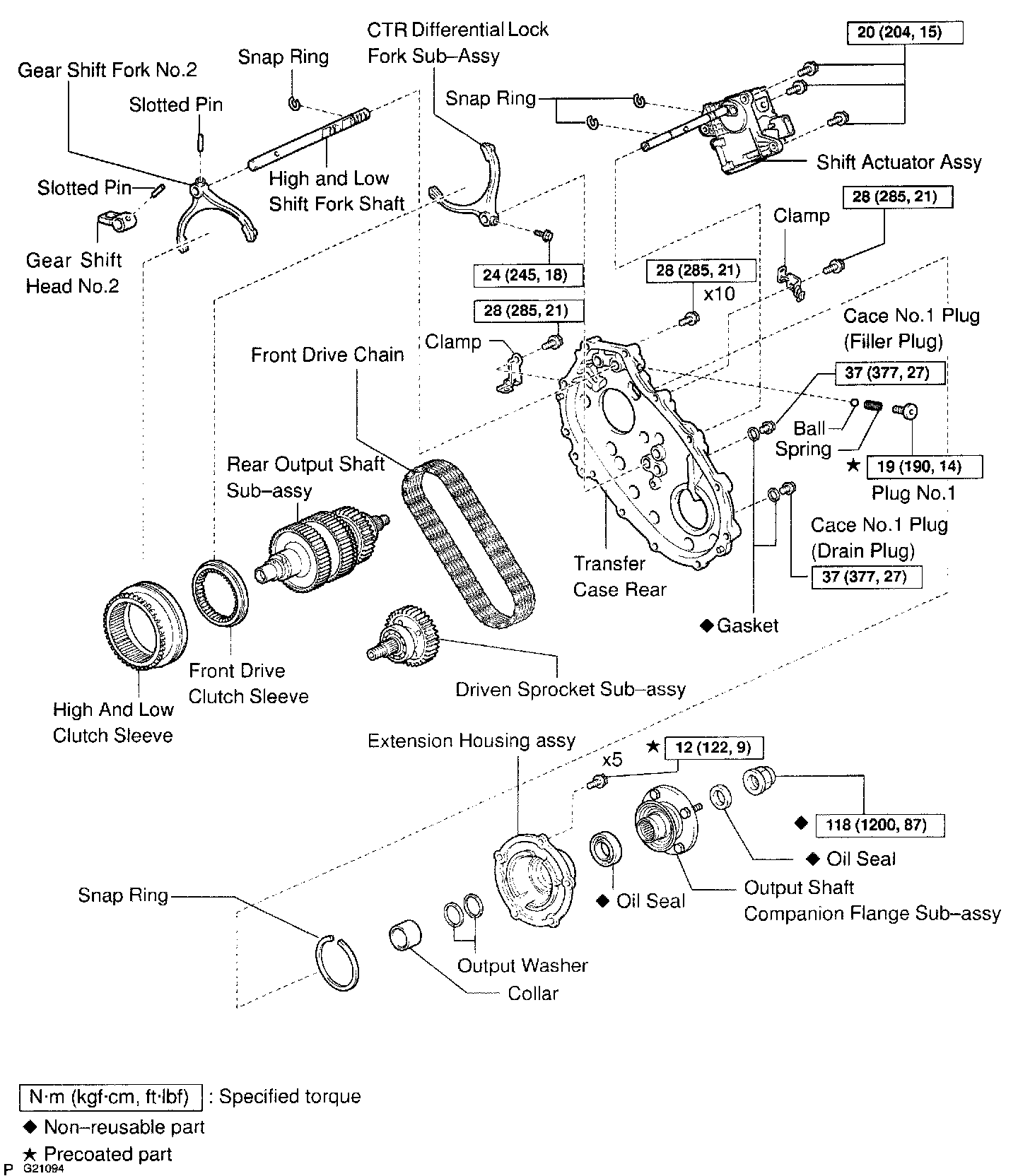

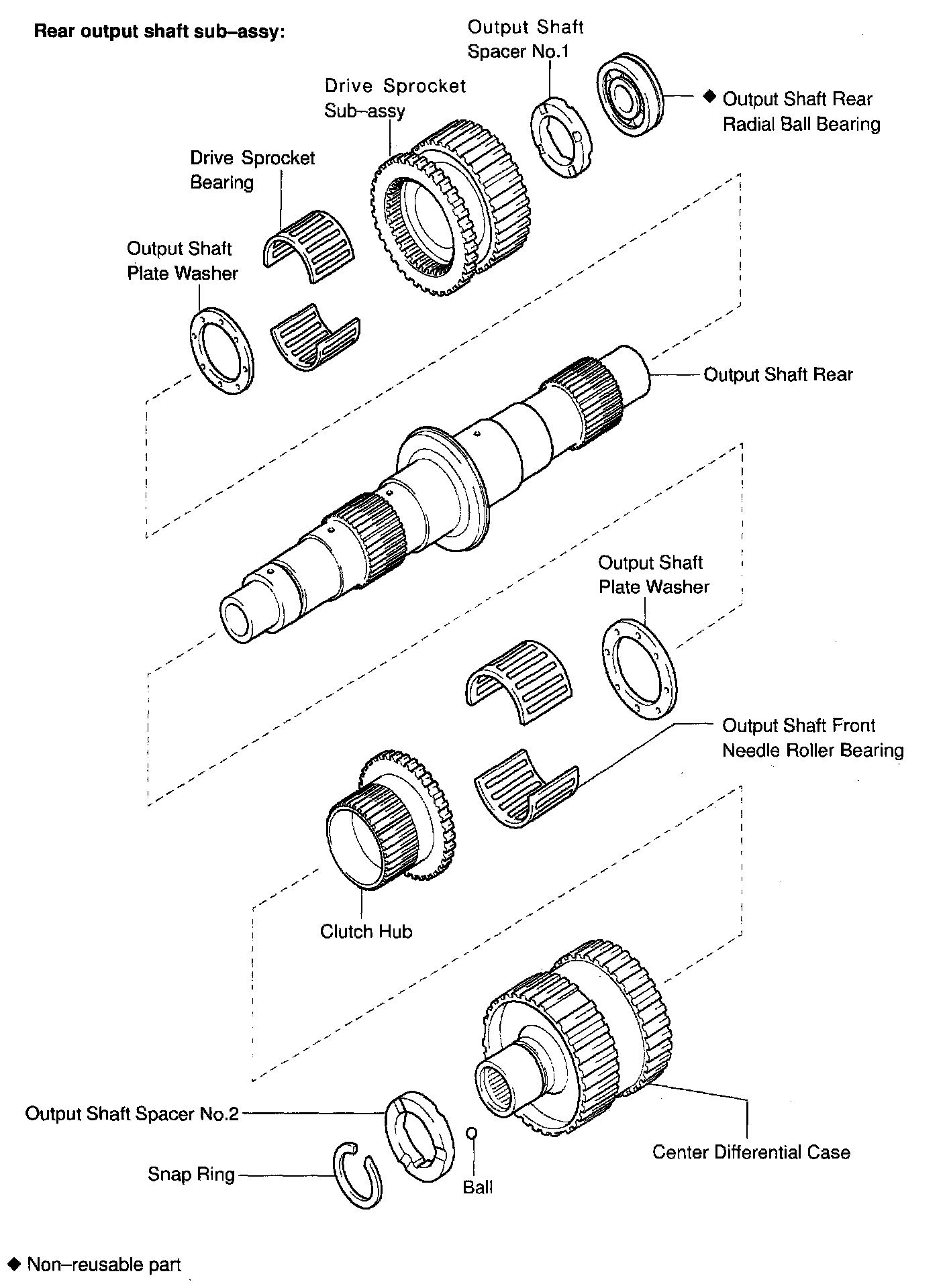

Rear Output Shaft Sub-assembly:

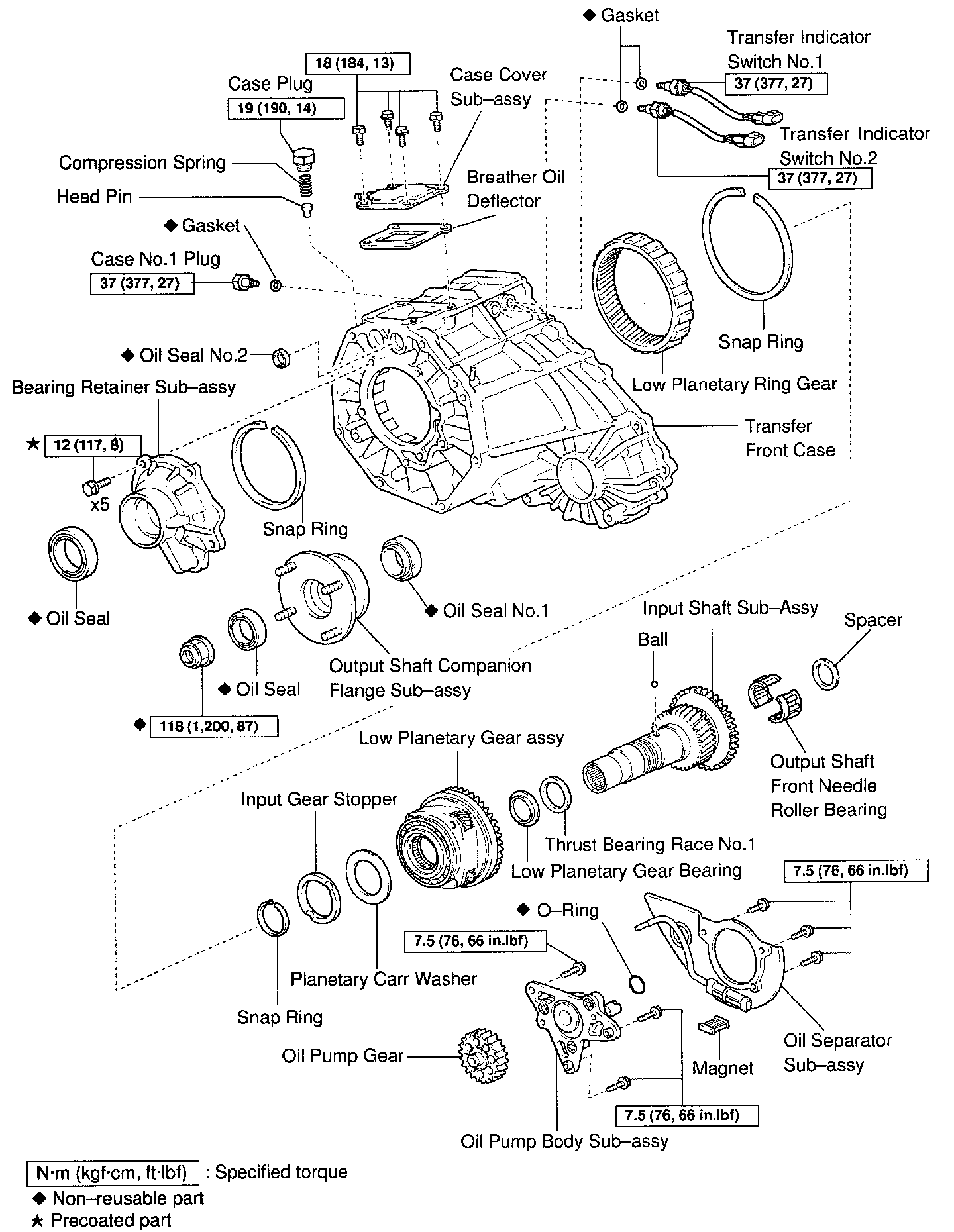

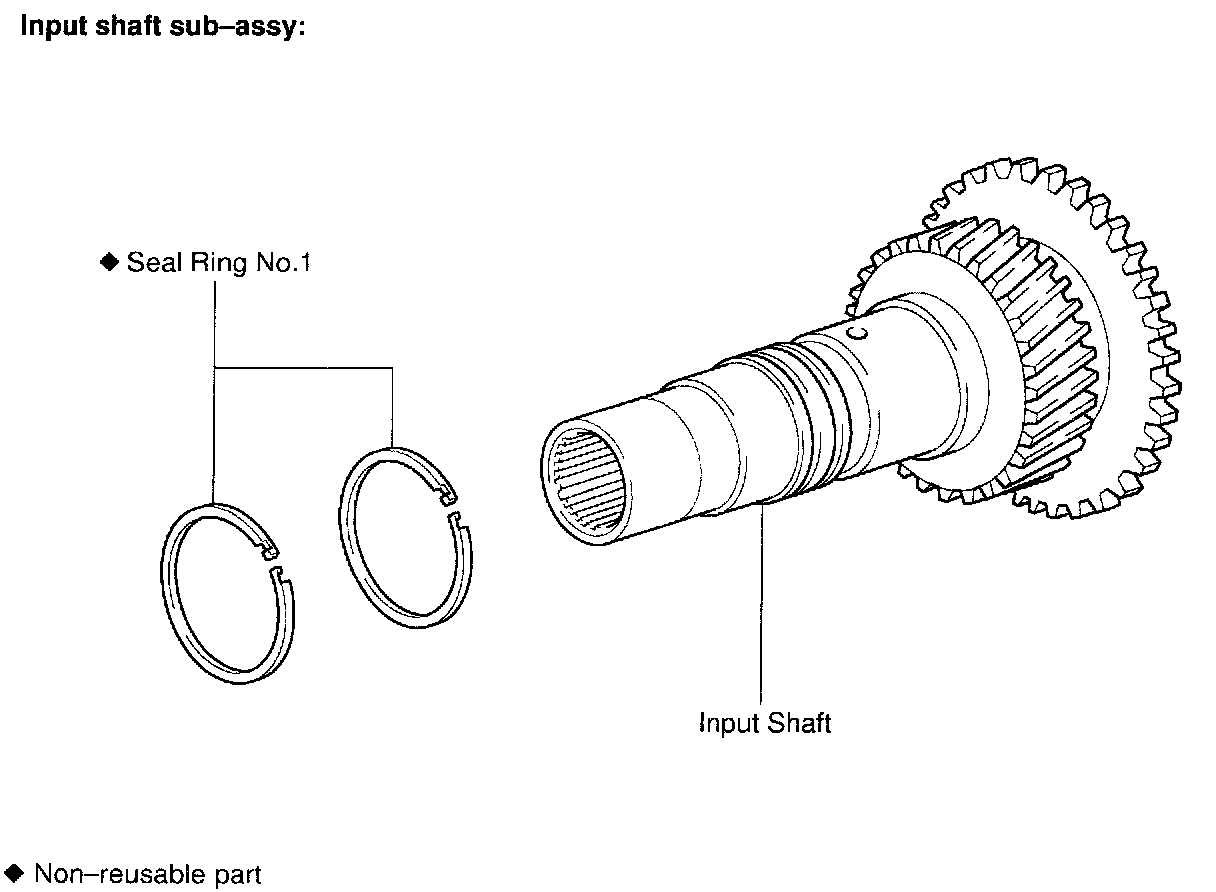

Input Shaft Sub-assembly:

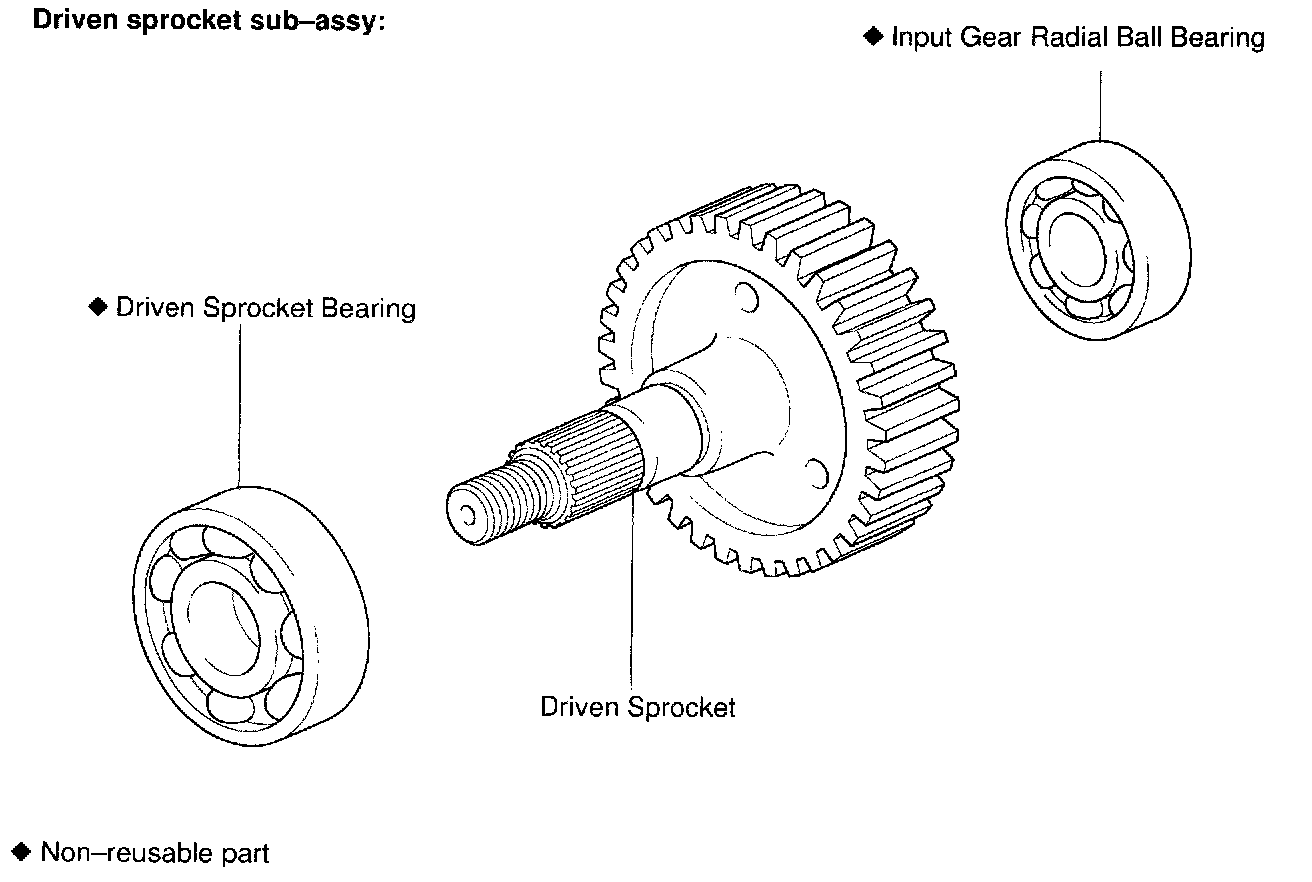

Driven Sprocket Sub-assembly:

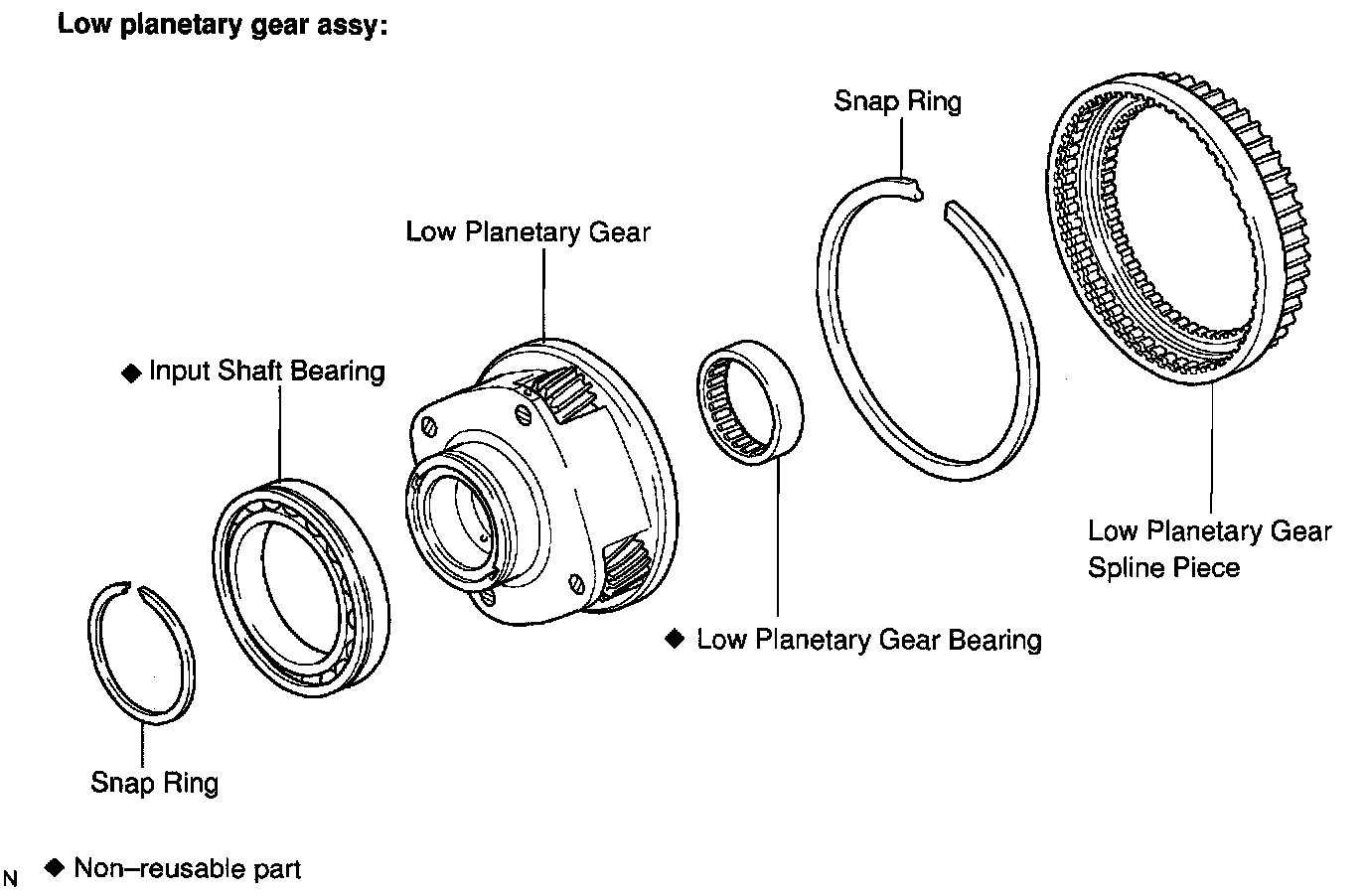

Low Planetary Gear Assembly:

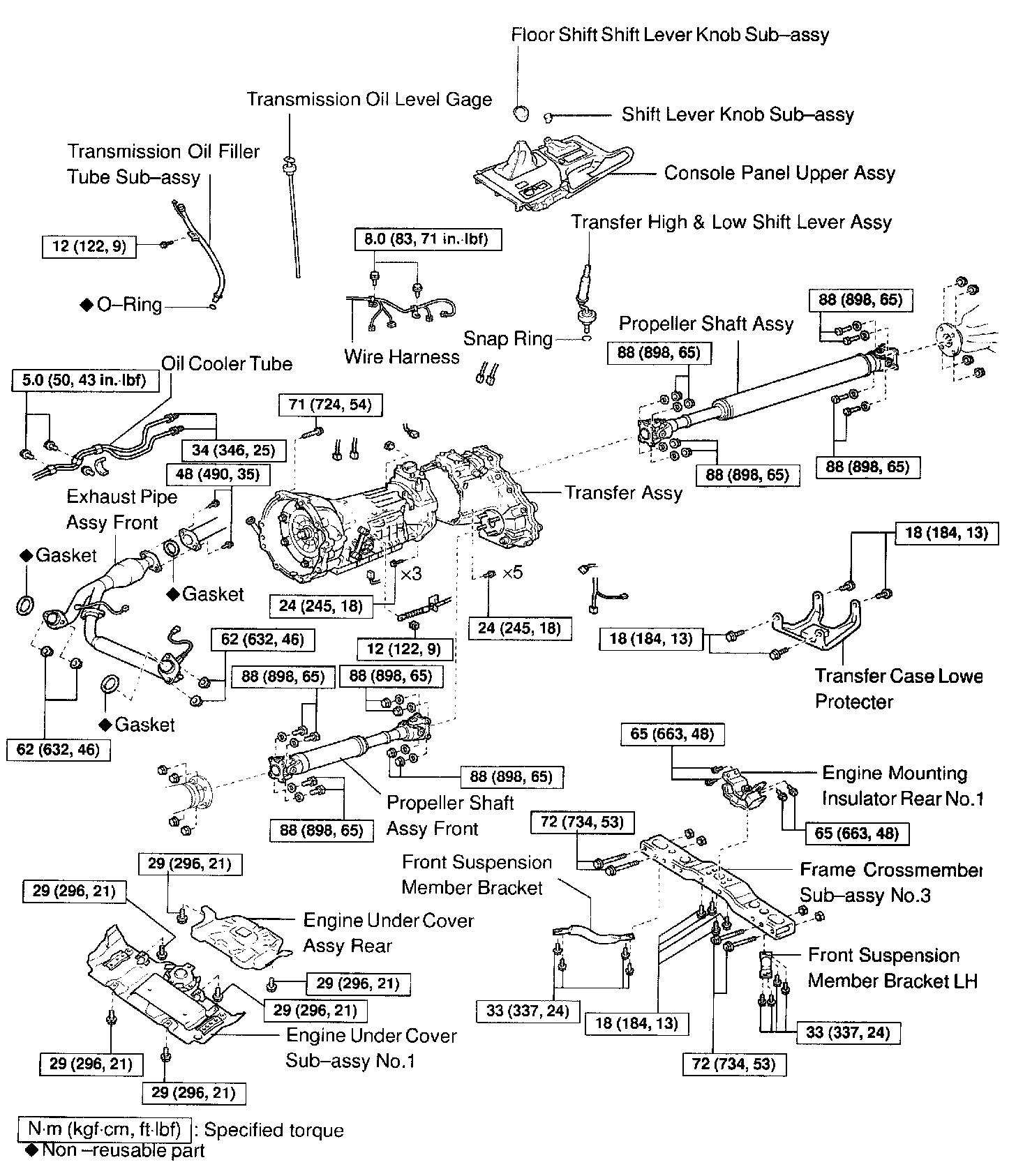

TRANSFER OVERHAUL W/ RELATED COMPONENTS
