Engine Overhaul

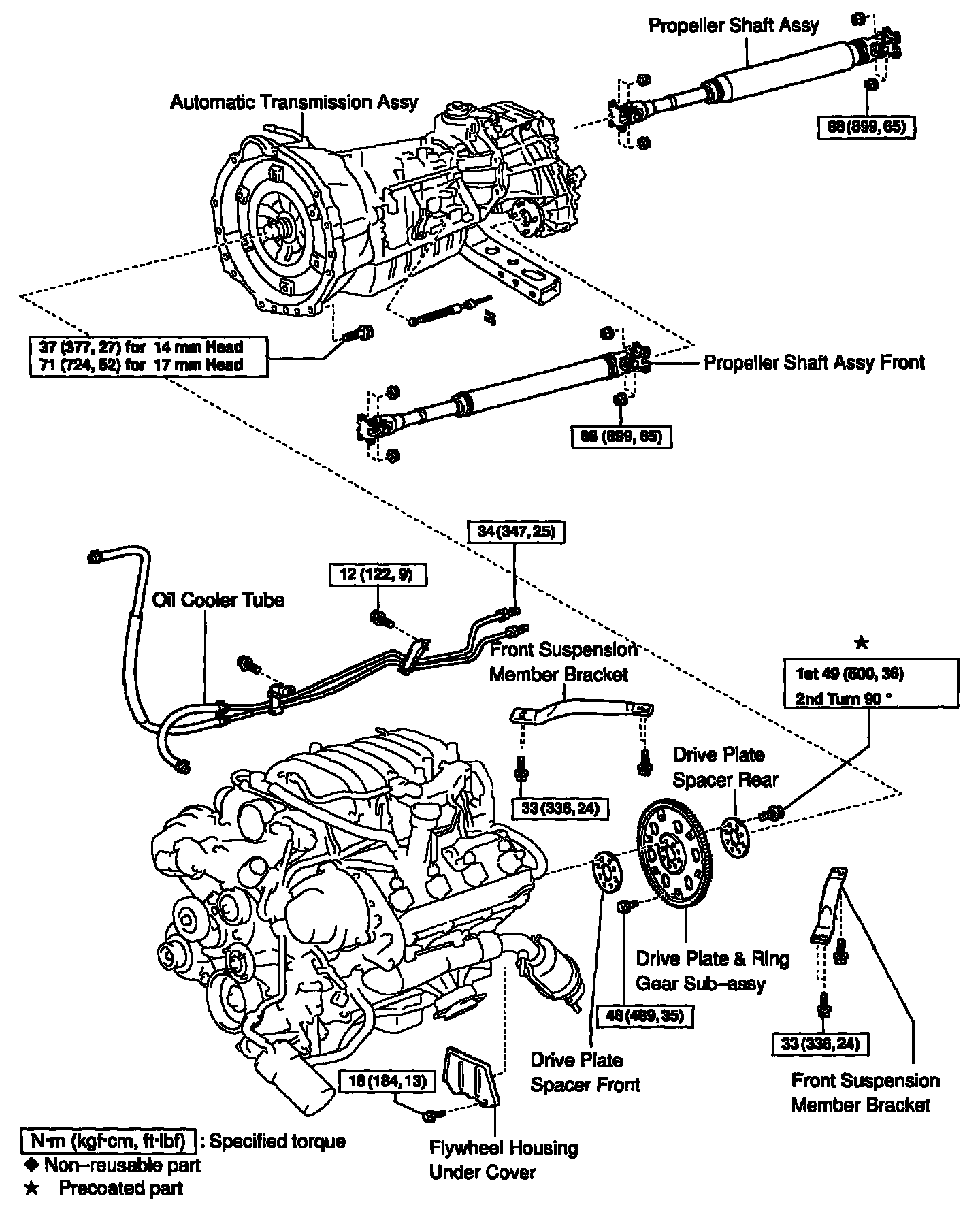

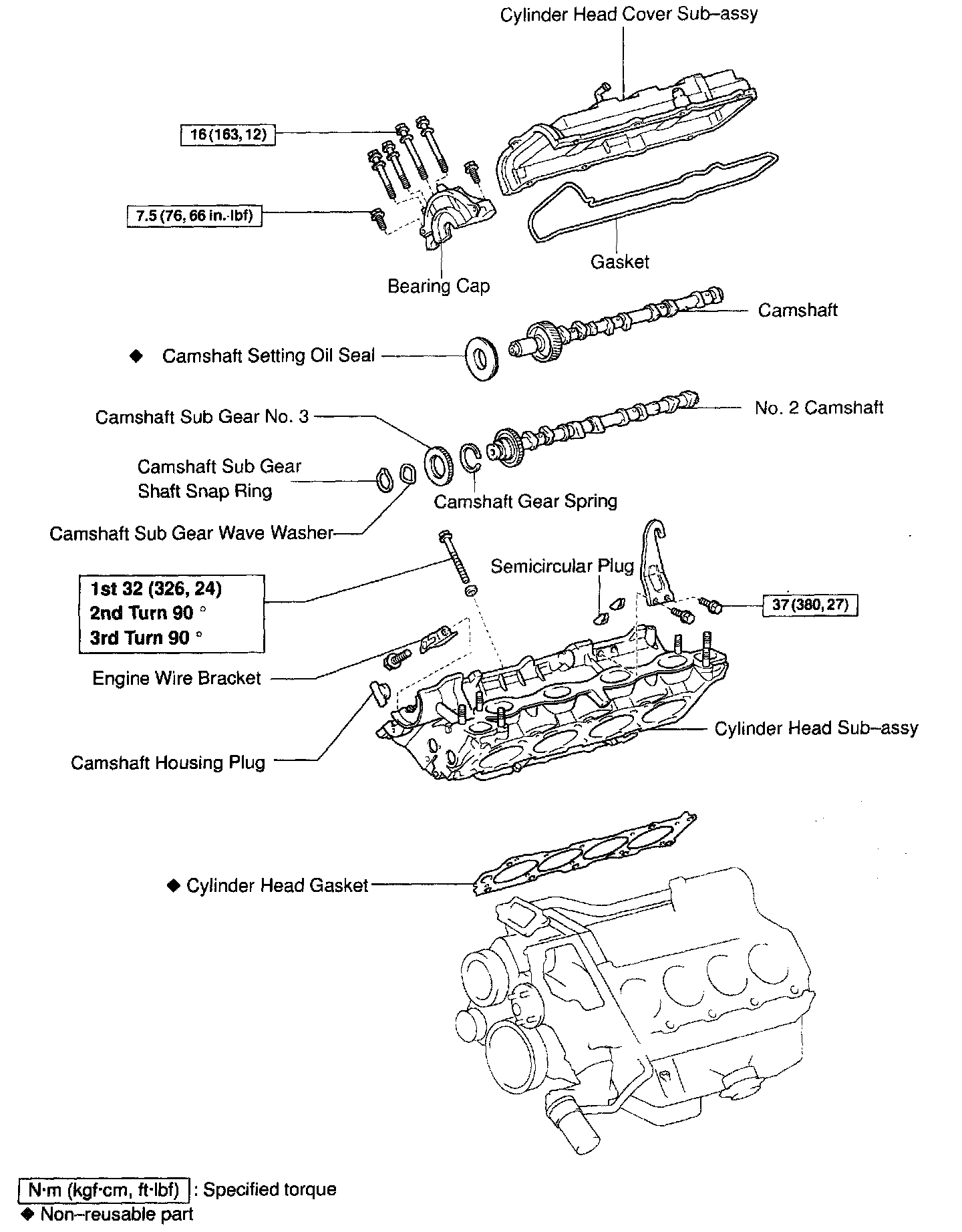

Part 1 Of 10:

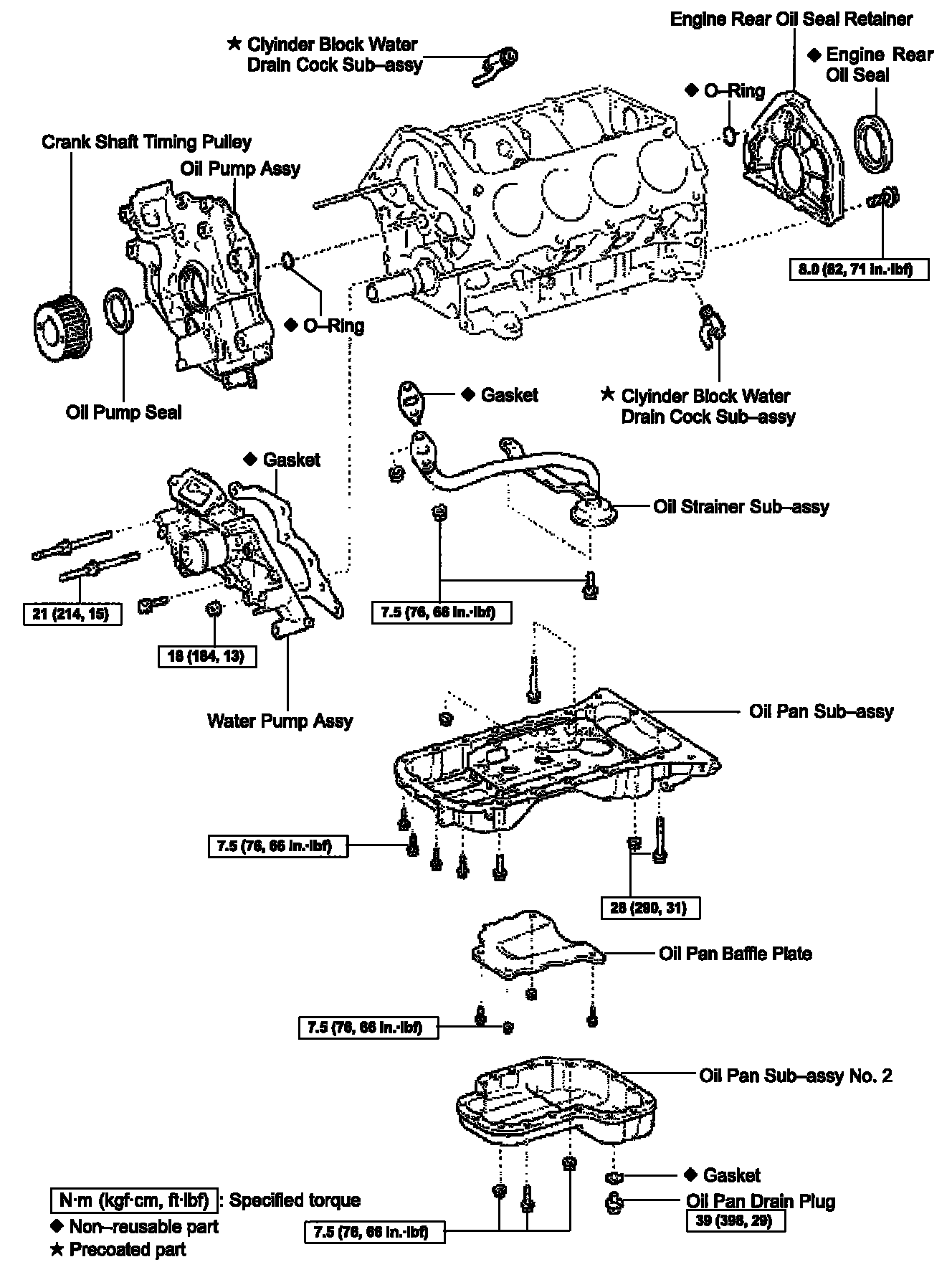

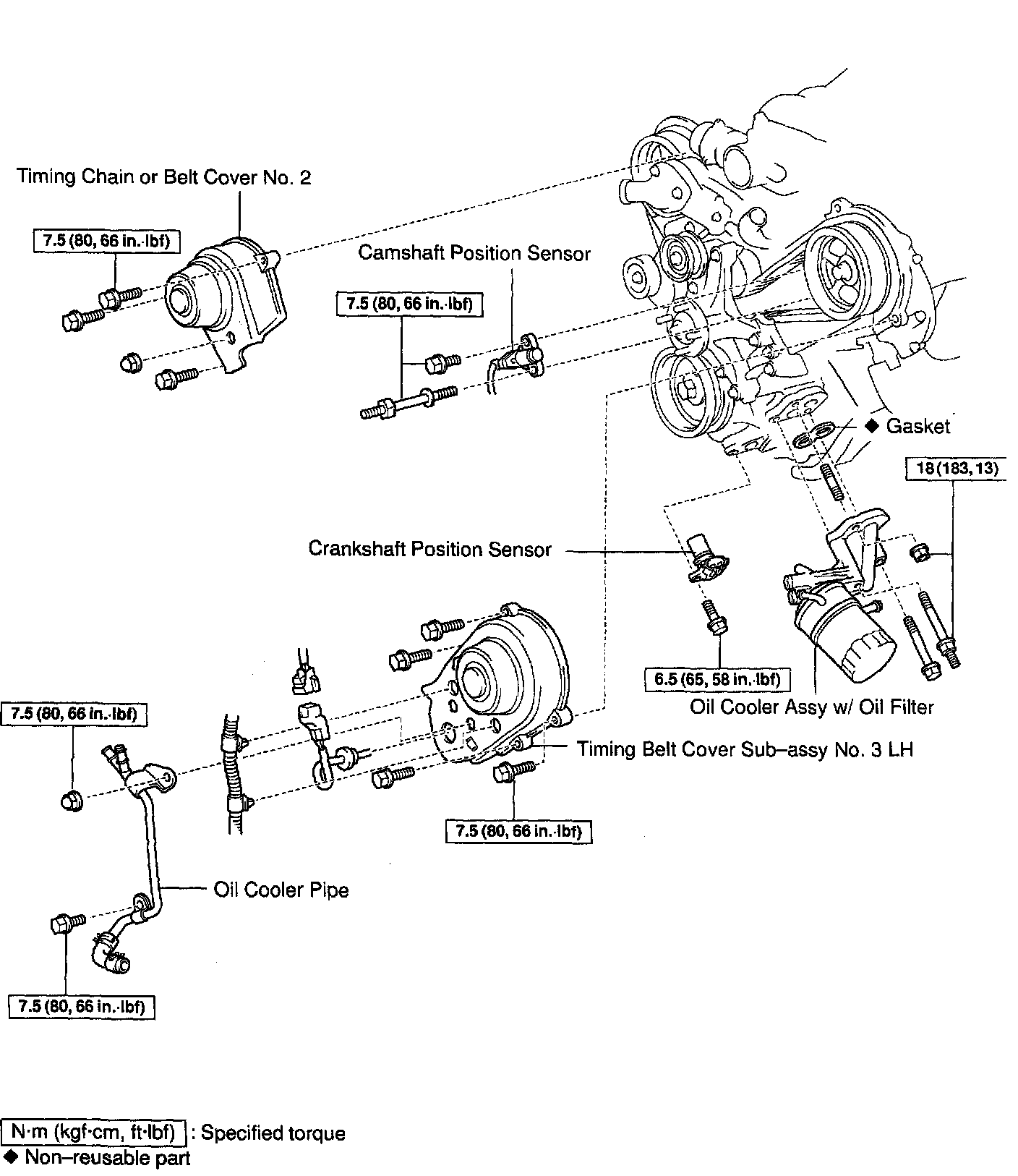

Part 2 Of 10:

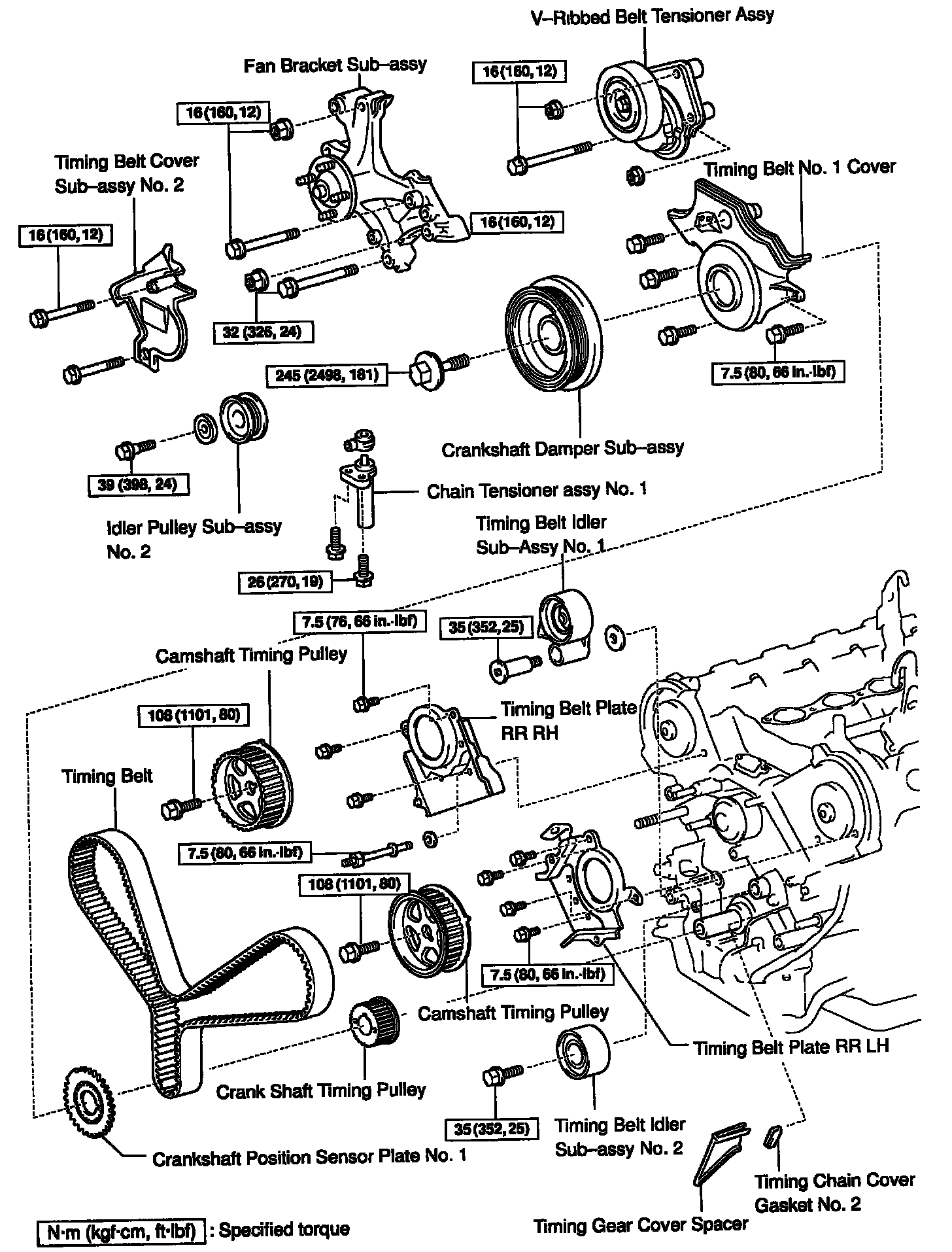

Part 3 Of 10:

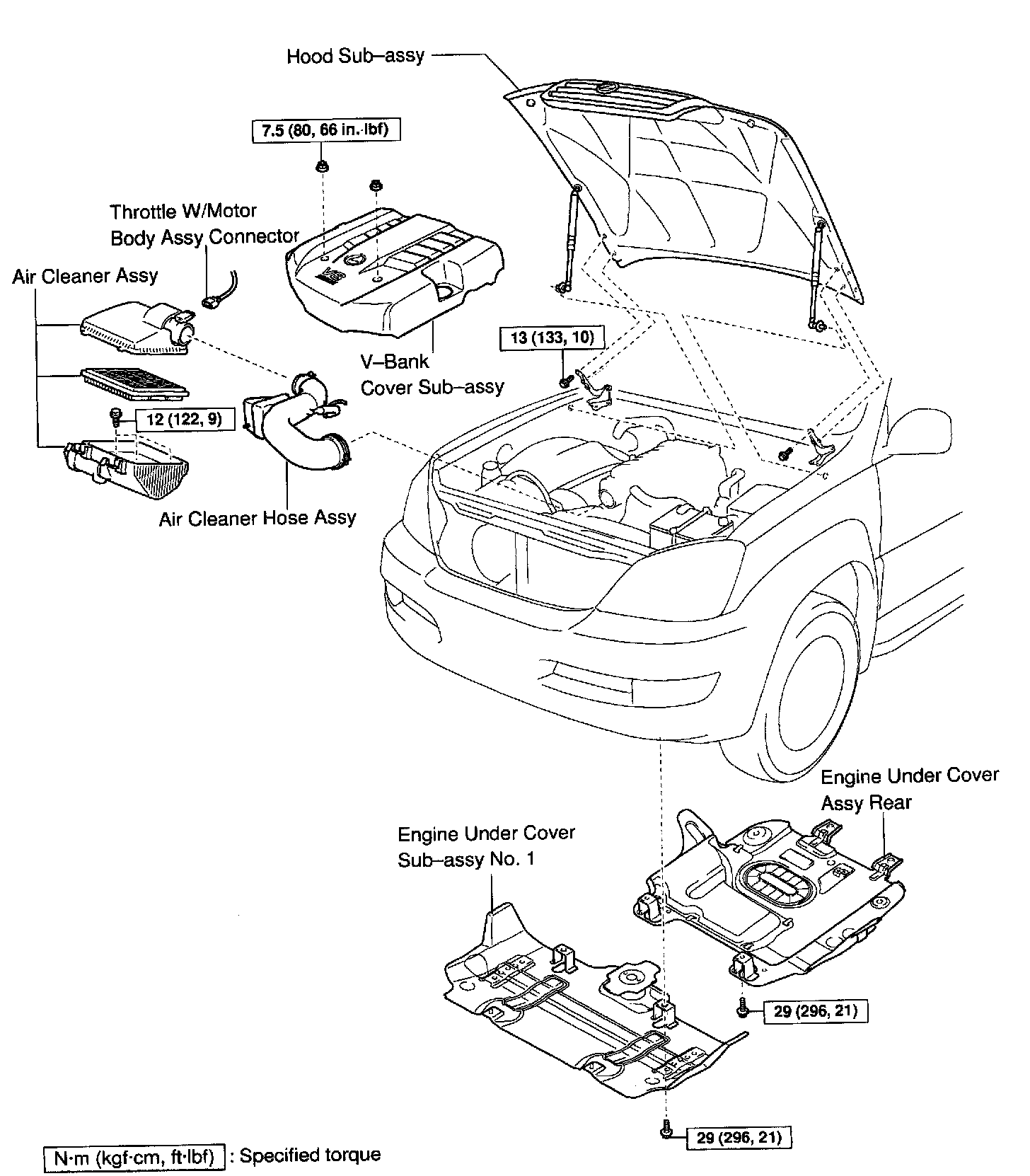

Part 4 Of 10:

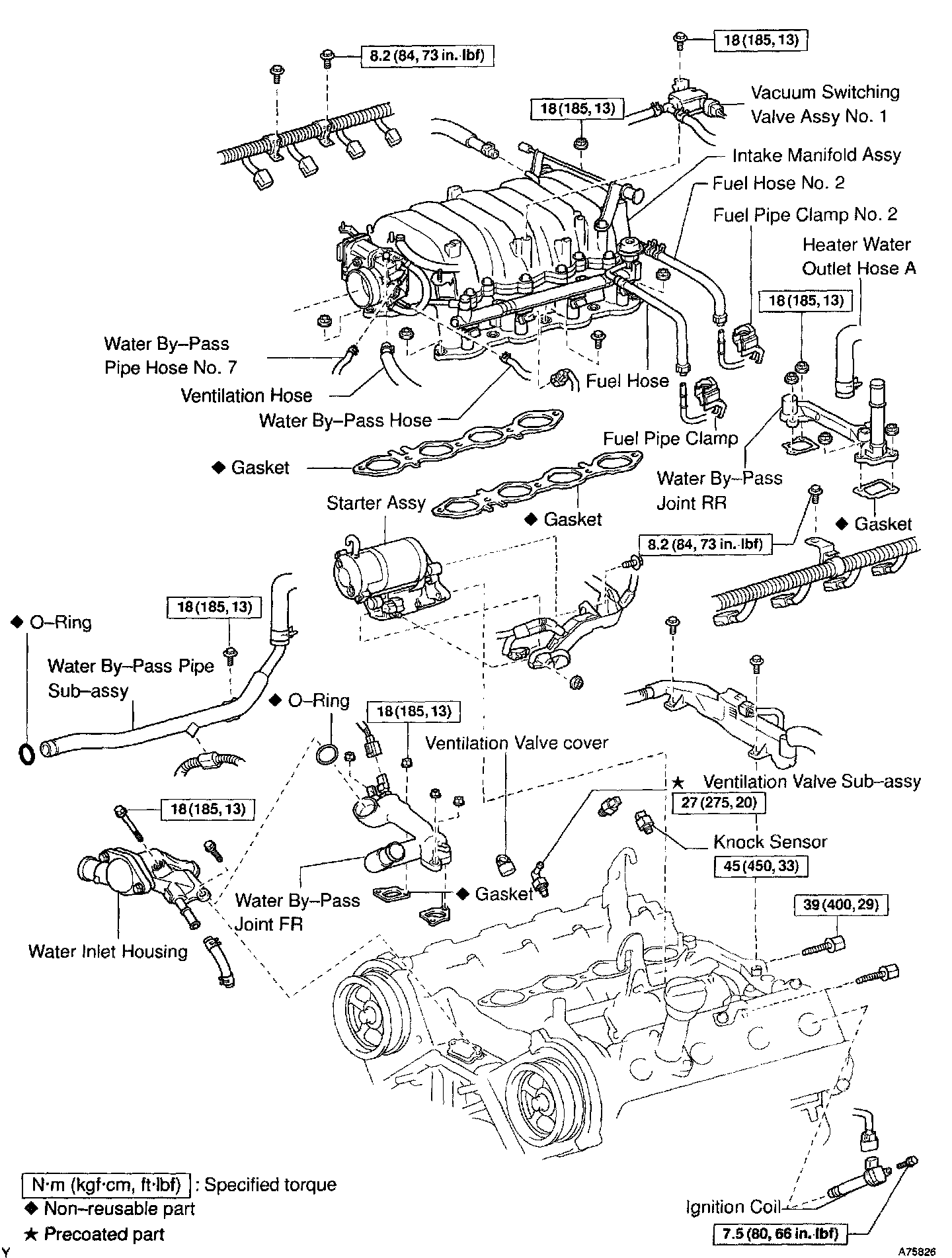

Part 5 Of 10:

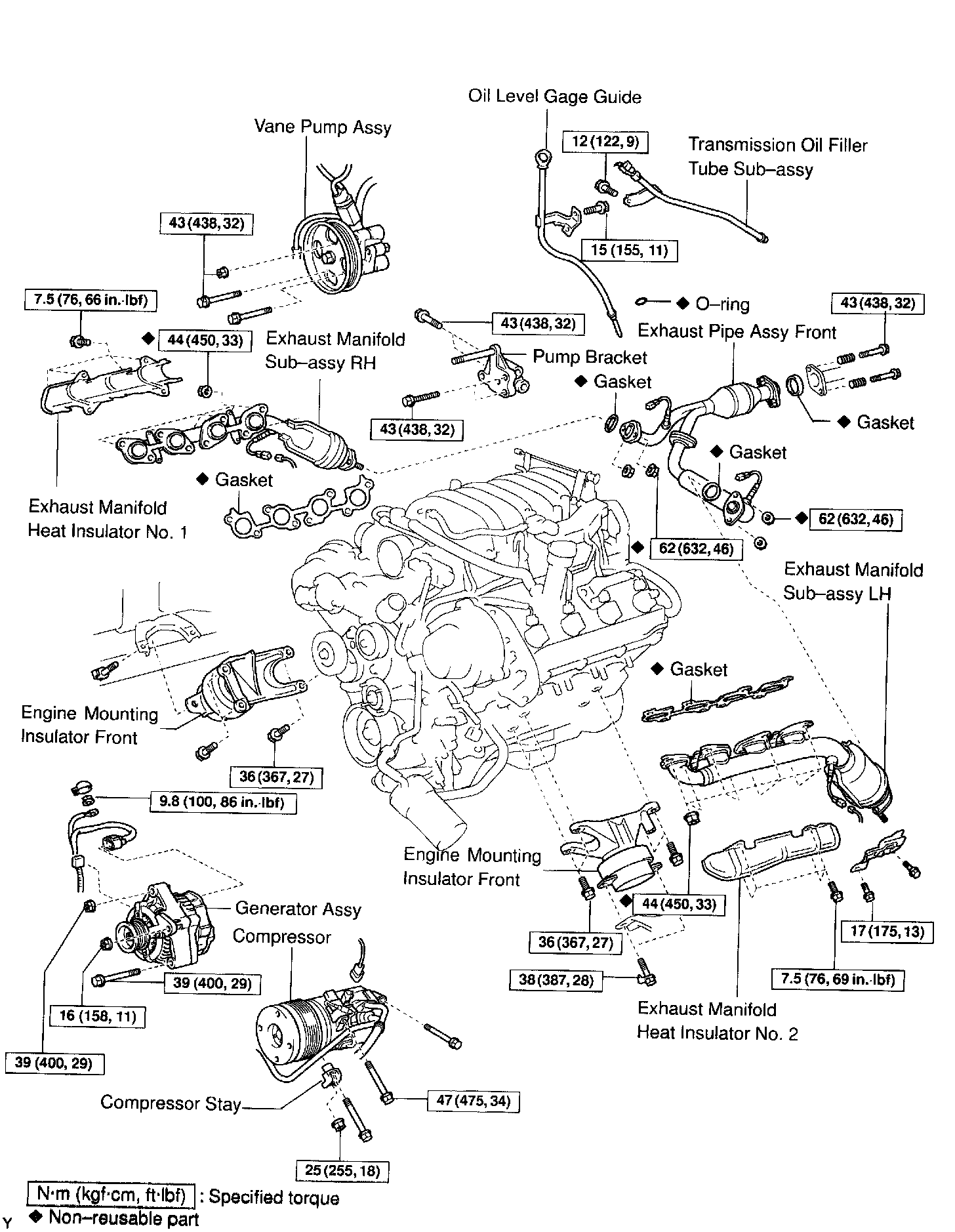

Part 6 Of 10:

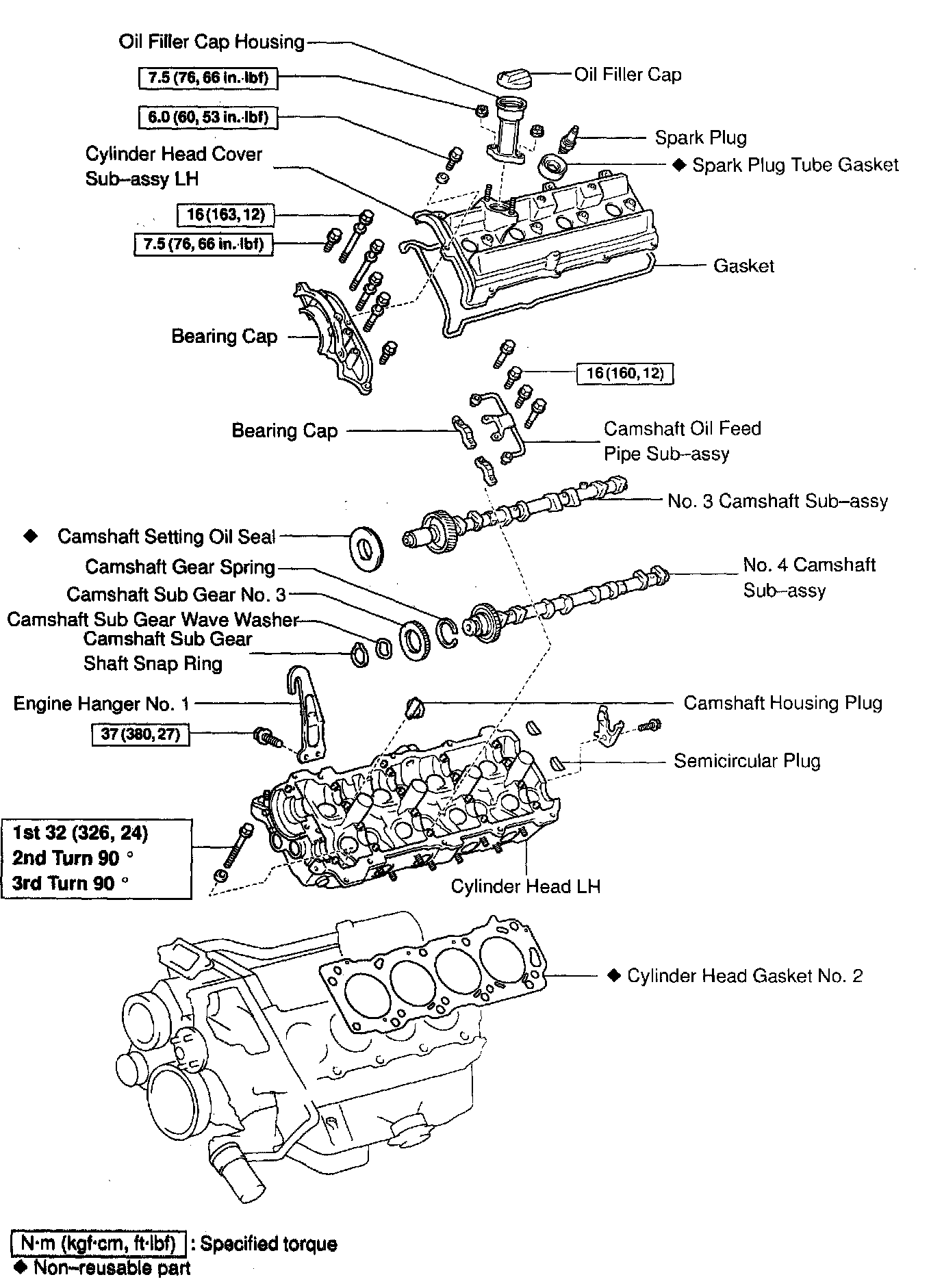

Part 7 Of 10:

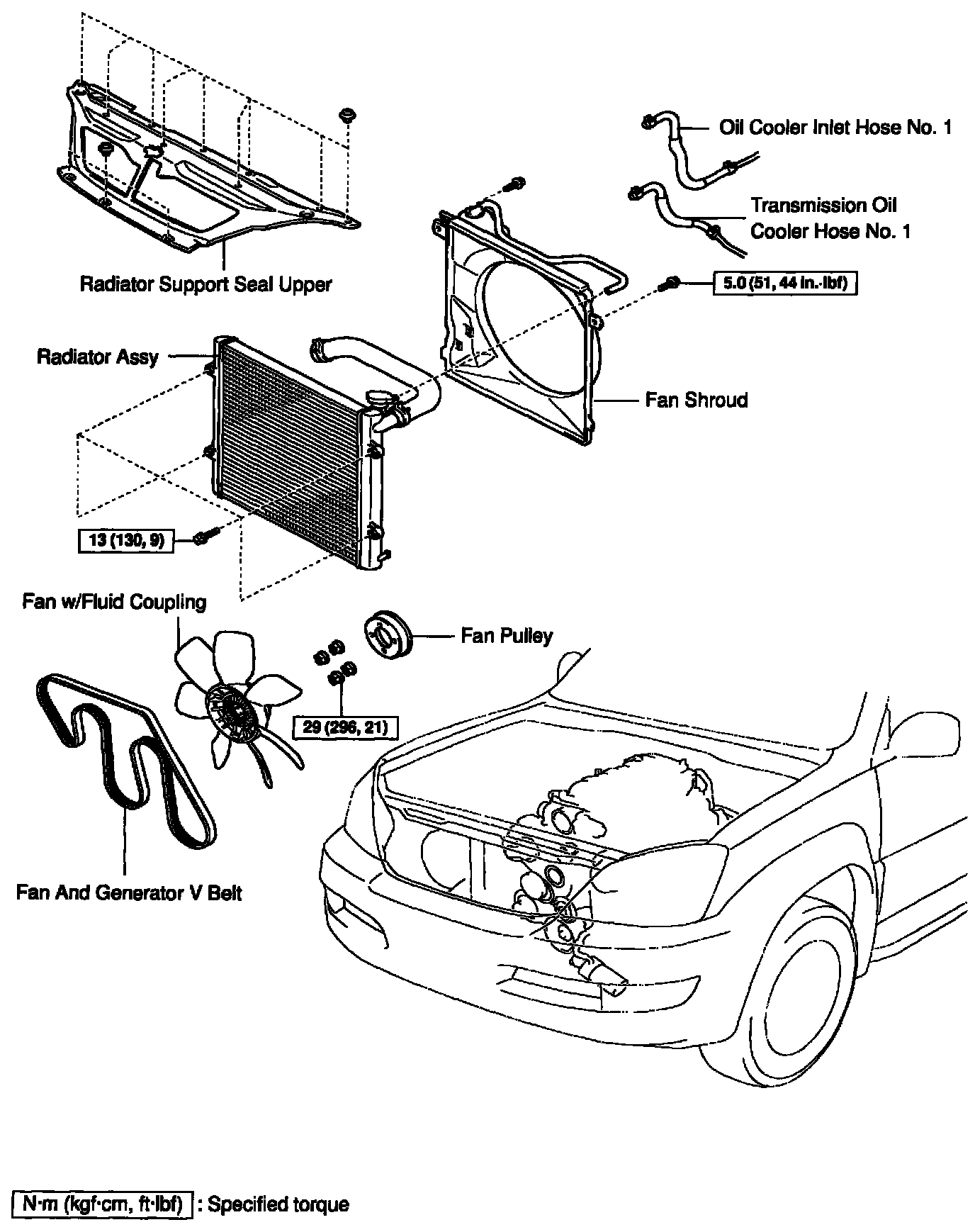

Part 8 Of 10:




Part 9 Of 10:




Part 10 Of 10:





PARTIAL ENGINE ASSY (2UZ-FE) REPLACEMENT W/ RELATED COMPONENTS
