Automatic Transmission System: Operation

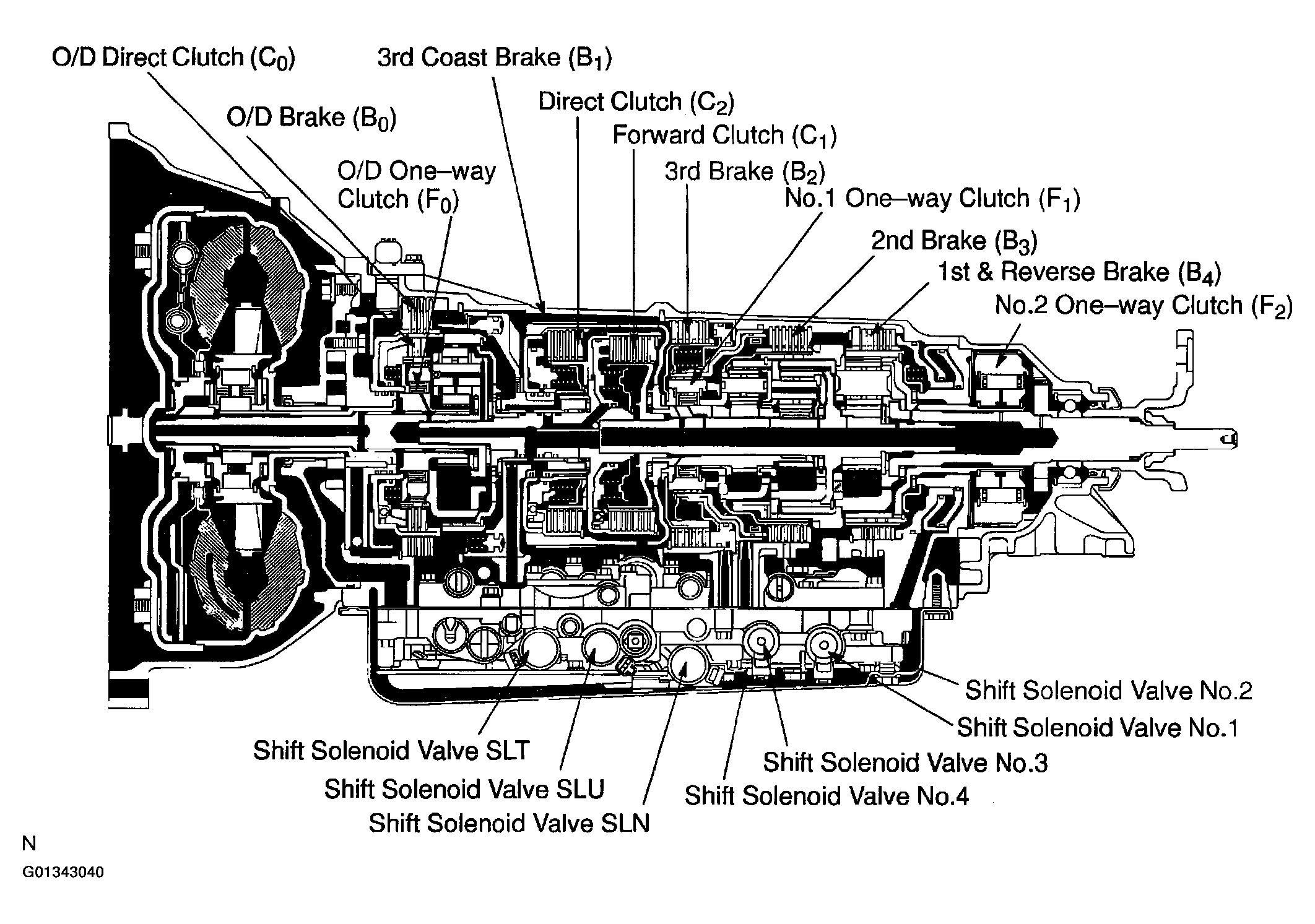

Fig 1: Sectional View Of Automatic Transmission System
G01343040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

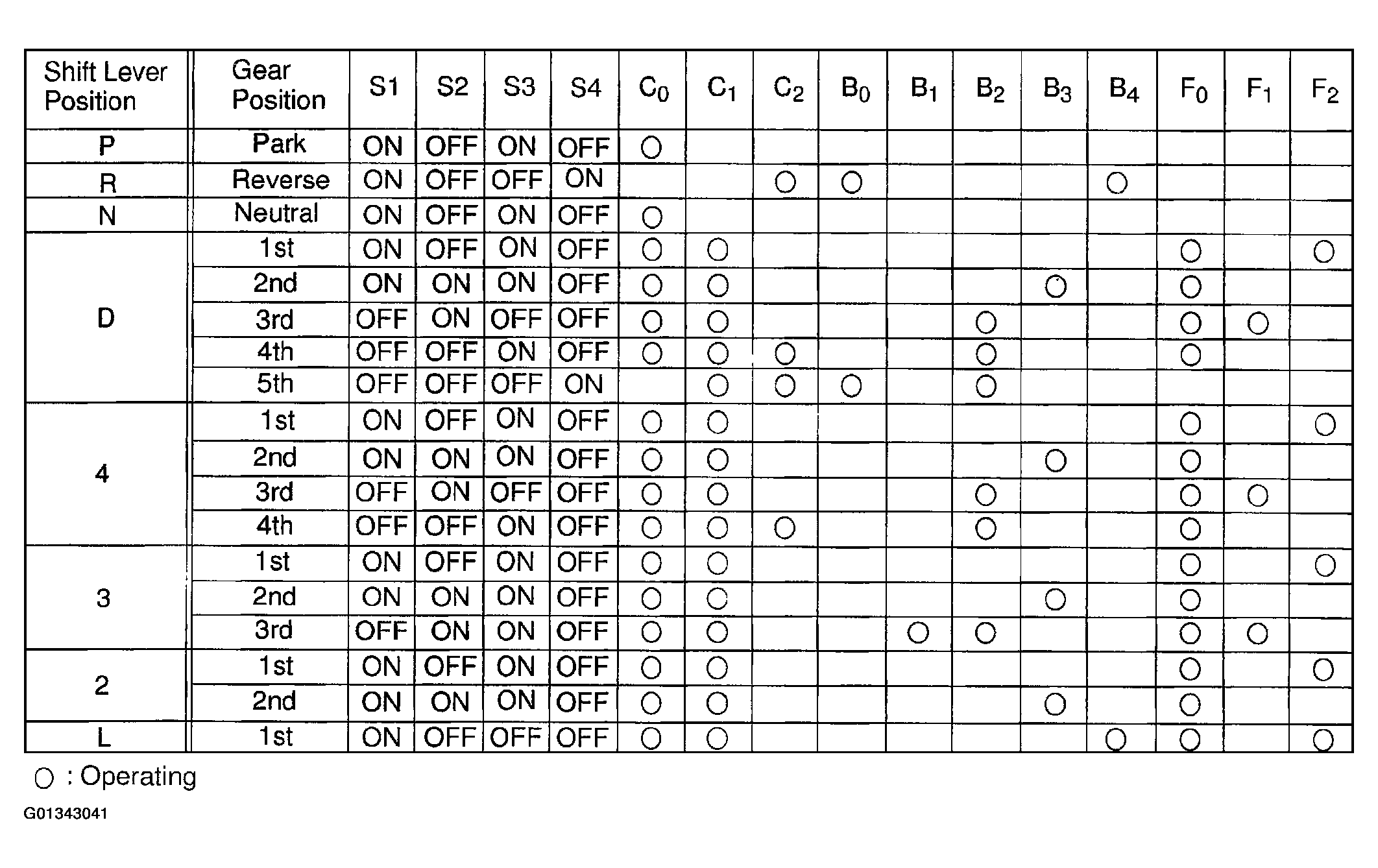

Fig 2: Shift Lever Position Chart
G01343041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
