Window Moves Down Without Being Ordered During The Up Operation

WINDOW MOVES DOWN WITHOUT BEING ORDERED DURING UP OPERATION TROUBLESHOOTING

Trouble	Suspect Area (terminal No.)	Parts name
After the window is fully closed, it starts to move down.	Power window motor limit switch wire harness faulty. Power window motor reset switch is reset. Driver door control ECU LMT terminal (B12)	Driver door control ECU
The window moves down during the up operation.	FLOW CHART "B" Refer to Fig 1	-

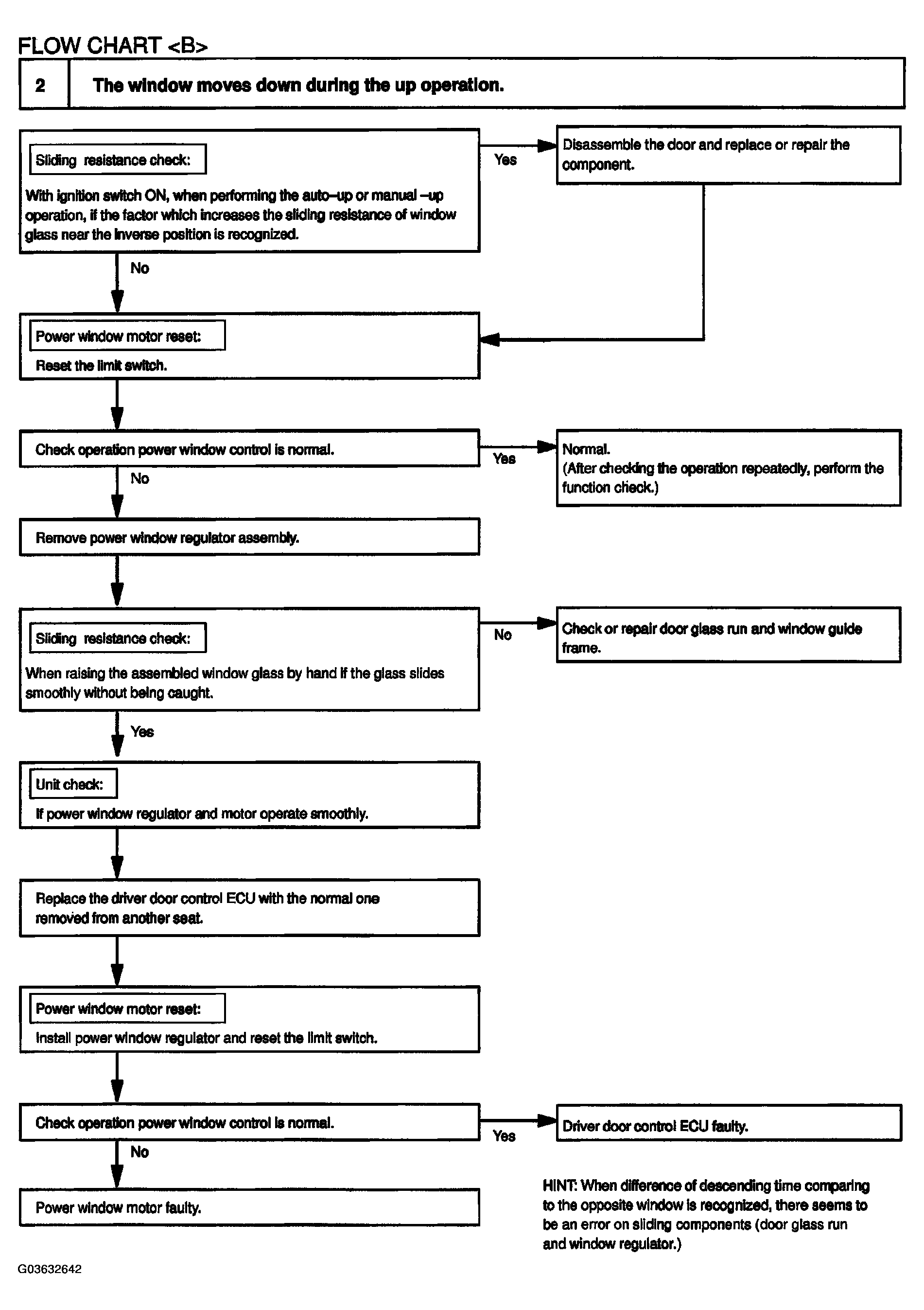

Fig 1: Troubleshooting Flow Chart "B" (Window Moves Down During Up Operation)
