Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Lexus GS 430 and 2004 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

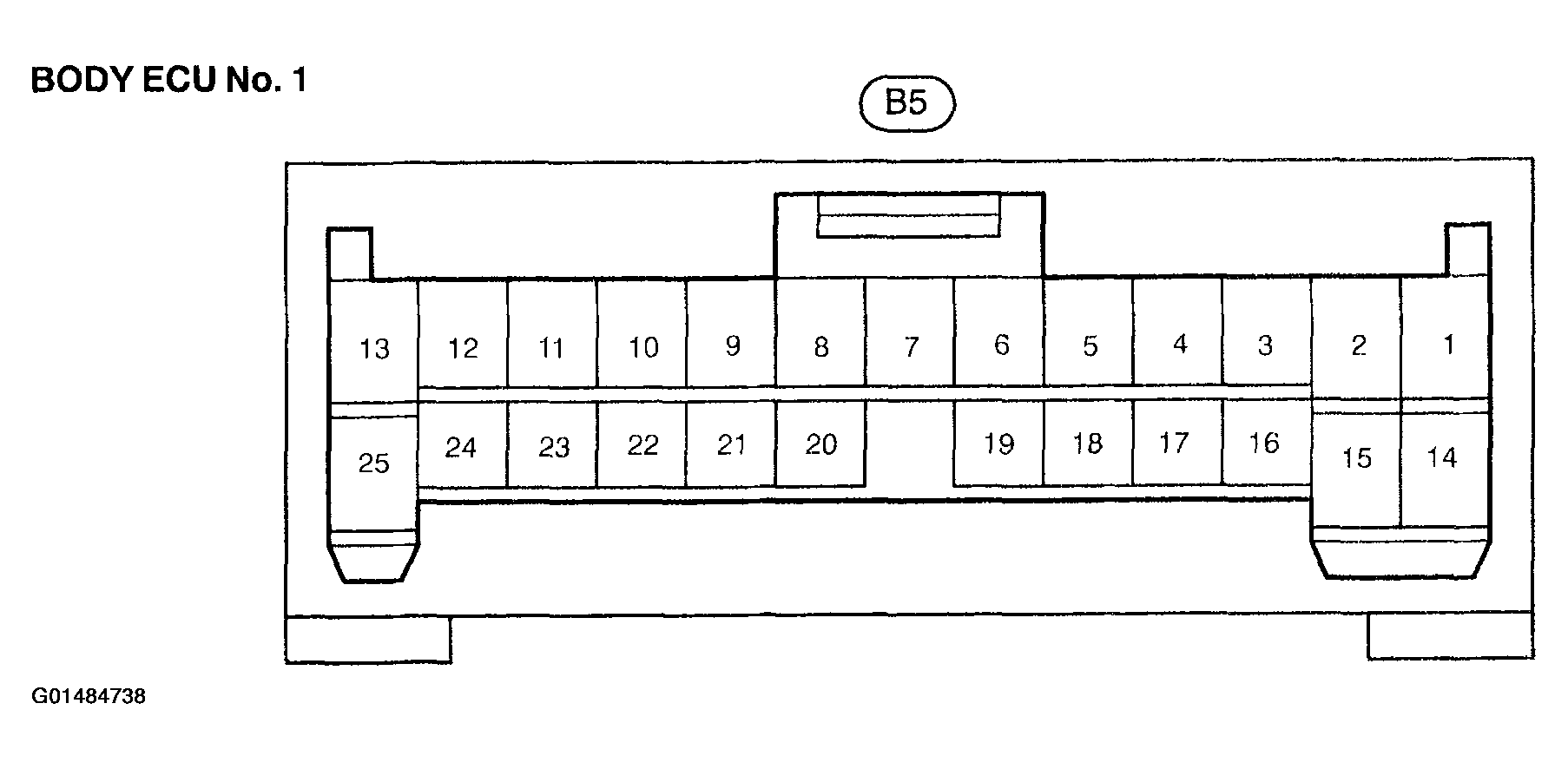

Fig 1: Identifying Terminals Of ECU
G01484738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

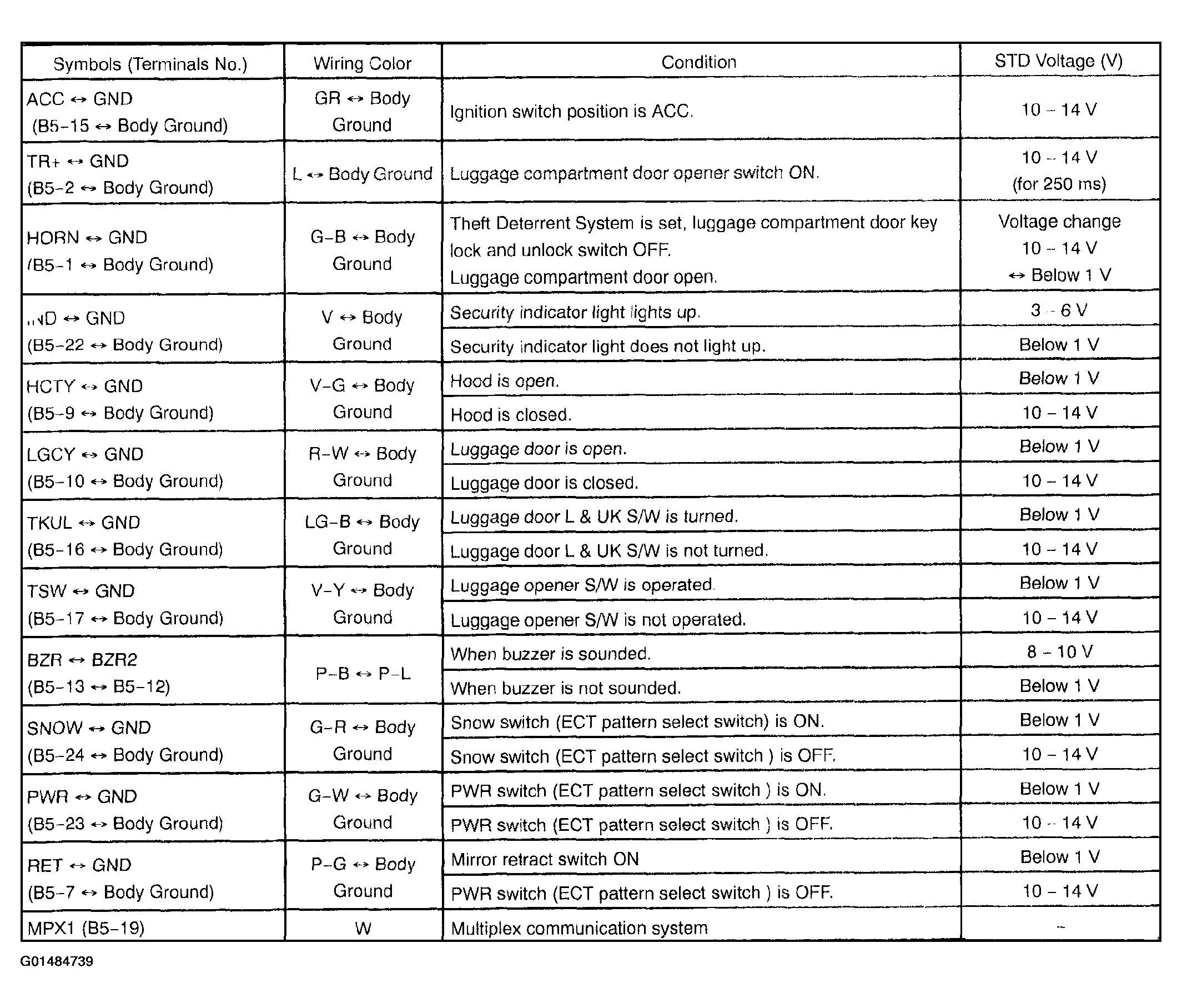

Fig 2: Symbols Specification
G01484739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
